Automatic Transaxle - U151F
›
Automatic Transaxle System
›
Transmission Control Switch Circuit
›
Wiring Diagram
Transmission Control Switch Circuit: Wiring Diagram

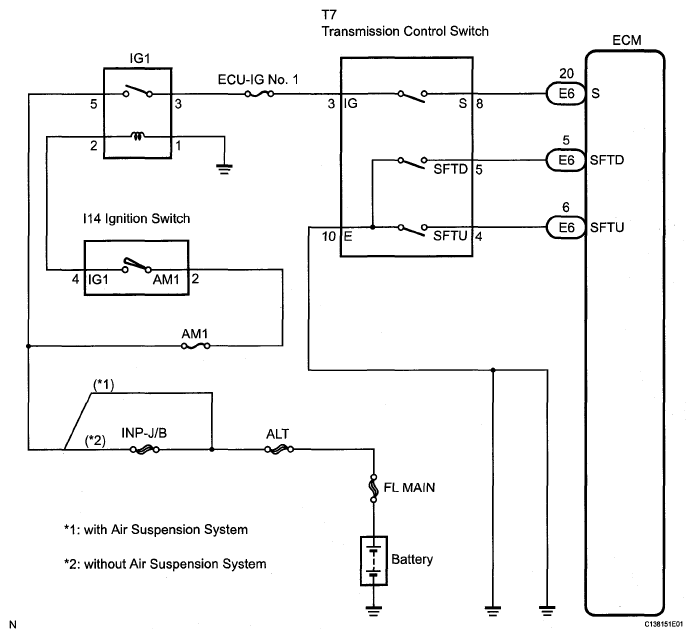

Fig 1: Transmission Control Switch - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
