OEM System Circuits: Charging: Notes

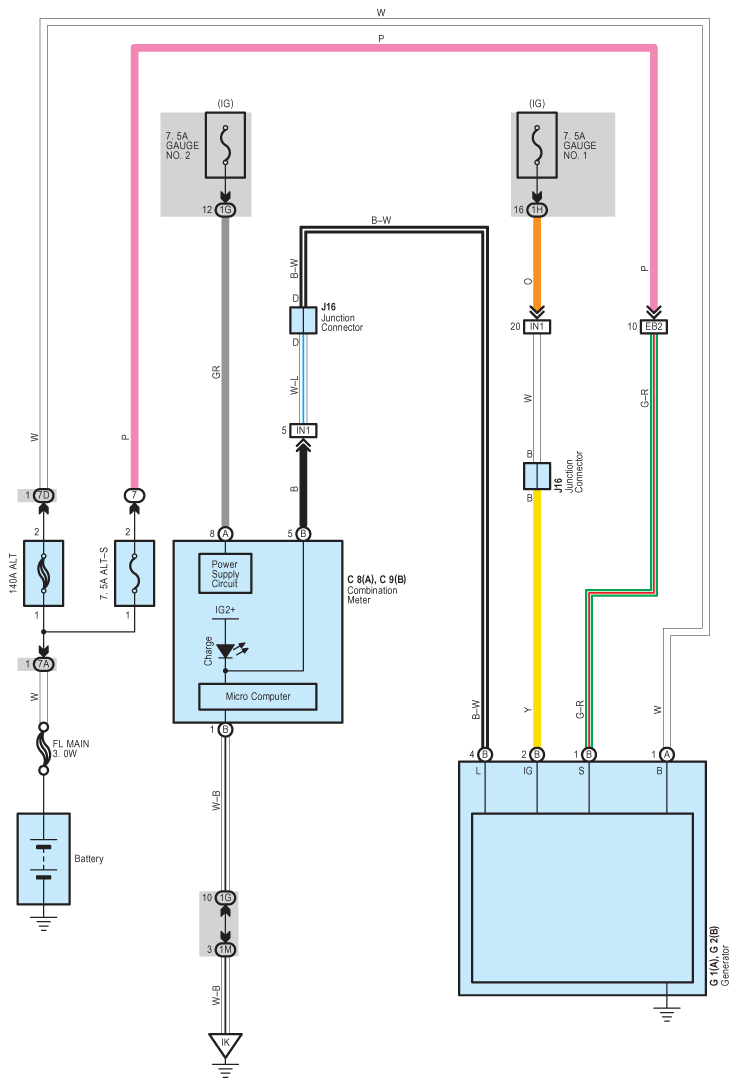

Fig 1: Charging - Circuit Diagram

G08921864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
