Radiator Fan: Notes

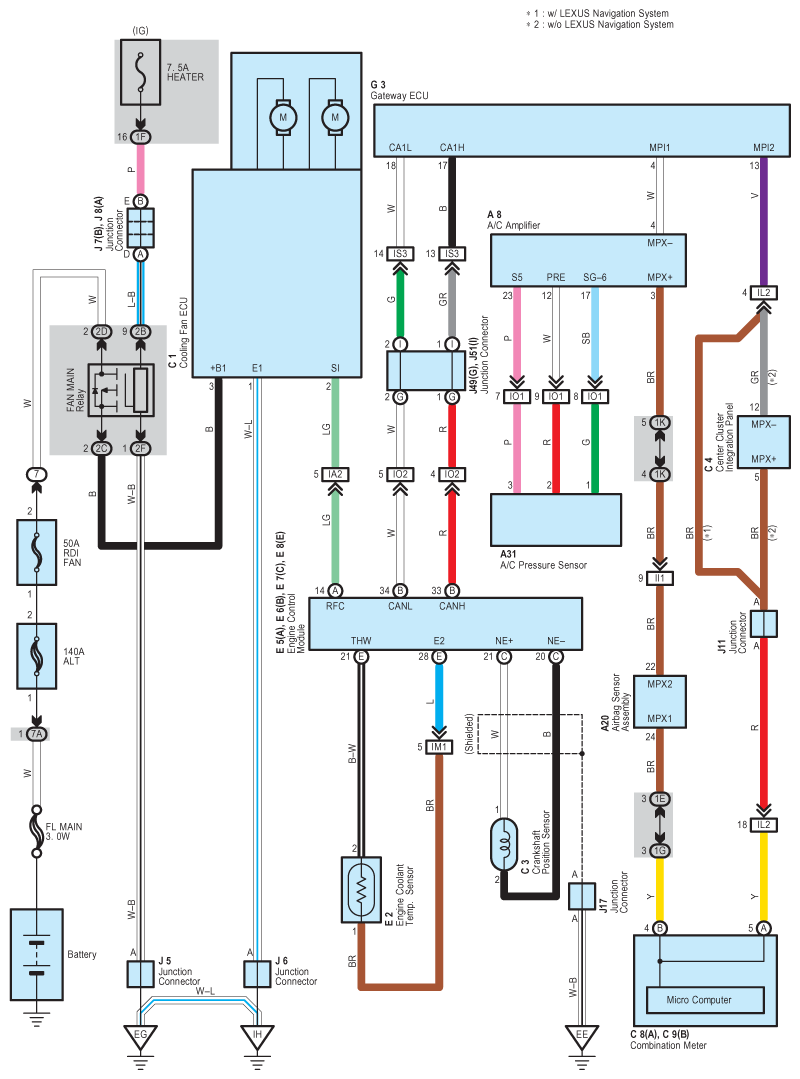

Fig 1: Radiator Fan - Circuit Diagram

G08922101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
