Remote Control Mirror without Memory
›
Notes
Remote Control Mirror without Memory: Notes

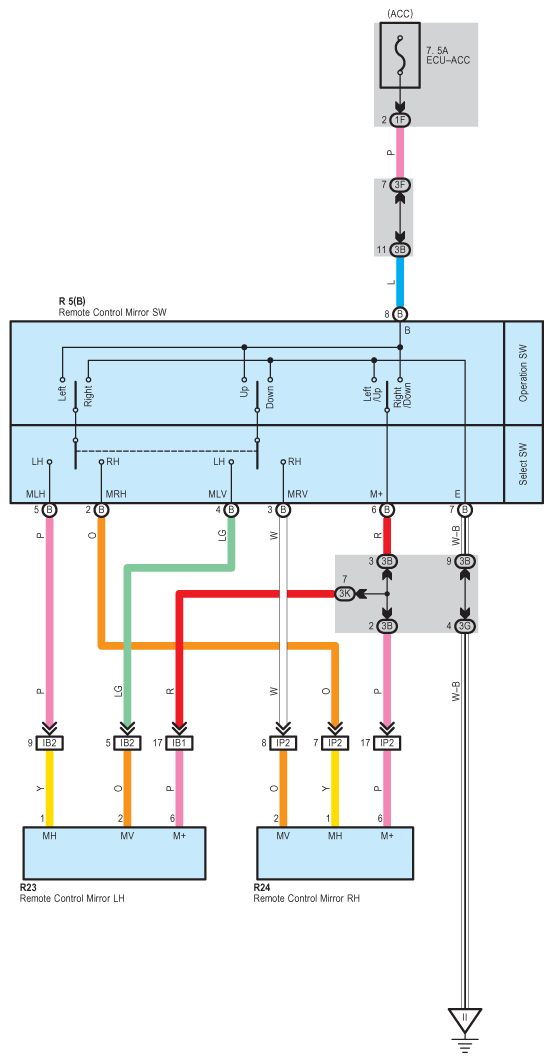

Fig 1: Remote Control Mirror Without Memory - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
