System Diagram

The configuration of the electronic control system in the U151E automatic transaxles is as shown in the following chart.

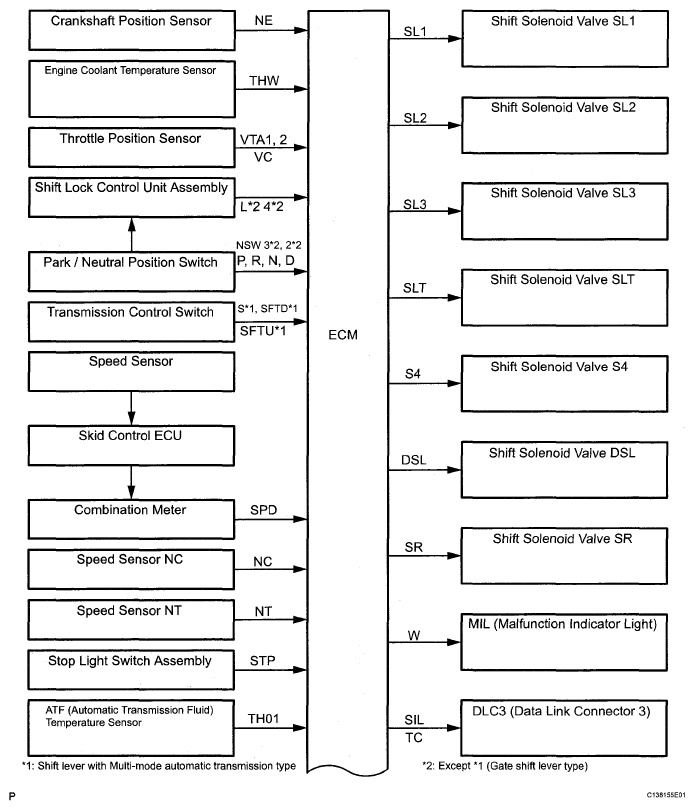

Fig 1: Automatic Transaxle System Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Automatic Transaxle System Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
