Automatic Transaxle - U151E
›
Forward Clutch
›
Components
Forward Clutch: Components

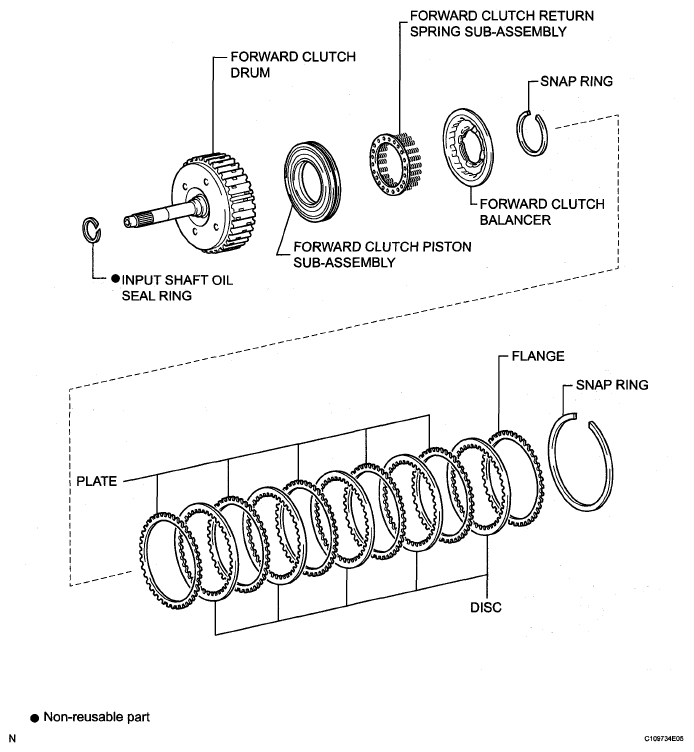

Fig 1: Identifying Forward Clutch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
