Second Brake Piston: Components

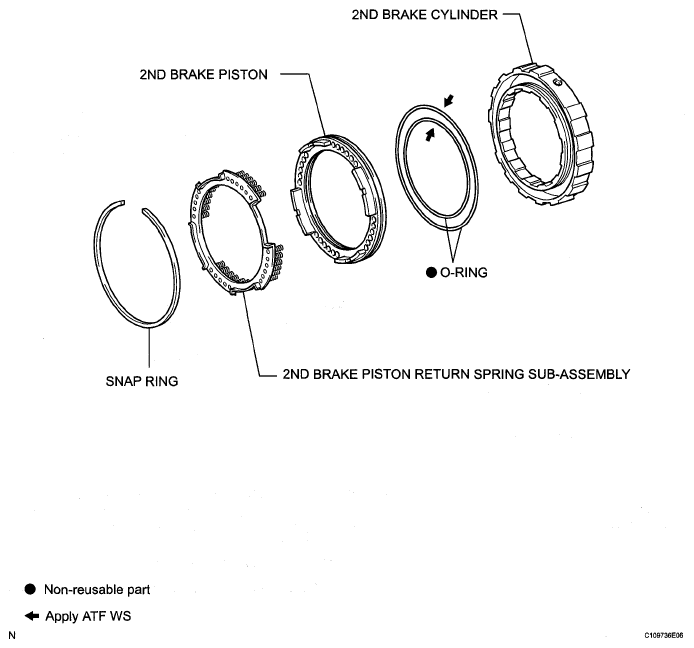

Fig 1: Identifying Second Brake Piston Components

G05269138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
