Home › Lexus › 2007 › RX 350 FWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle - U151E › Speed Sensor › Components

Speed Sensor: Components

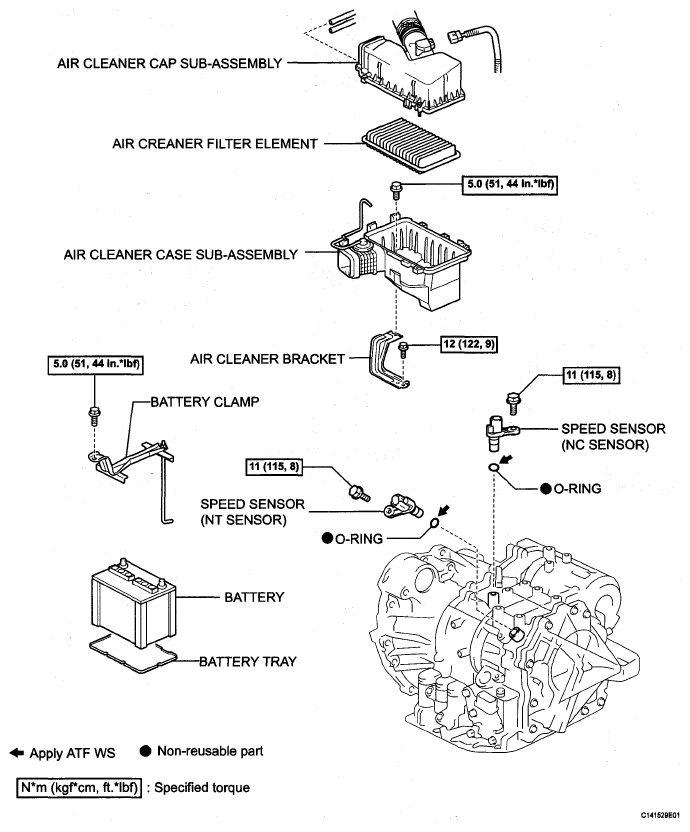

Fig 1: Speed Sensor Replacement Components With Torque Specifications
G05271818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
