Home › Lexus › 2007 › RX 350 FWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle - U151E › UNDERDRIVE Clutch › Components

UNDERDRIVE Clutch: Components

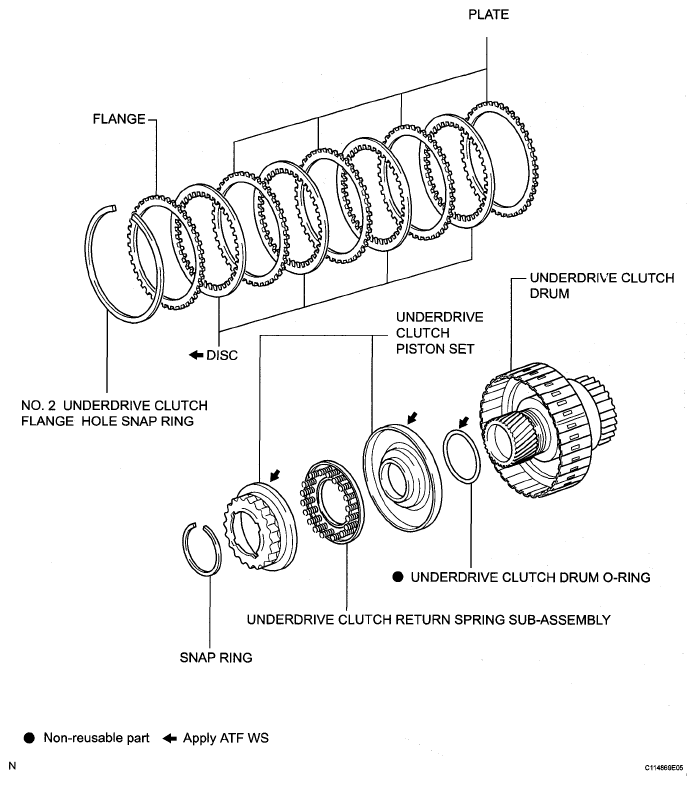

Fig 1: Identifying Underdrive Clutch Components

G05272344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
