Power Door Lock Control System
›
System Diagram
System Diagram

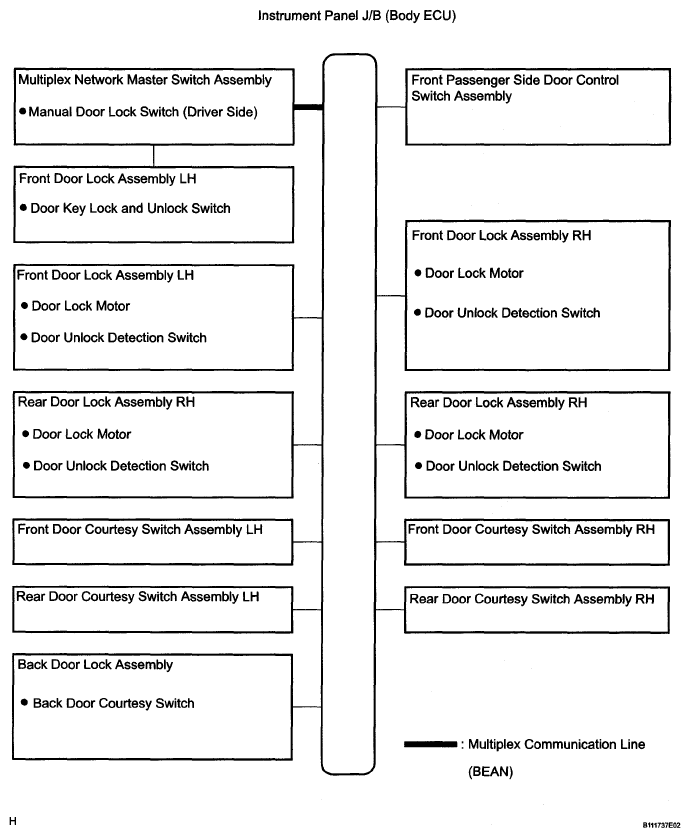

Fig 1: Power Door Lock Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
