Rear Quarter Window Class: Components

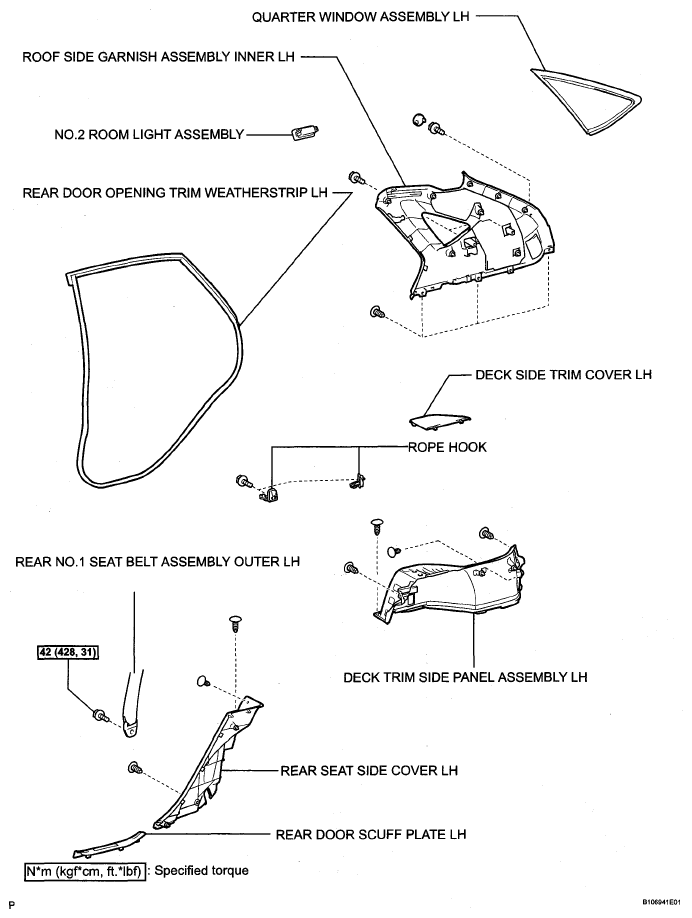

Fig 1: Identifying Rear Quarter Window Class Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Quarter Window Class Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
