REAR SPEED SENSOR (for 4WD)
›
Components
REAR SPEED SENSOR (for 4WD): Components

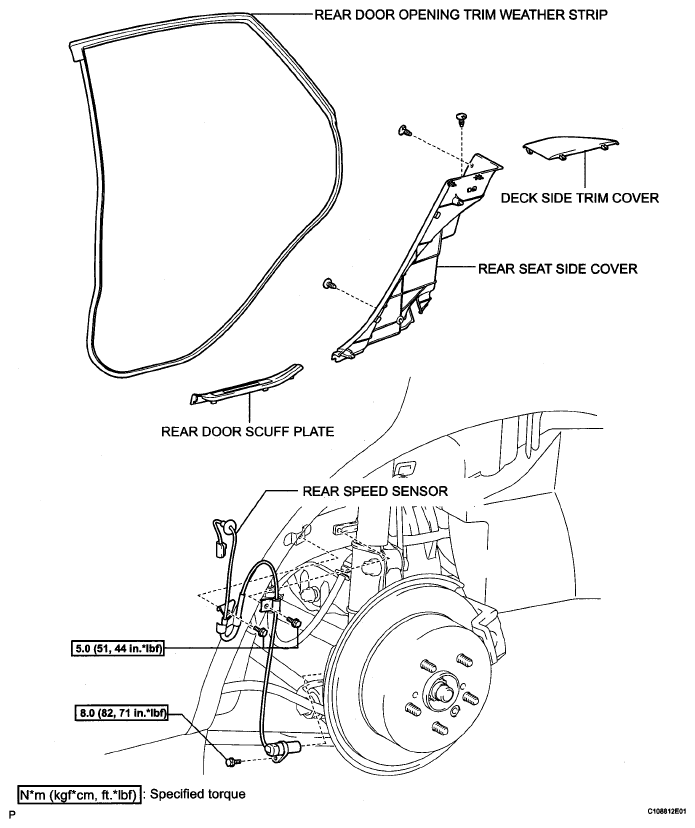

Fig 1: Brake Control Rear Speed Sensor Replacement Components With Torque Specifications (For 4WD)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
