Hybrid Vehicle Immobilizer System: Notes

Fig 1: Hybrid Vehicle Immobilizer System - Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

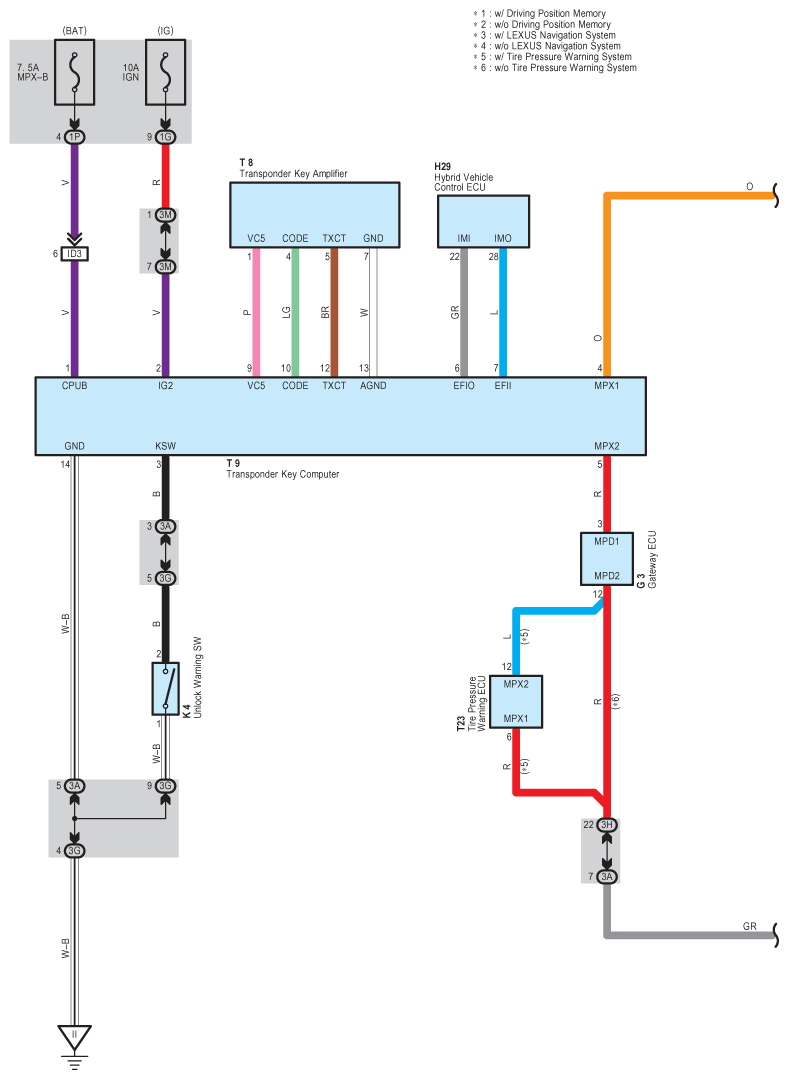

Fig 2: Hybrid Vehicle Immobilizer System - Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
