Rear Axle Shaft: Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

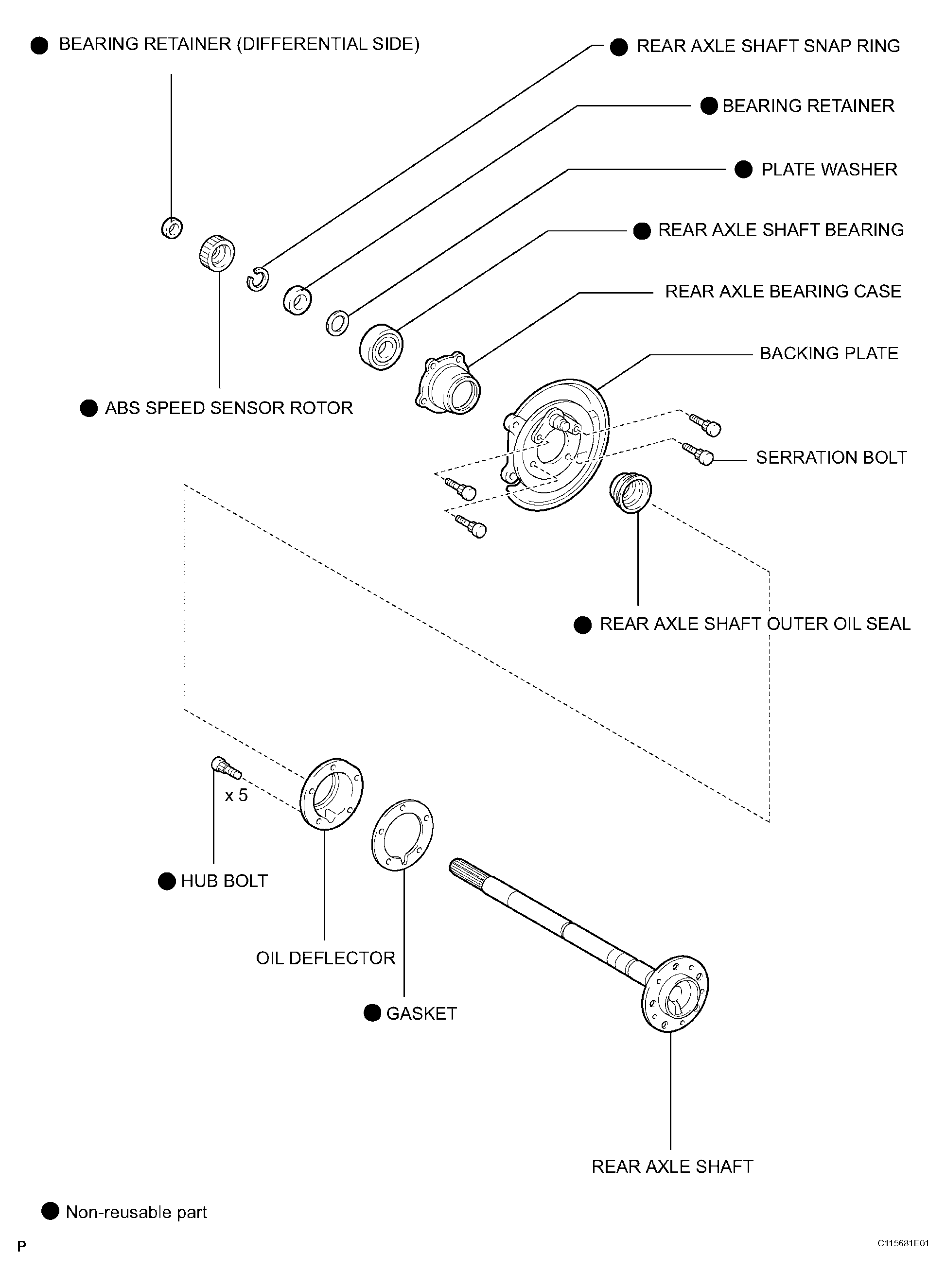

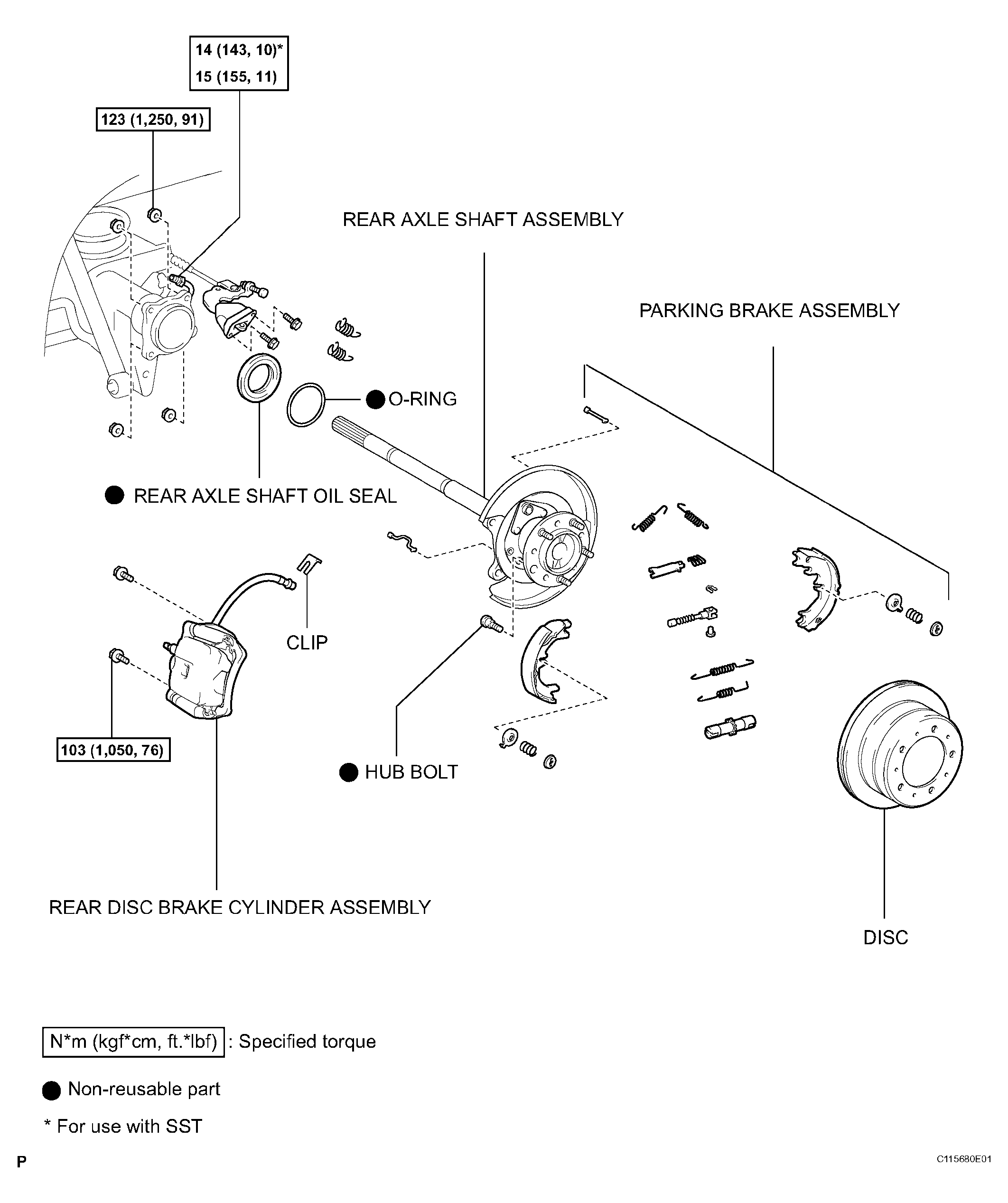

Fig 1: Exploded View Of Rear Axle Shaft & Torque Specifications (1 Of 2)
