Section 120 (Lighting System)
›
Turn Signal Light Switch
›
Components
Turn Signal Light Switch: Components
WARNING:
This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

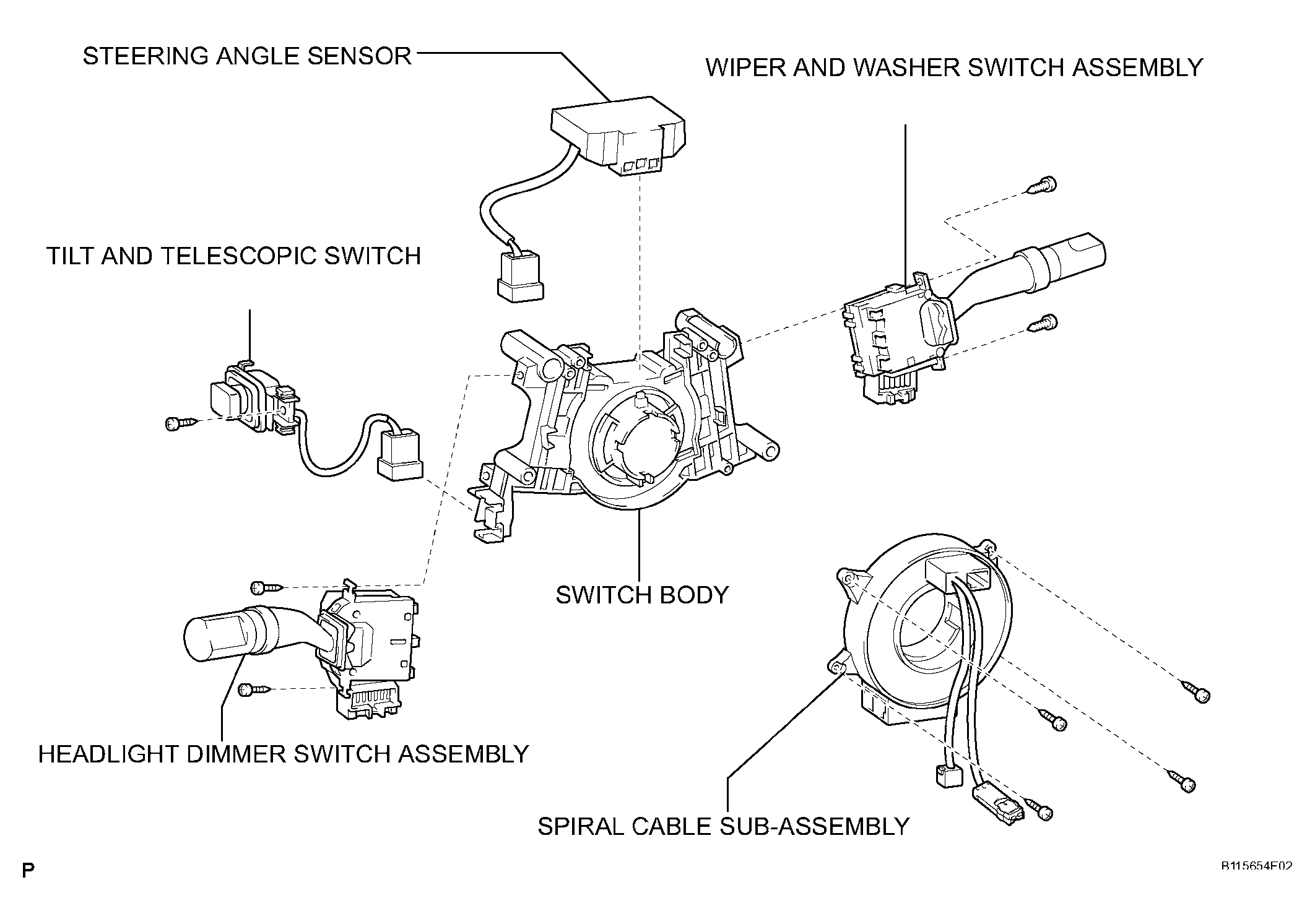

Fig 1: Identifying Turn Signal Light Switch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
