Section 141 (Meter)
›
Combination Meter
›
Components
Combination Meter: Components
WARNING:
This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

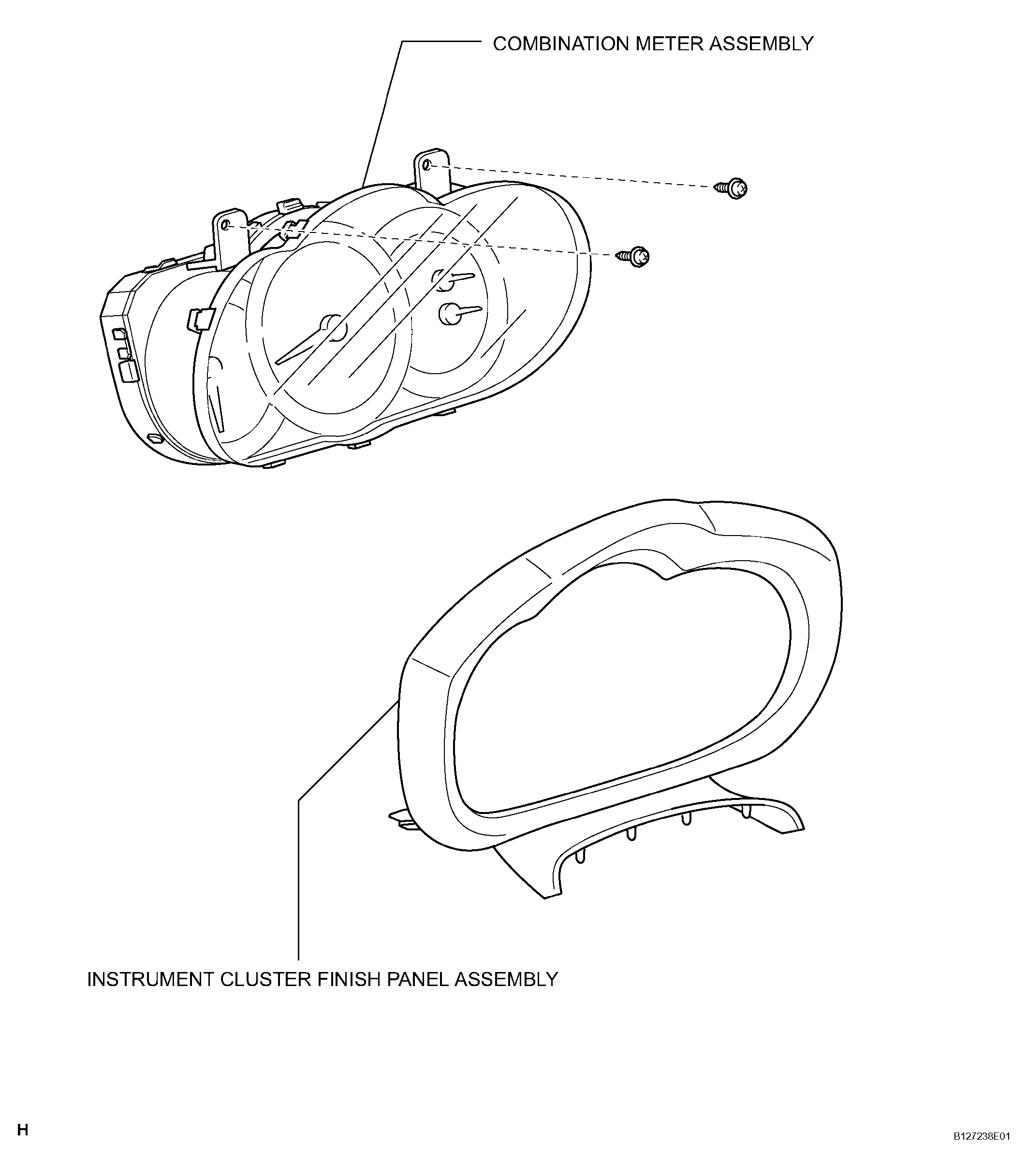

Fig 1: Identifying Combination Meter Assembly Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
