Combination Meter: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
1. Using a screwdriver, detach the 4 clips, 6 claws and remove the instrument cluster finish panel.
  HINT:

  Tape the screwdriver tip before use.

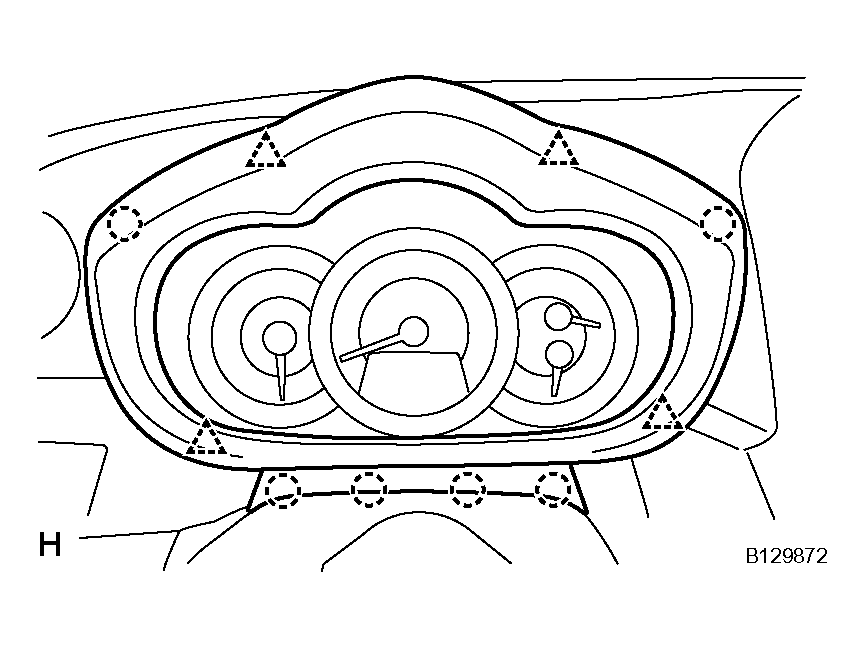

  Fig 1: Identifying Instrument Cluster Finish Panel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSEMBLY
1. Remove the 2 screws.
2. Pull the combination meter as indicated by the arrow in the illustration to detach the 2 clips.
3. Disconnect the connector and remove the combination meter.

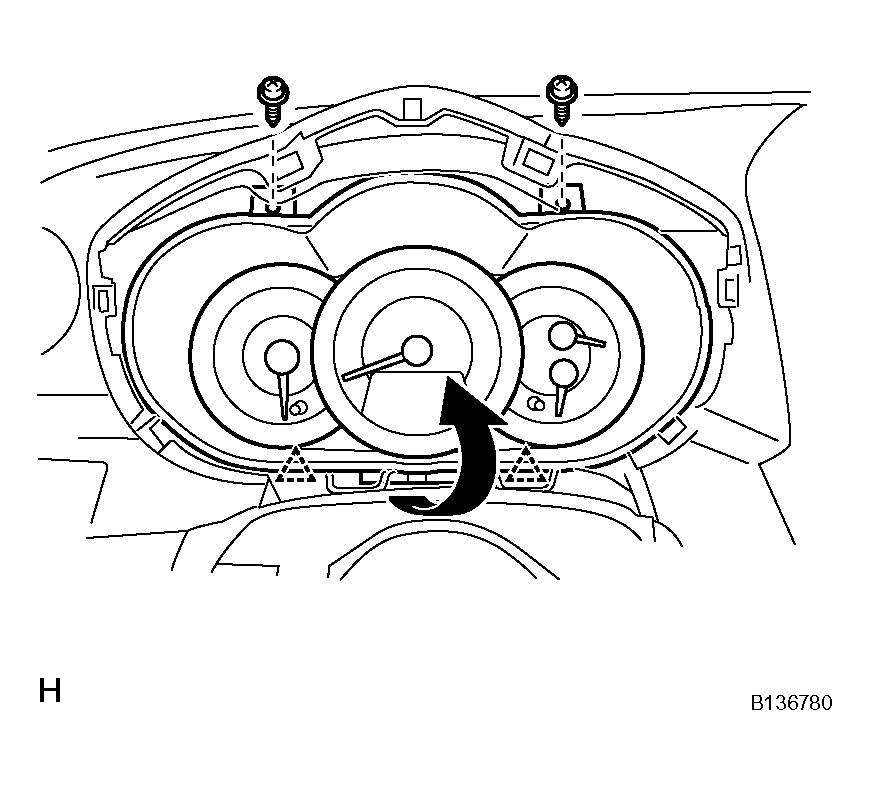

  Fig 2: Removing Combination Meter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
