Fuel Lid Lock Control: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

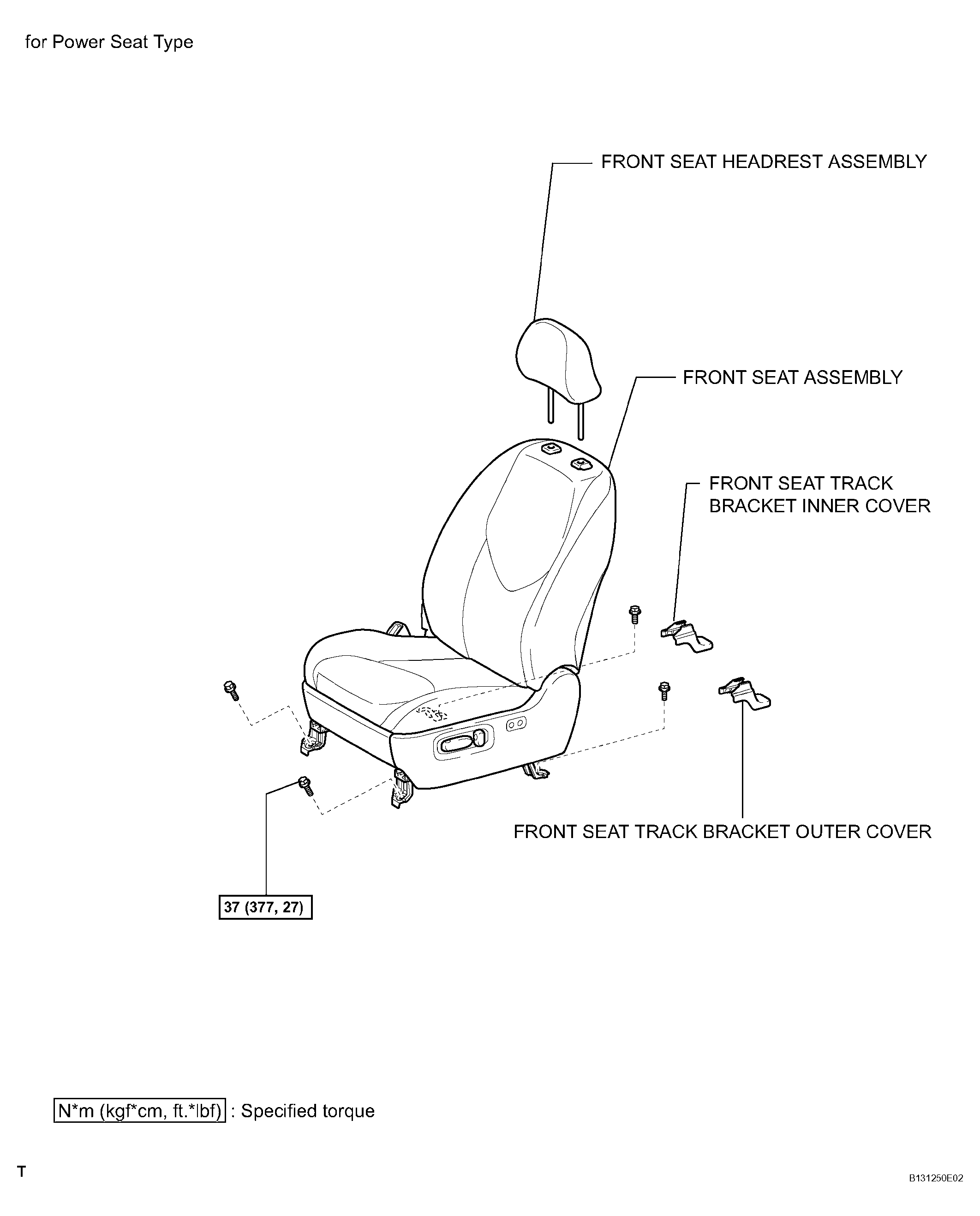

Fig 1: Fuel Lid Lock Control Replacement Components With Torque Specifications (1 Of 14)

G04492520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

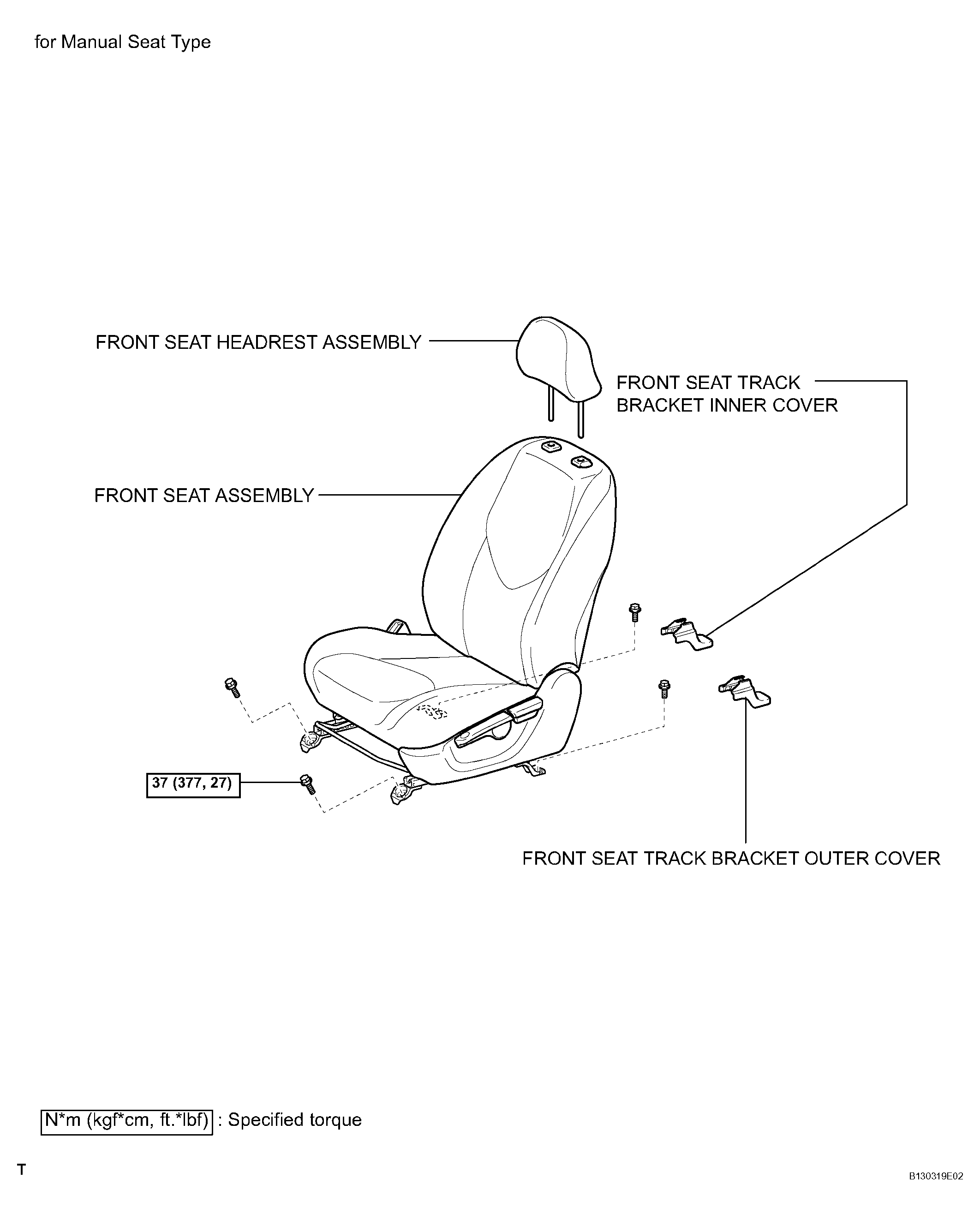

Fig 2: Fuel Lid Lock Control Replacement Components With Torque Specifications (2 Of 14)

G04492521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

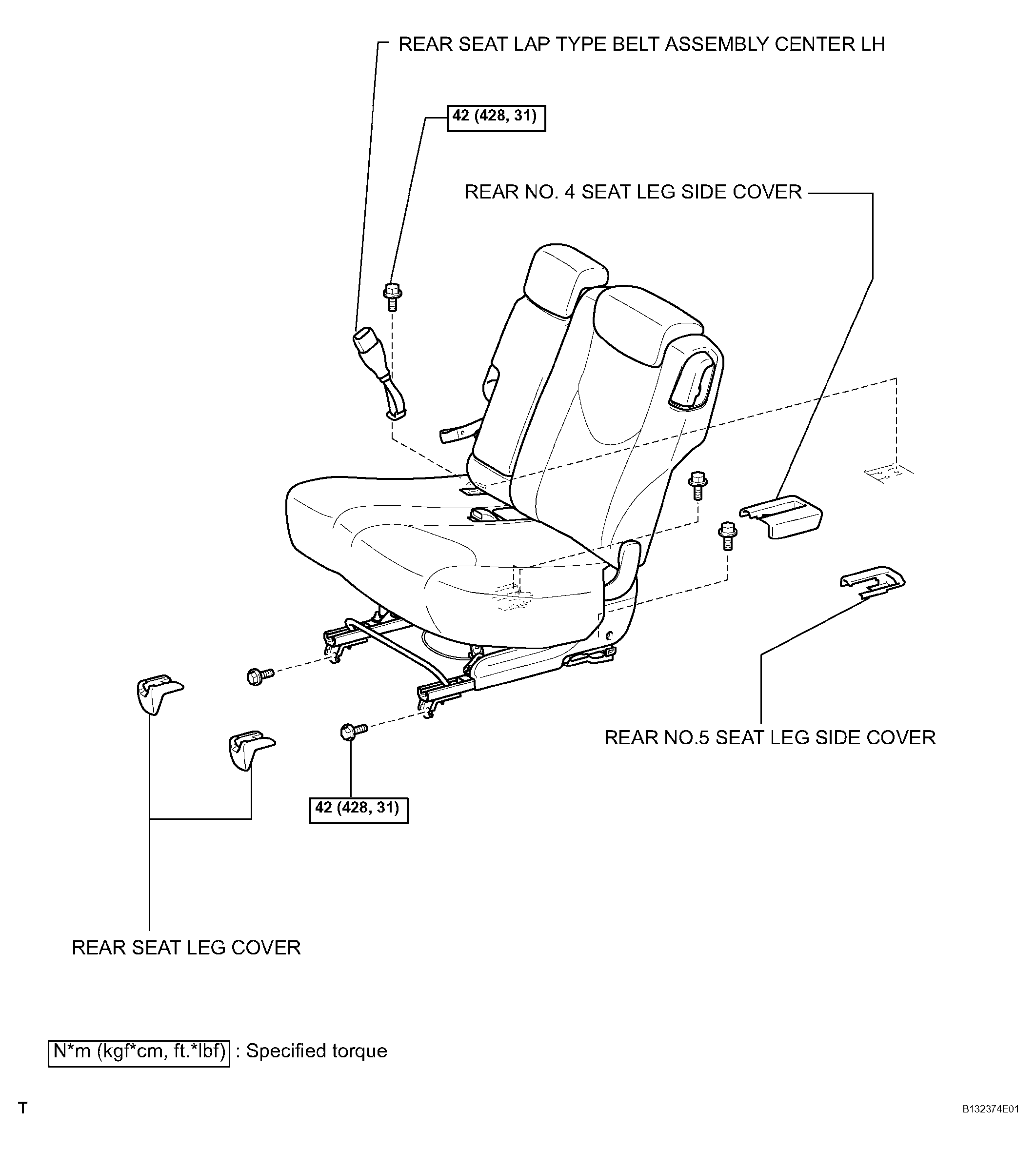

Fig 3: Fuel Lid Lock Control Replacement Components With Torque Specifications (3 Of 14)

G04492522

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

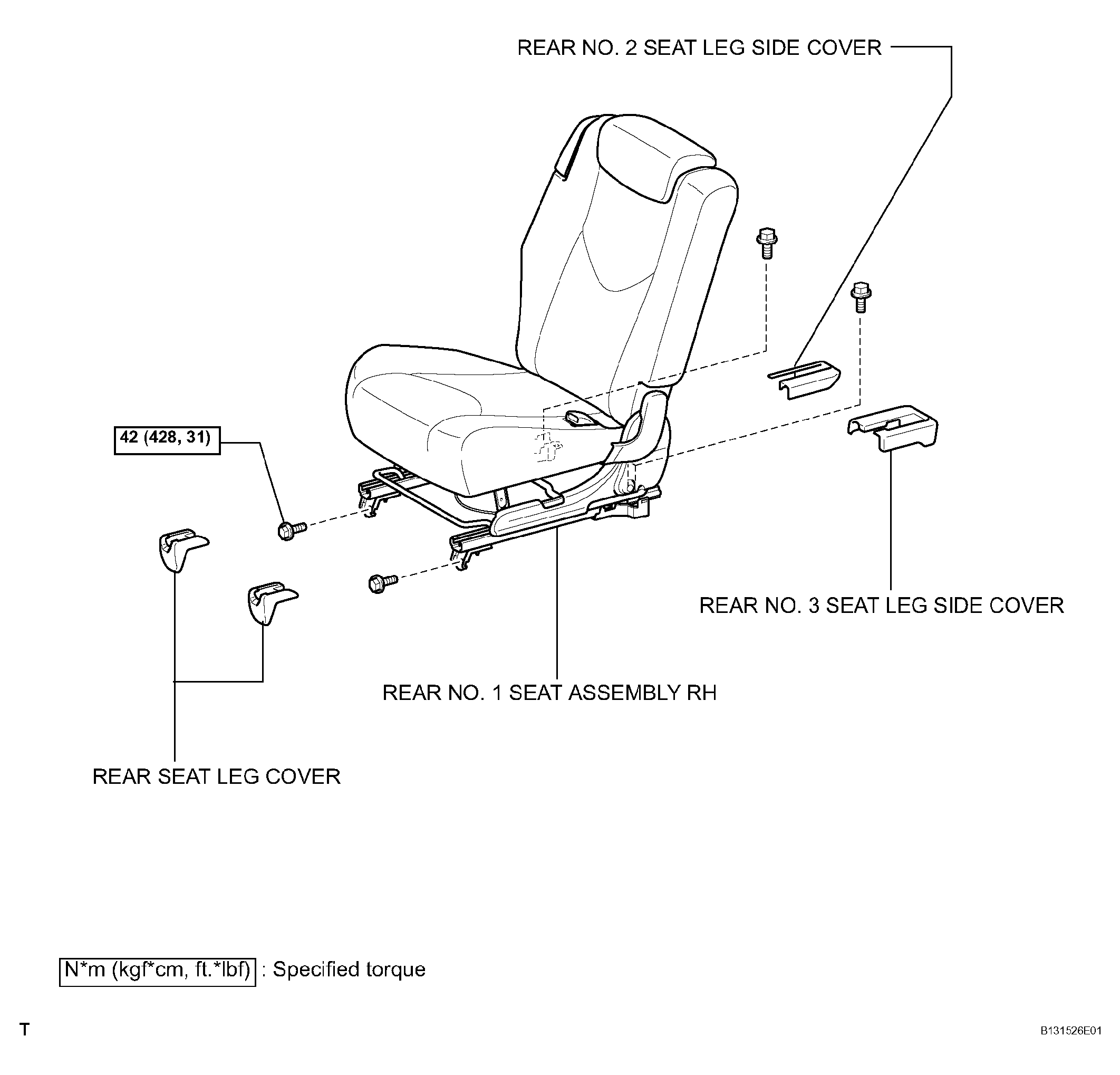

Fig 4: Fuel Lid Lock Control Replacement Components With Torque Specifications (4 Of 14)

G04492523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

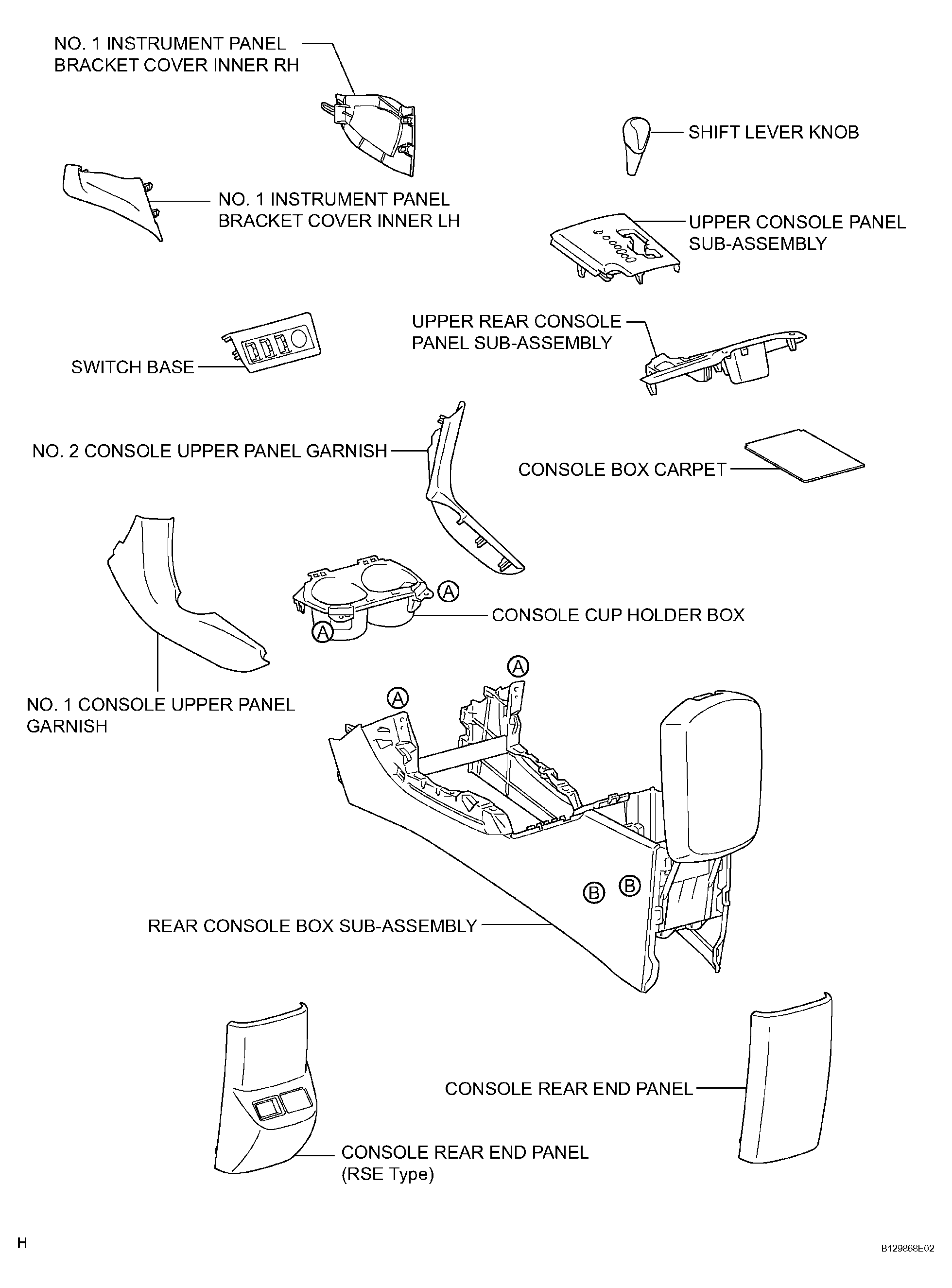

Fig 5: Identifying Fuel Lid Lock Control Components (5 Of 14)

G04492524

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

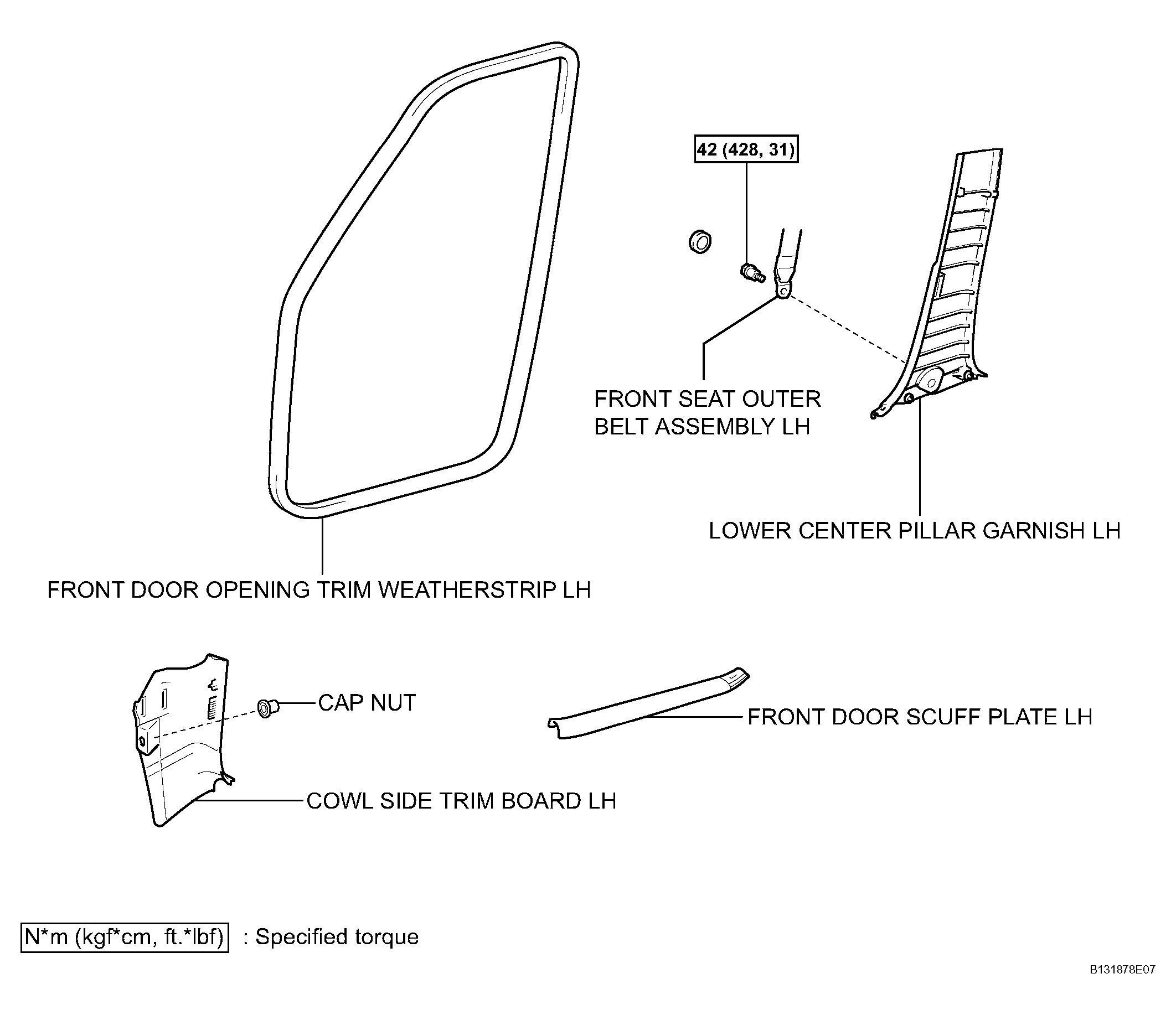

Fig 6: Fuel Lid Lock Control Replacement Components With Torque Specifications (6 Of 14)

G04492525

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

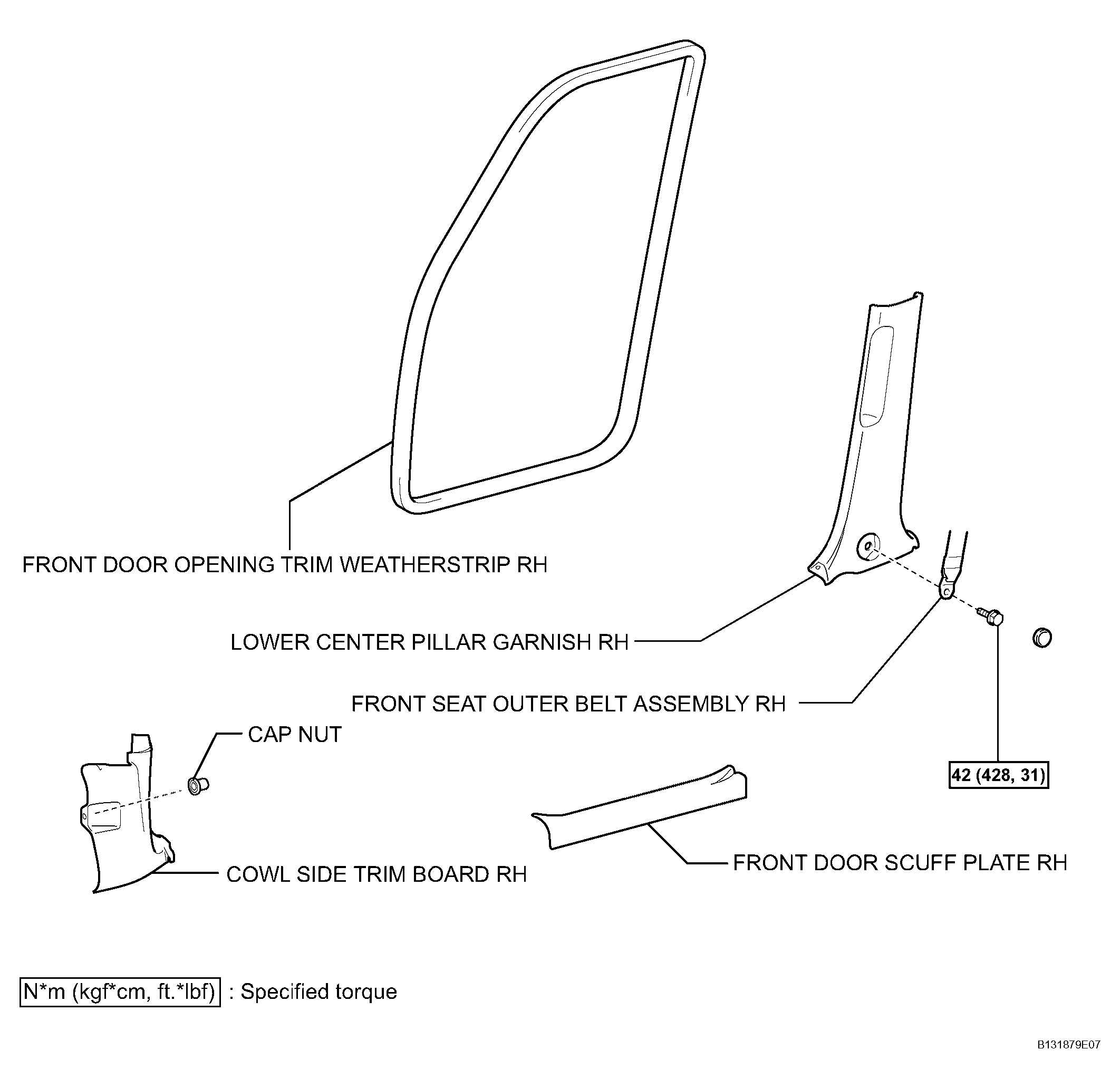

Fig 7: Fuel Lid Lock Control Replacement Components With Torque Specifications (7 Of 14)

G04492526

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

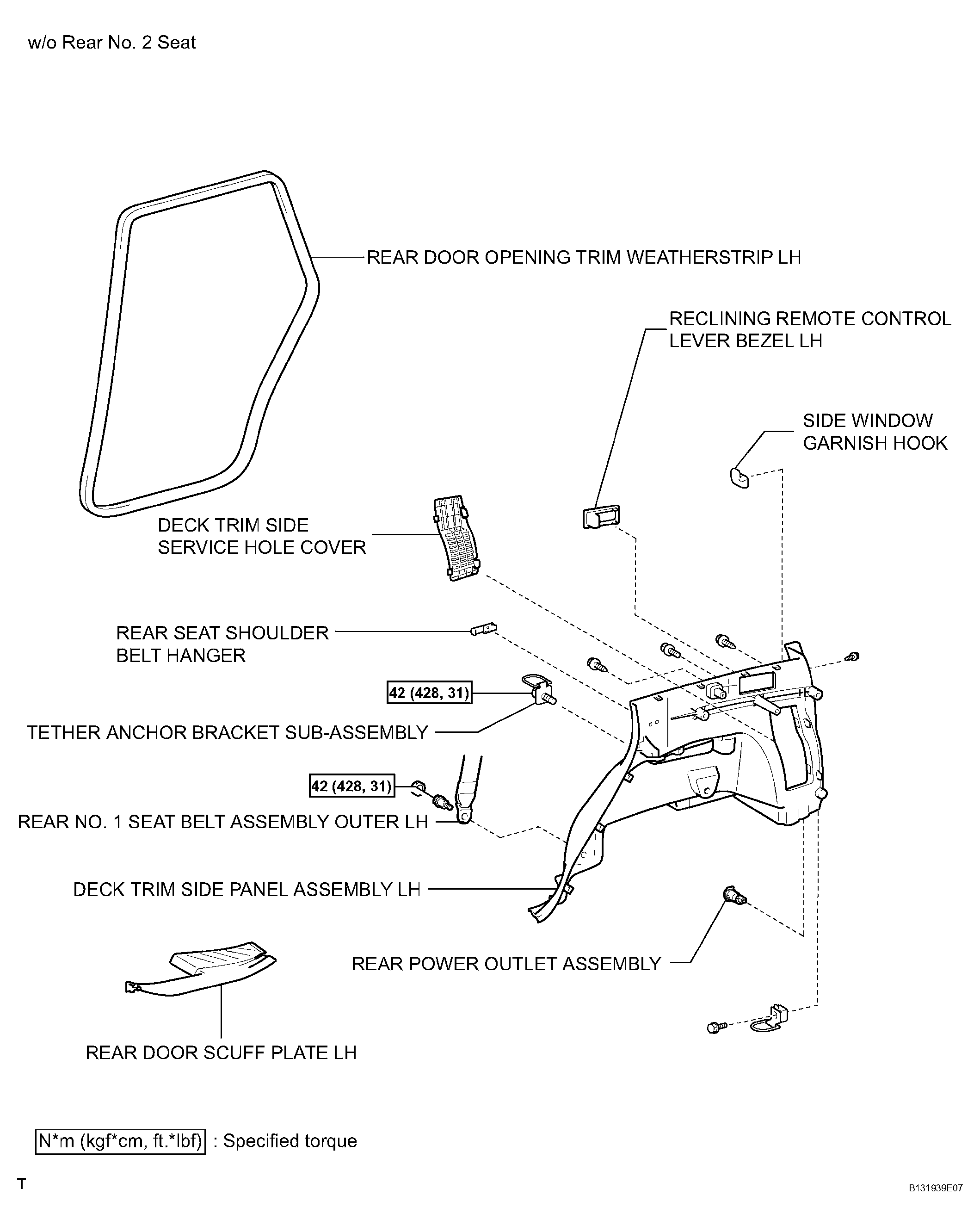

Fig 8: Fuel Lid Lock Control Replacement Components With Torque Specifications (8 Of 14)

G04492527

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

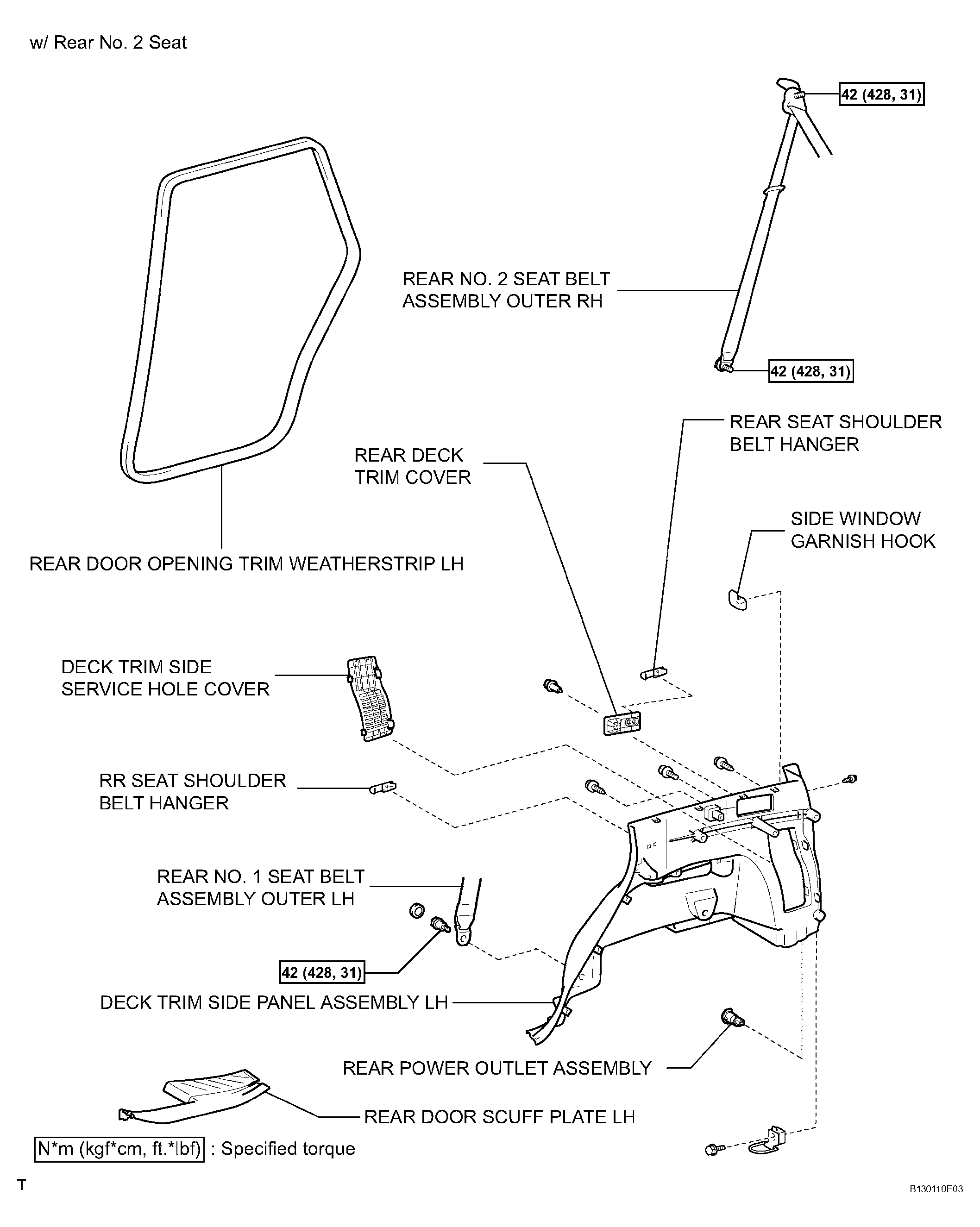

Fig 9: Fuel Lid Lock Control Replacement Components With Torque Specifications (9 Of 14)

G04492528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

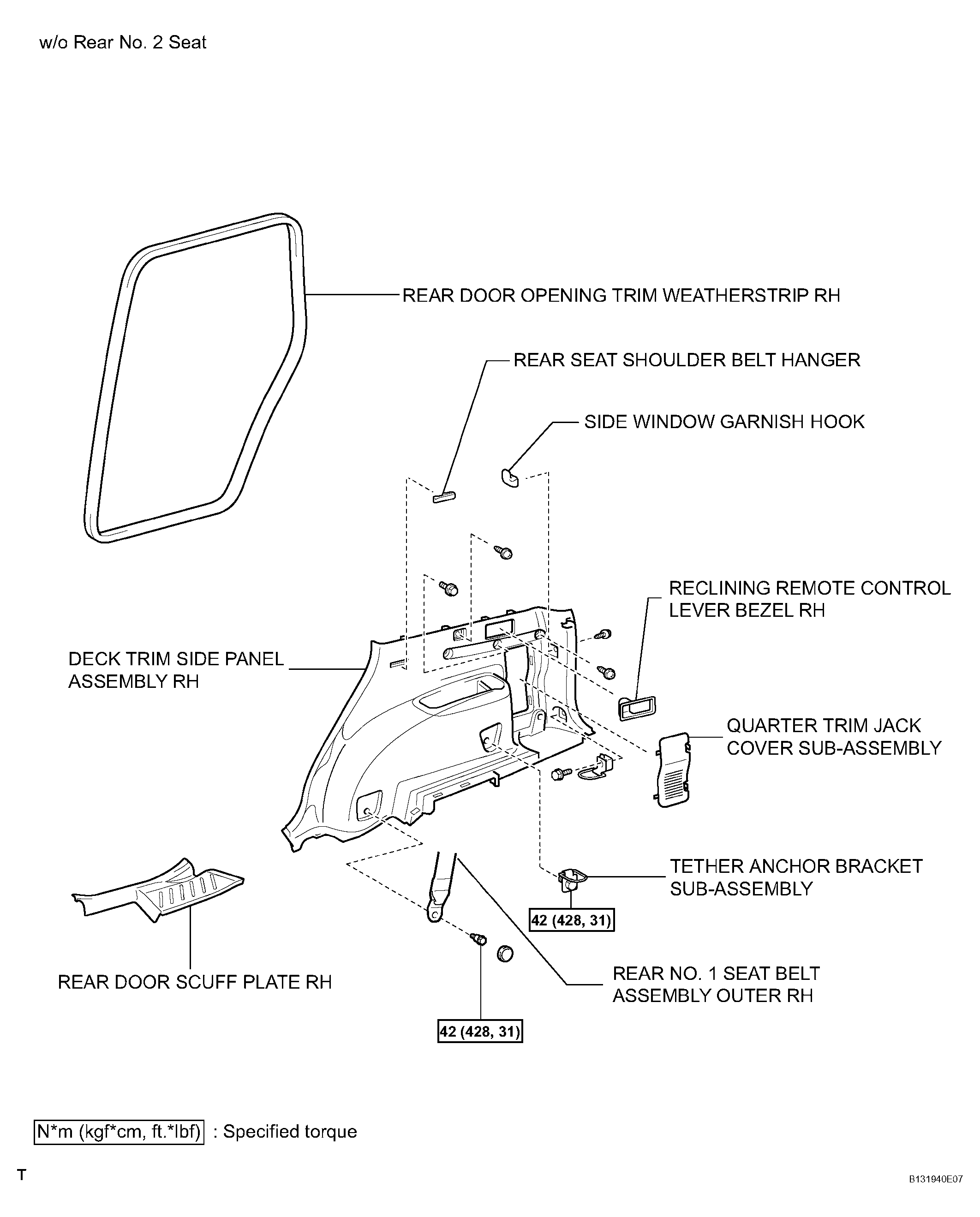

Fig 10: Fuel Lid Lock Control Replacement Components With Torque Specifications (10 Of 14)

G04492529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

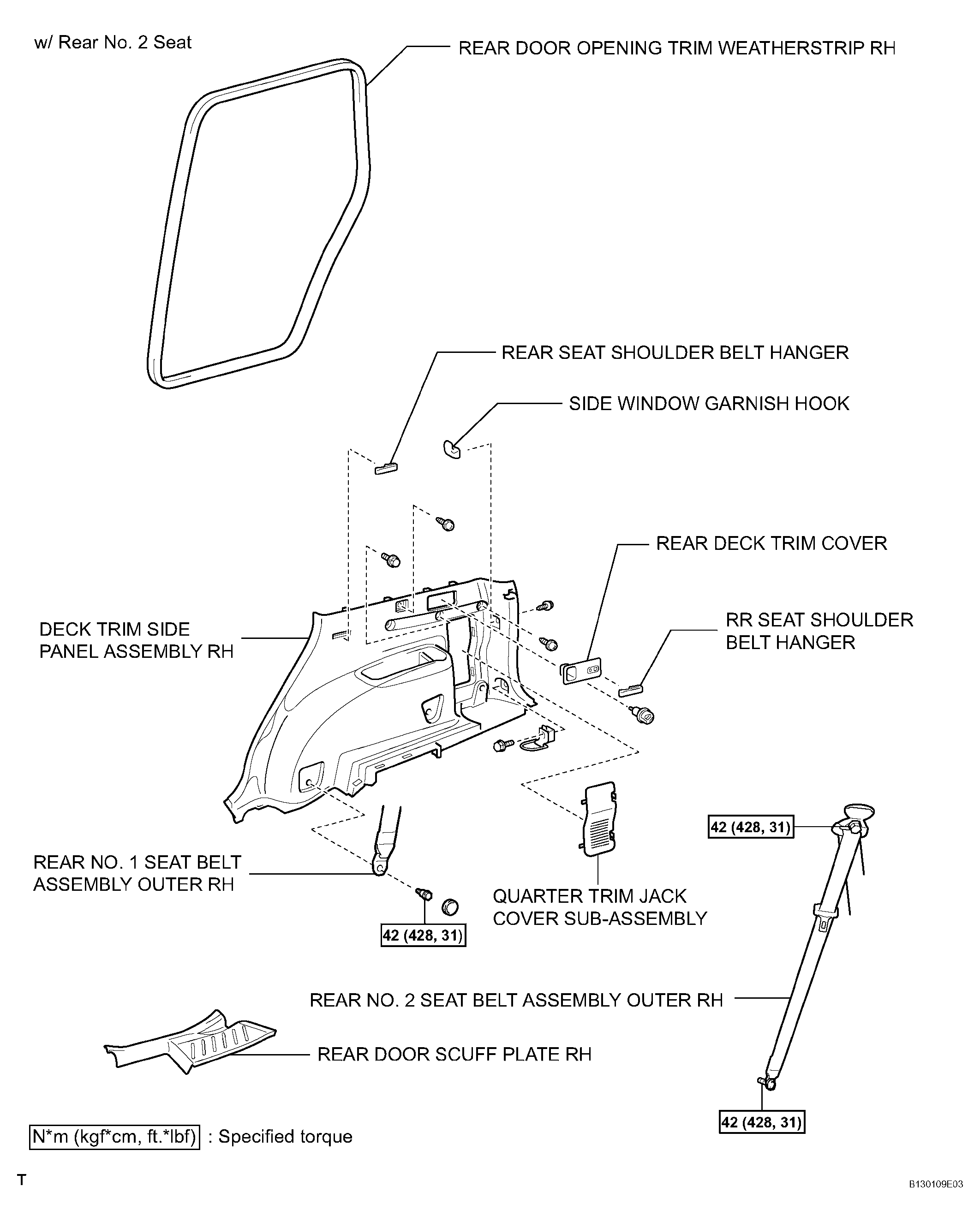

Fig 11: Fuel Lid Lock Control Replacement Components With Torque Specifications (11 Of 14)

G04492530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

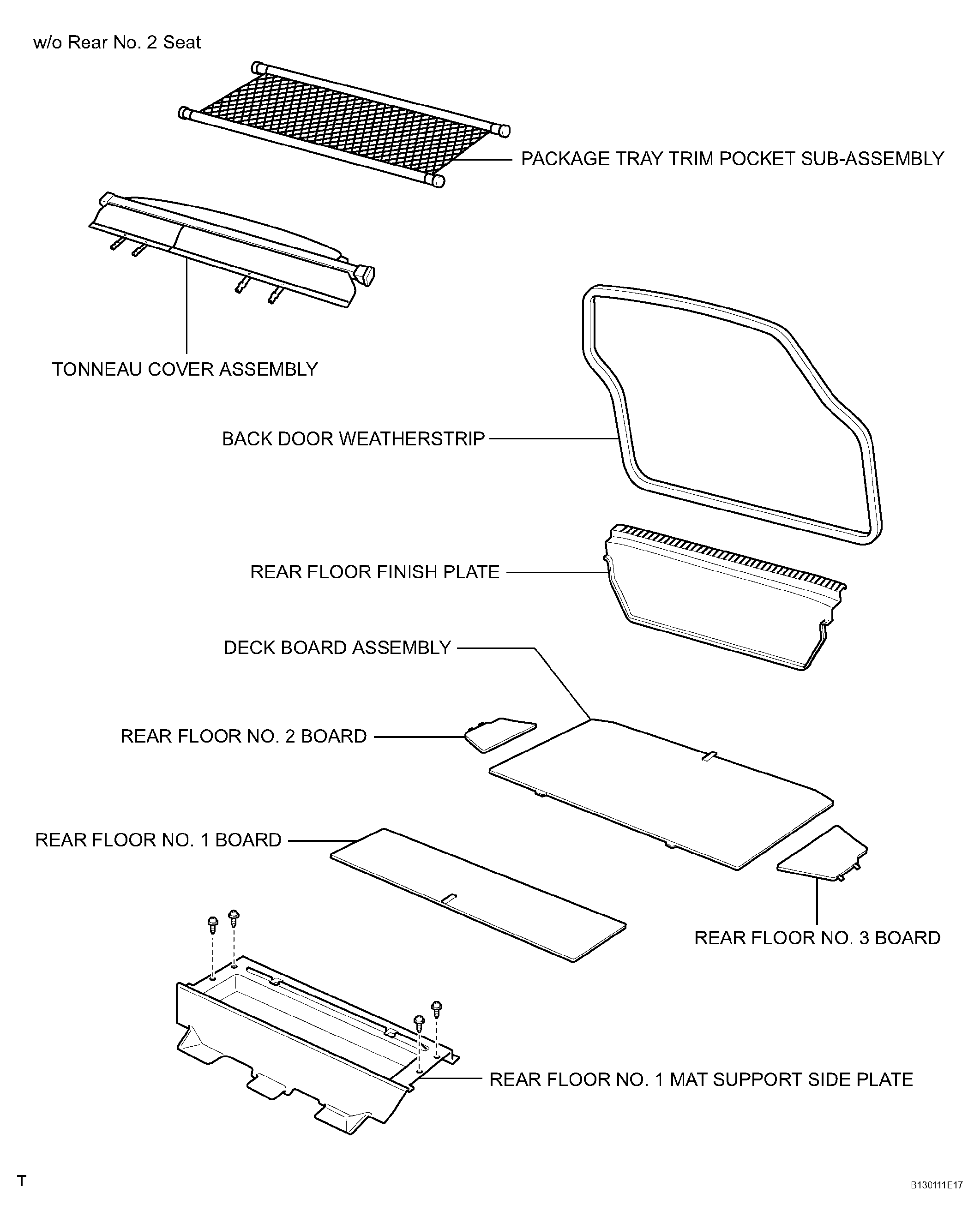

Fig 12: Identifying Fuel Lid Lock Control Components (12 Of 14)

G04492531

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

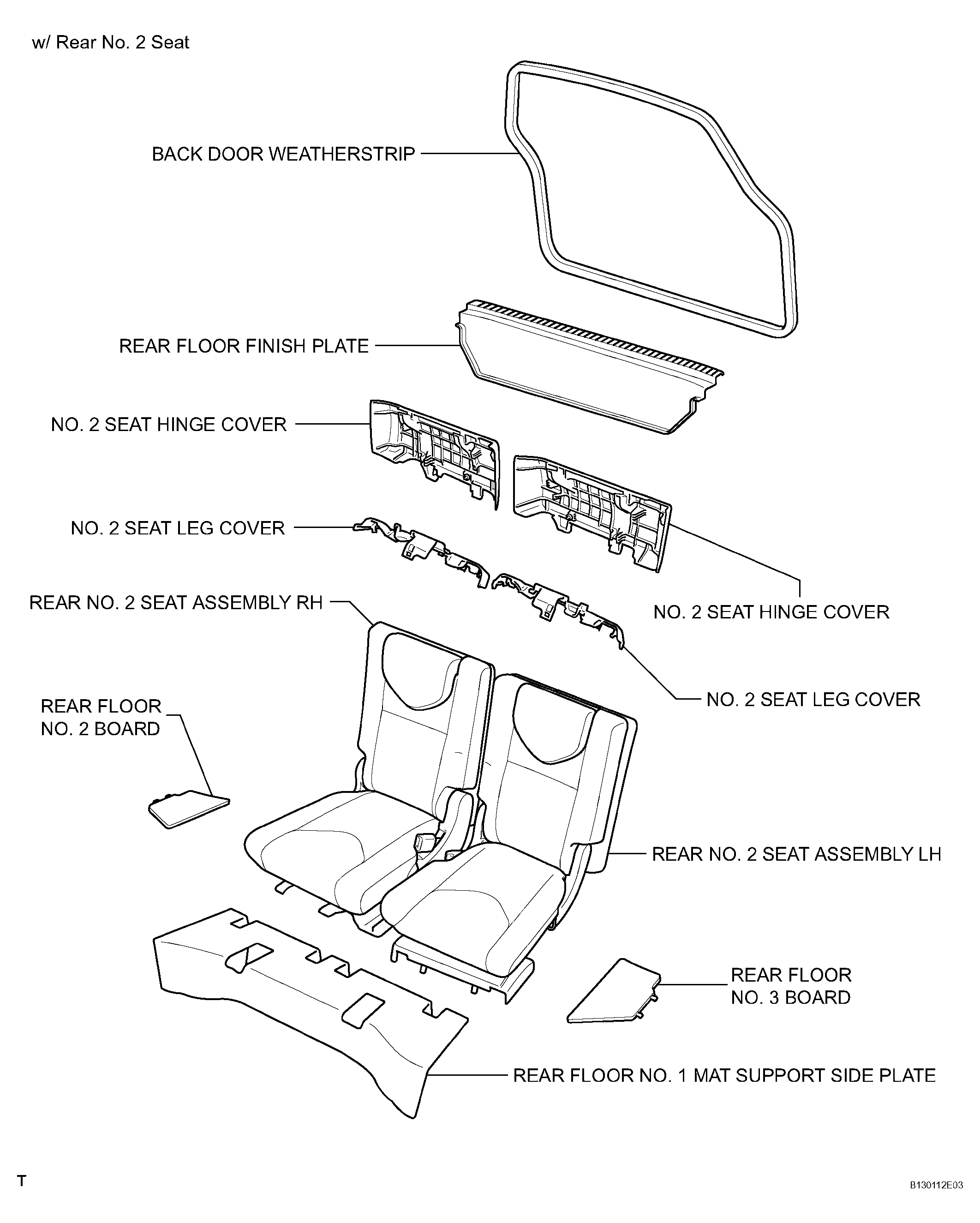

Fig 13: Identifying Fuel Lid Lock Control Components (13 Of 14)

G04492532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

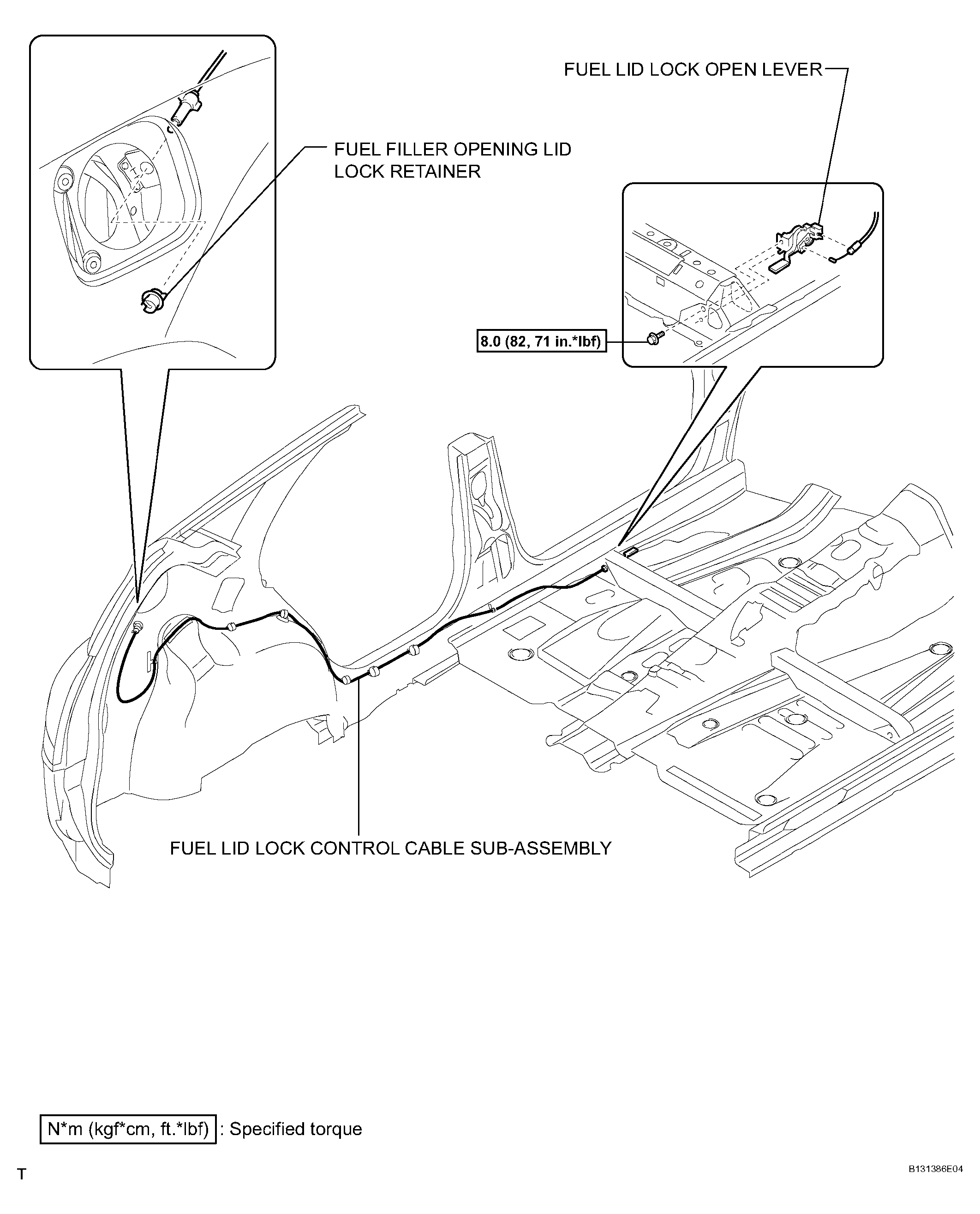

Fig 14: Fuel Lid Lock Control Replacement Components With Torque Specifications (14 Of 14)

G04492533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
