Air Conditioning Unit: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

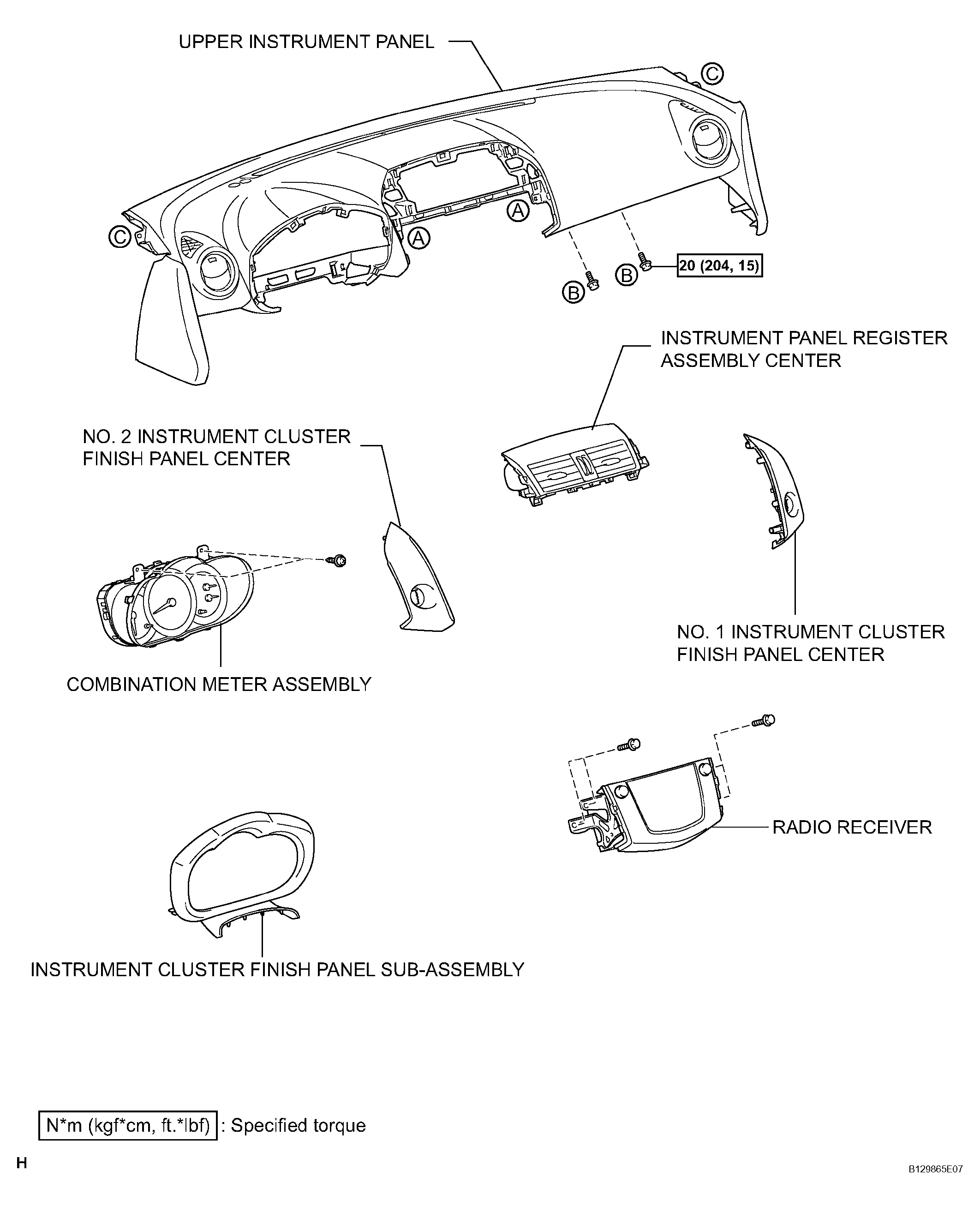

Fig 1: Air Conditioning Unit Replacement Components With Torque Specifications (1 Of 8)

G04489957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

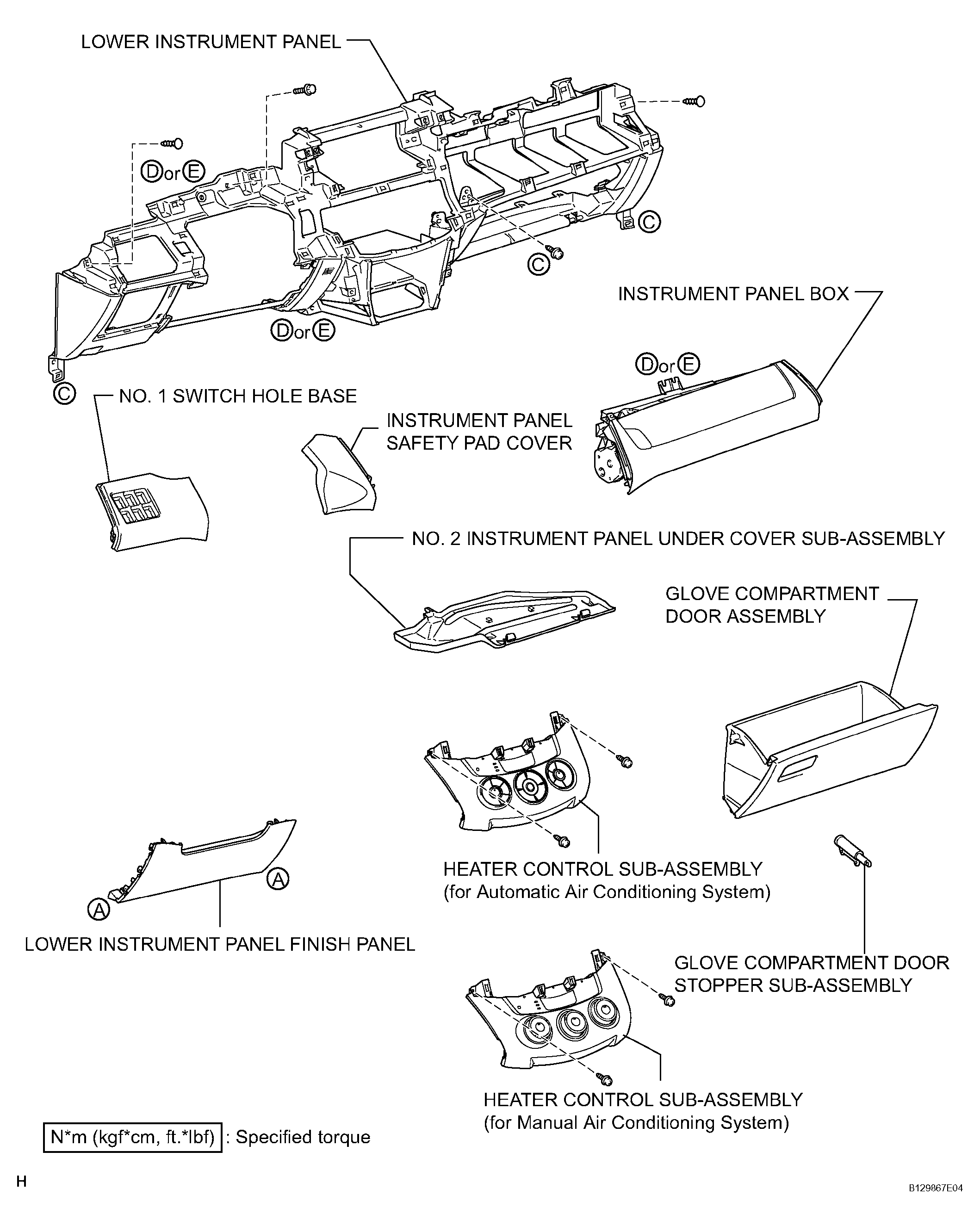

Fig 2: Identifying Air Conditioning Unit Components (2 Of 8)

G04489958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

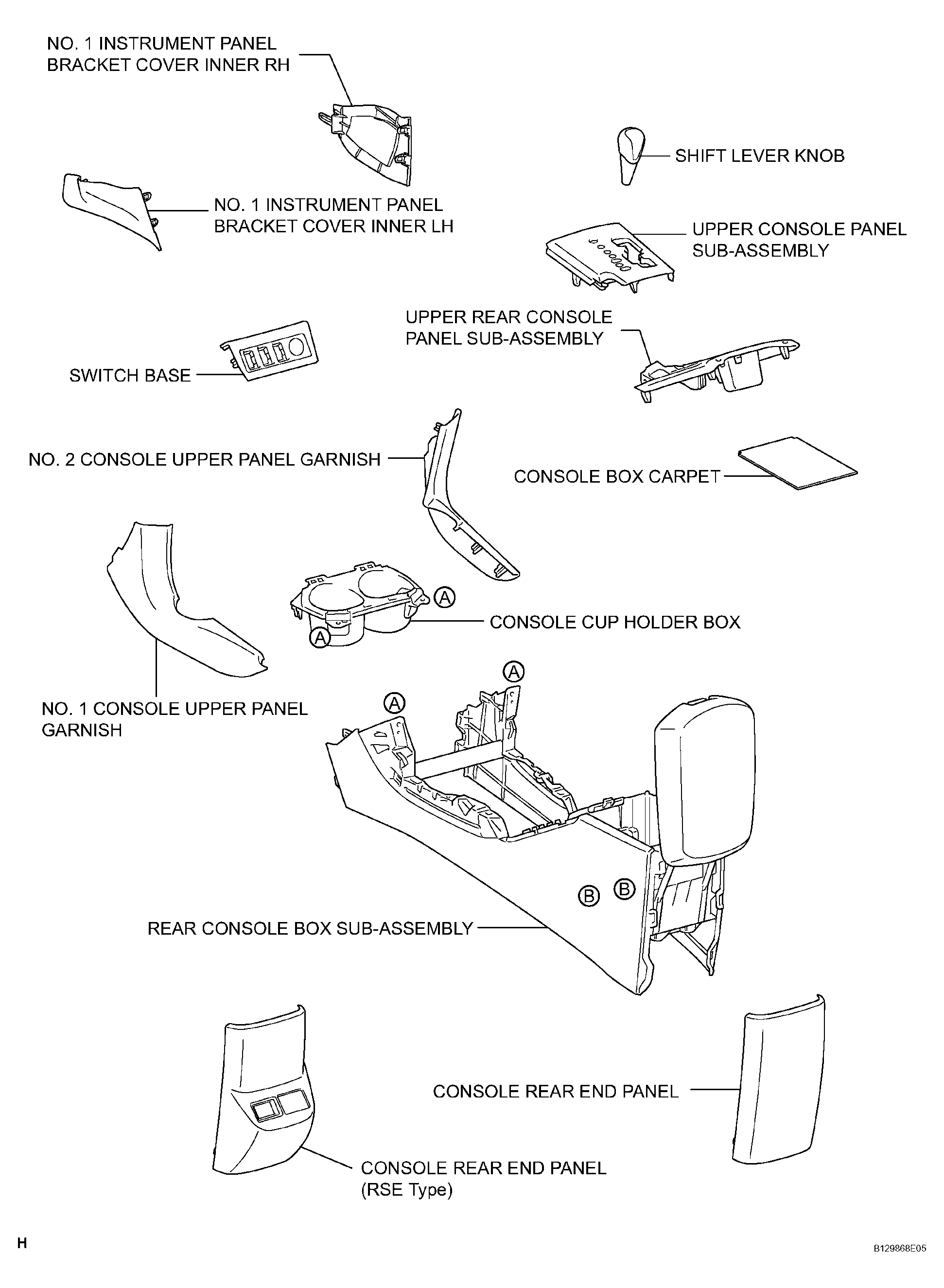

Fig 3: Identifying Air Conditioning Unit Components (3 Of 8)

G04489959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Air Conditioning Unit Replacement Components With Torque Specifications (4 Of 8)

G04489960

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

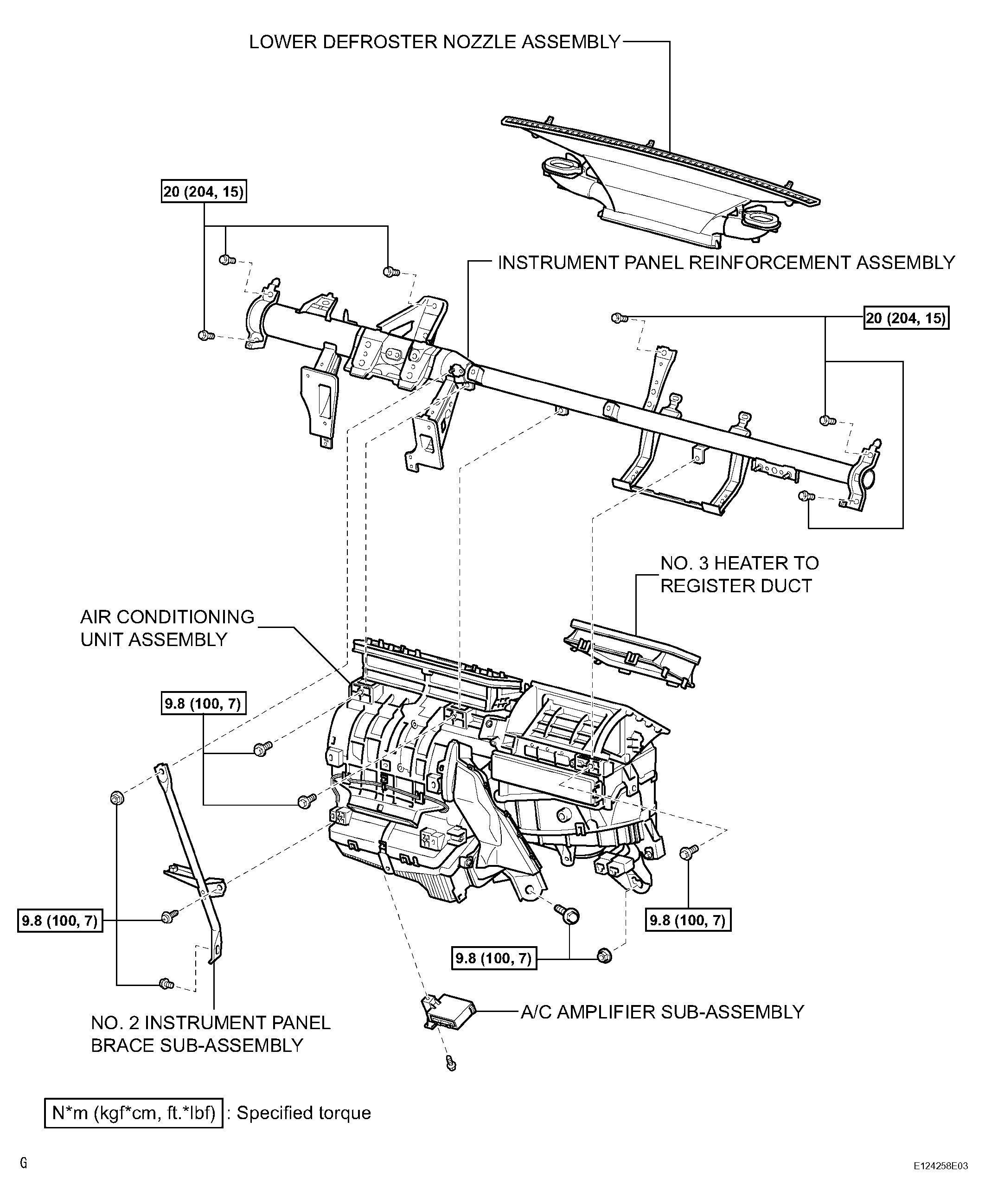

Fig 5: Air Conditioning Unit Replacement Components With Torque Specifications (5 Of 8)

G04489961

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

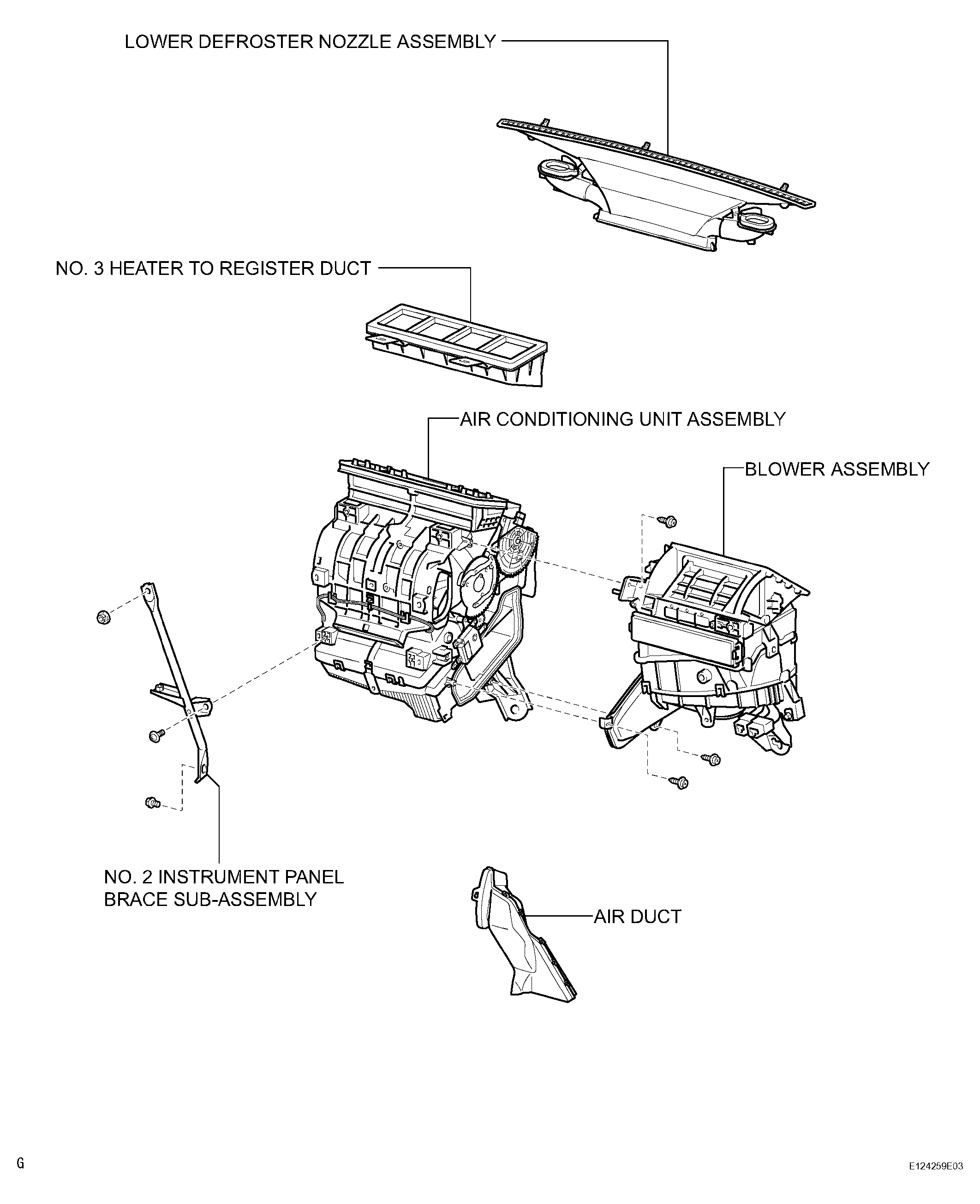

Fig 6: Identifying Air Conditioning Unit Components (6 Of 8)

G04489962

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

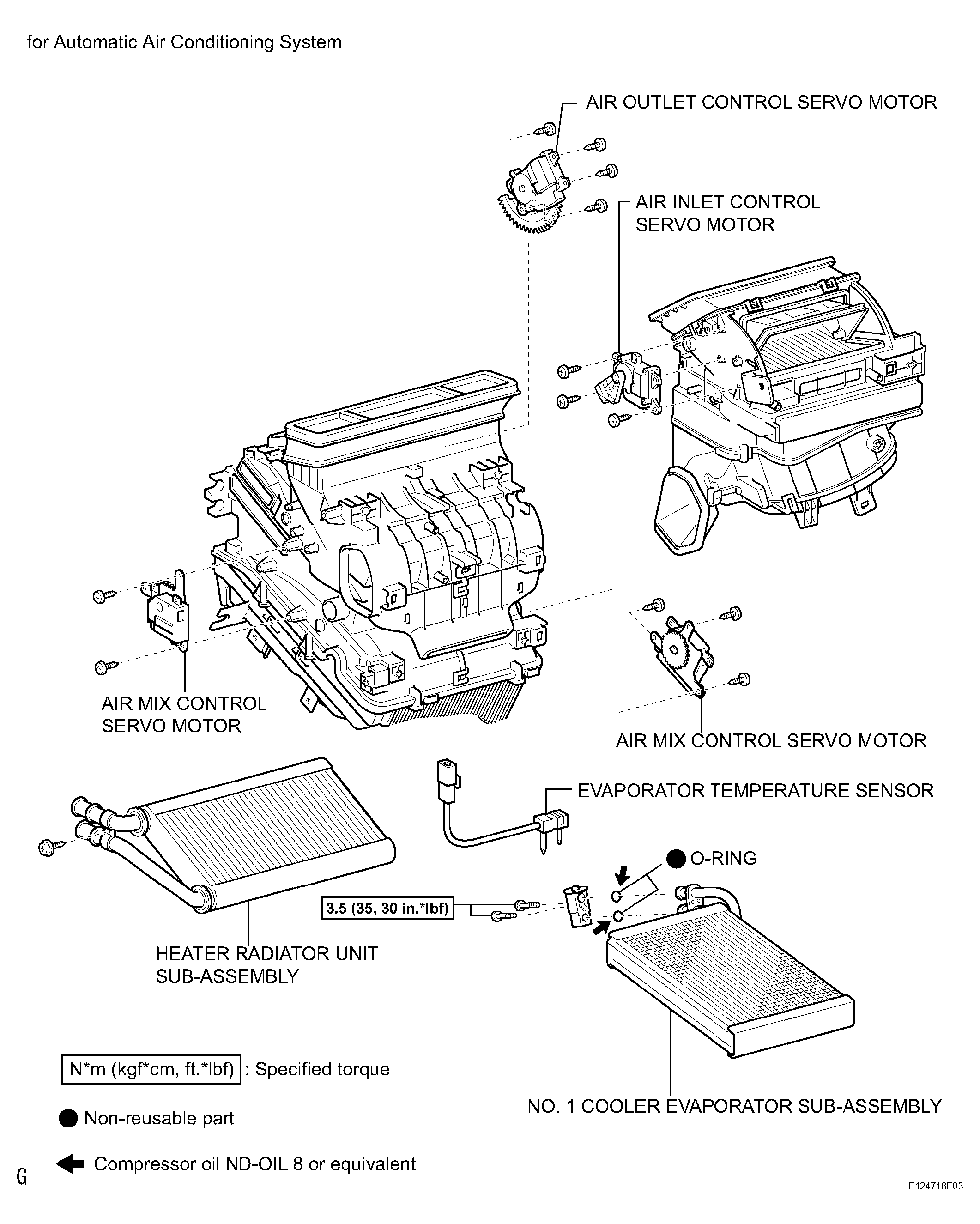

Fig 7: Air Conditioning Unit Replacement Components With Torque Specifications (7 Of 8)

G04489963

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

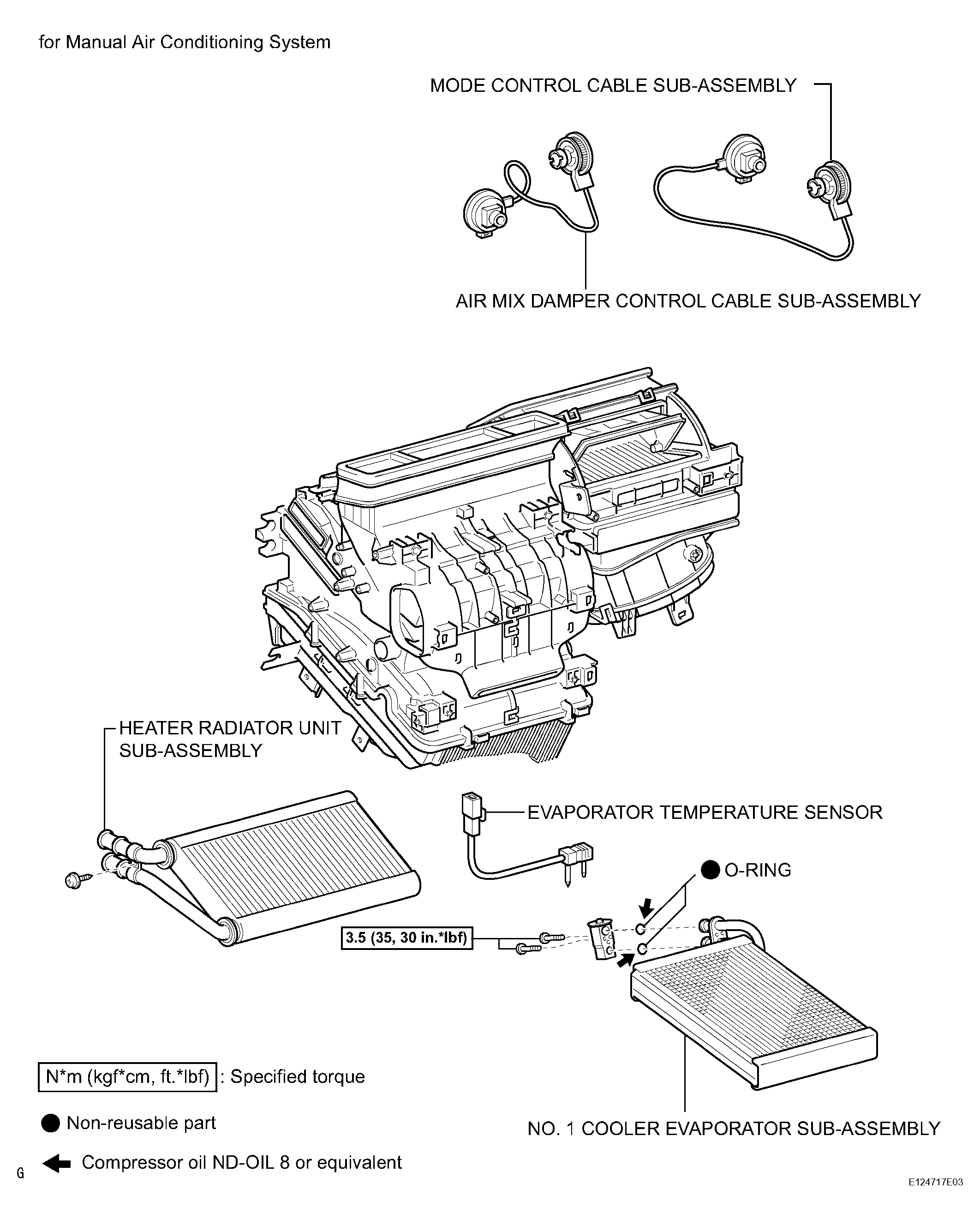

Fig 8: Air Conditioning Unit Replacement Components With Torque Specifications (8 Of 8)

G04489964

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
