Section 168 (Air Conditioning): Condenser: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COOLER DRYER
1. Using pliers, install the cooler dryer.

  Fig 1: Installing Cooler Dryer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply a sufficient amount of compressor oil to the contact surfaces of a new O-ring and the cap.
  Compressor oil: ND-OIL 8 or equivalent
3. Install the O-ring to the cap.

  Fig 2: Installing O-Ring To Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a 14 mm socket hexagon wrench, install the cap to the modulator.
  Torque: 2.9 N*m (29 kgf*cm, 25 in.*lbf)

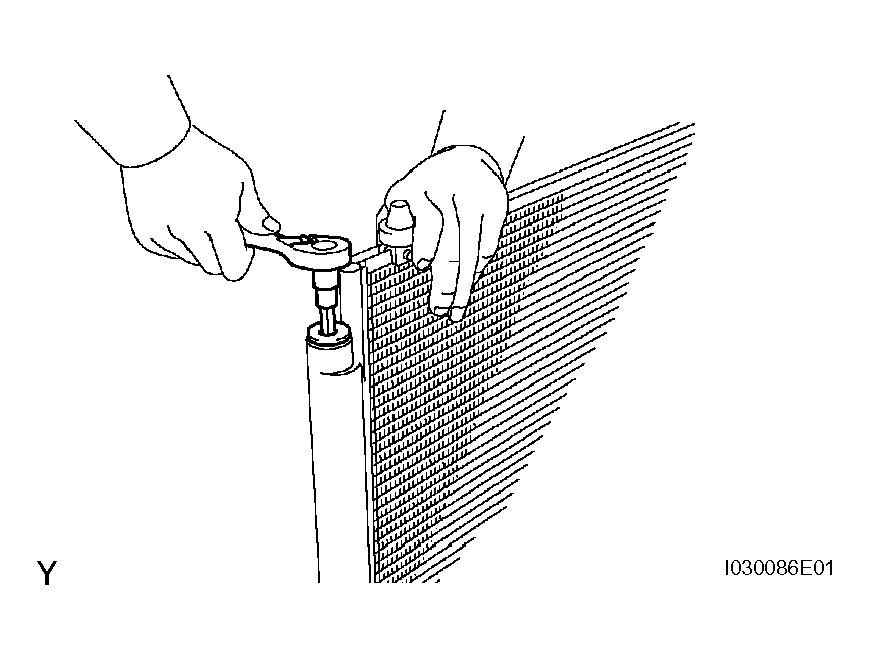

  Fig 3: Installing Cap To Modulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COOLER CONDENSER ASSEMBLY
1. Install the cooler condenser.

  Fig 4: Installing Cooler Condenser Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 FAN SHROUD
1. Install the fan shroud with the 2 bolts.
  Torque: 10.5 N*m (107 kgf*cm, 8 ft.*lbf)

  Fig 5: Installing Fan Shroud
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR SUPPORT UPPER BRACKET
1. Install the 2 brackets with the 2 bolts.
  Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

  Fig 6: Installing Radiator Support Upper Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COOLER REFRIGERANT LIQUID PIPE
1. Remove the attached vinyl tape from the pipe and the connecting part of the cooler condenser.
2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the pipe joint.
  Compressor oil: ND-OIL 8 or equivalent
3. Install the O-ring on the cooler refrigerant liquid pipe.
4. Install the cooler refrigerant liquid pipe on the cooler condenser with the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

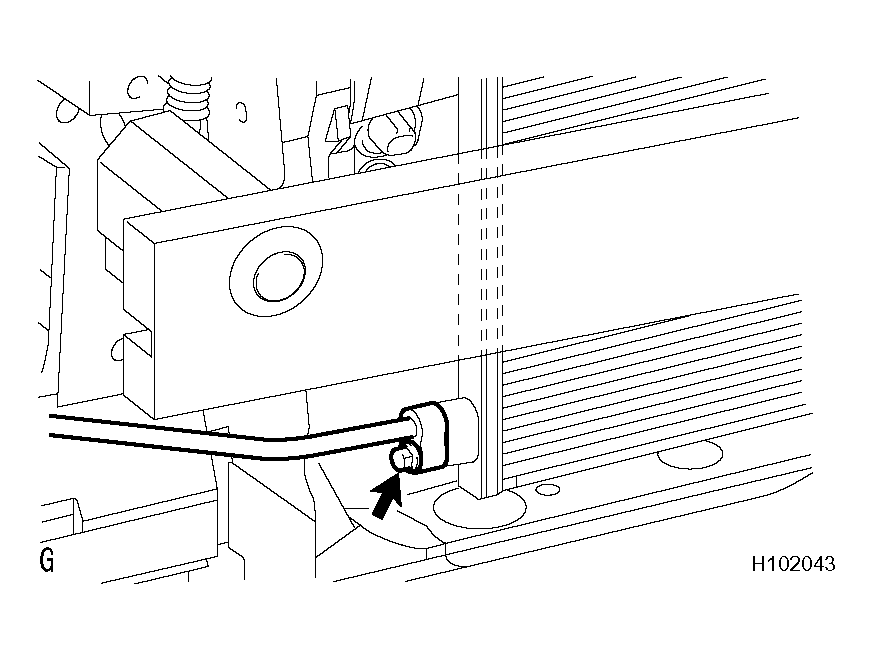

  Fig 7: Installing Cooler Refrigerant Liquid Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
1. Remove the attached vinyl tape from the hose and the connecting part of the cooler condenser.
2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the hose joint.
  Compressor oil: ND-OIL 8 or equivalent
3. Install the O-ring on the cooler refrigerant discharge hose.
4. Install the cooler refrigerant discharge hose on the cooler condenser with the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

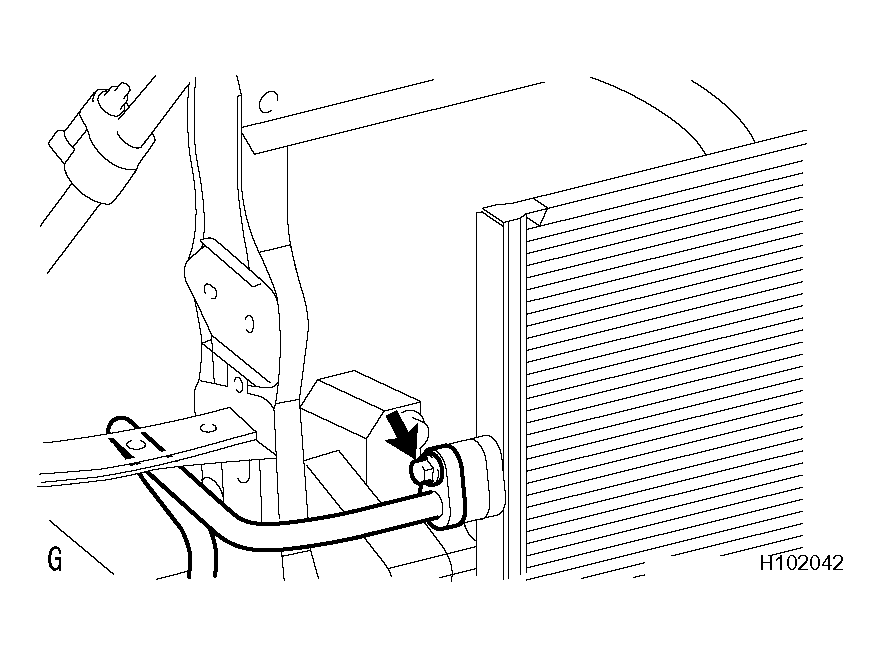

  Fig 8: Installing Cooler Refrigerant Discharge Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST HOOD SUB-ASSEMBLY (See ADJUSTMENT )
INSTALL FRONT BUMPER COVER
1. Install the front bumper cover (see FRONT BUMPER ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHARGE REFRIGERANT (See REPLACEMENT )
WARM UP ENGINE (See REPLACEMENT )
CHECK FOR LEAKAGE OF REFRIGERANT (See REPLACEMENT )
