Door Control Receiver: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Illustrations showing parts related to accessing the "Door Control Receiver".

Fig 1: Identifying Door Control Receiver Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Door Control Receiver Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

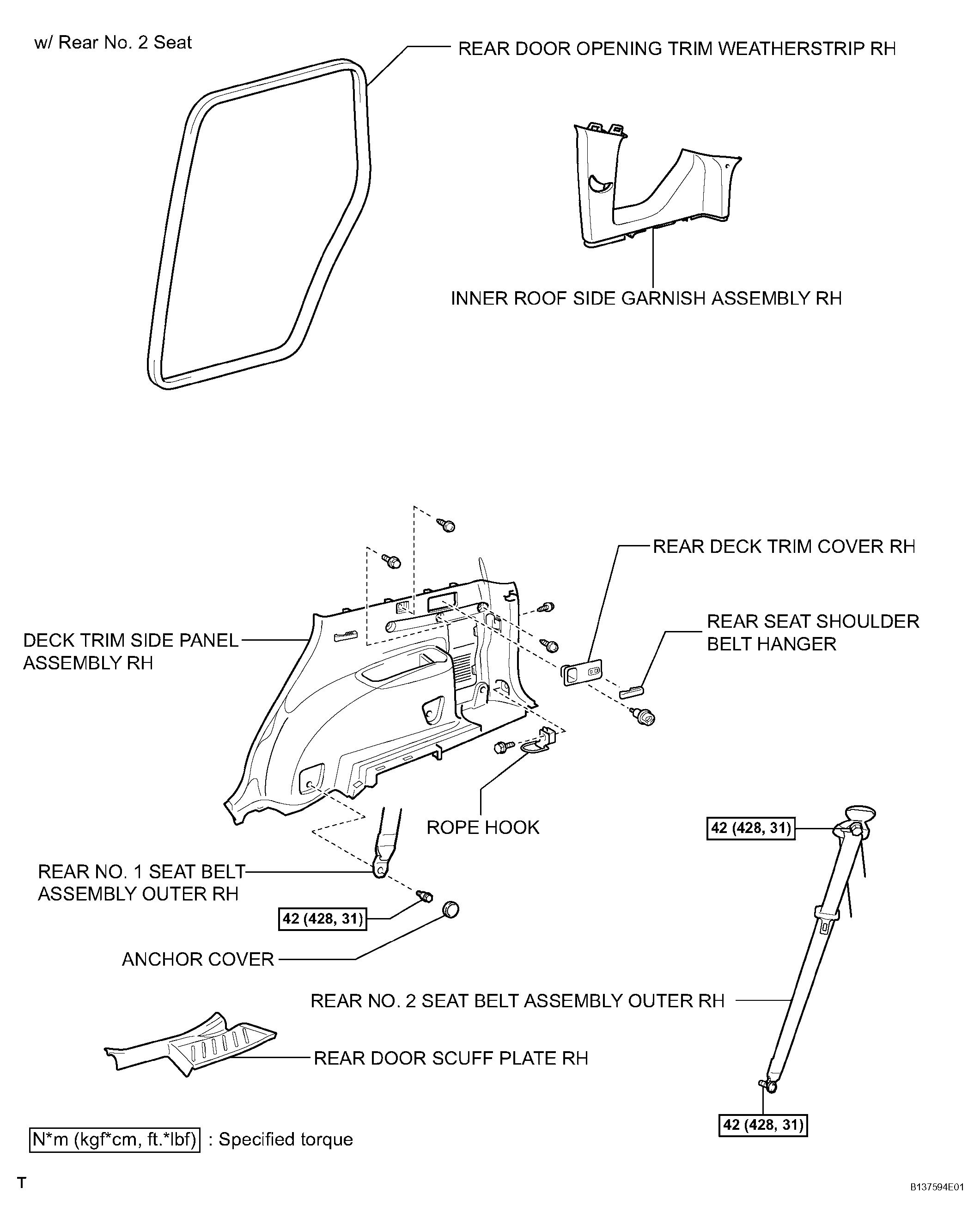

Fig 3: Door Control Receiver Replacement Components With Torque Specifications (3 Of 5)

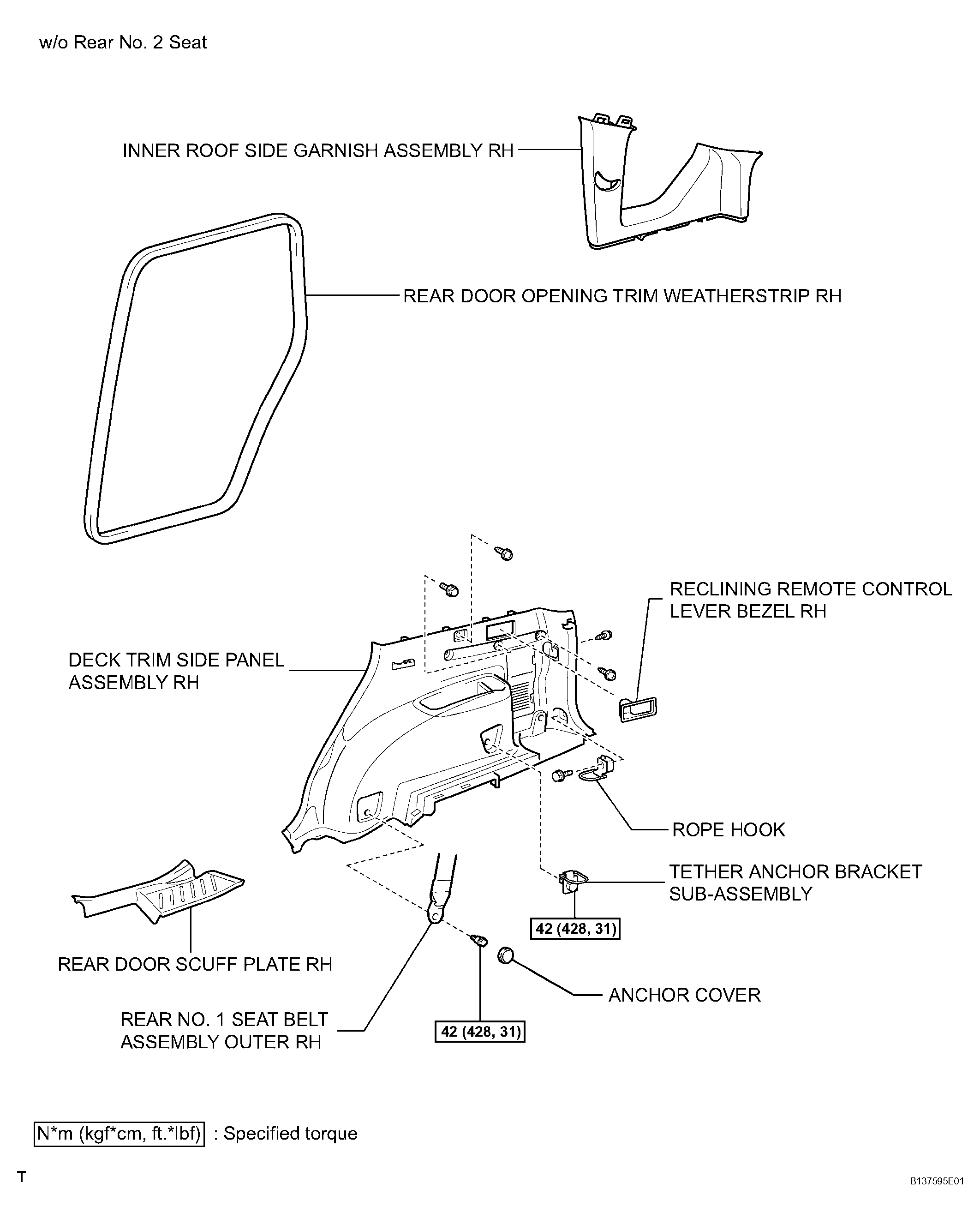

Fig 4: Door Control Receiver Replacement Components With Torque Specifications (4 Of 5)

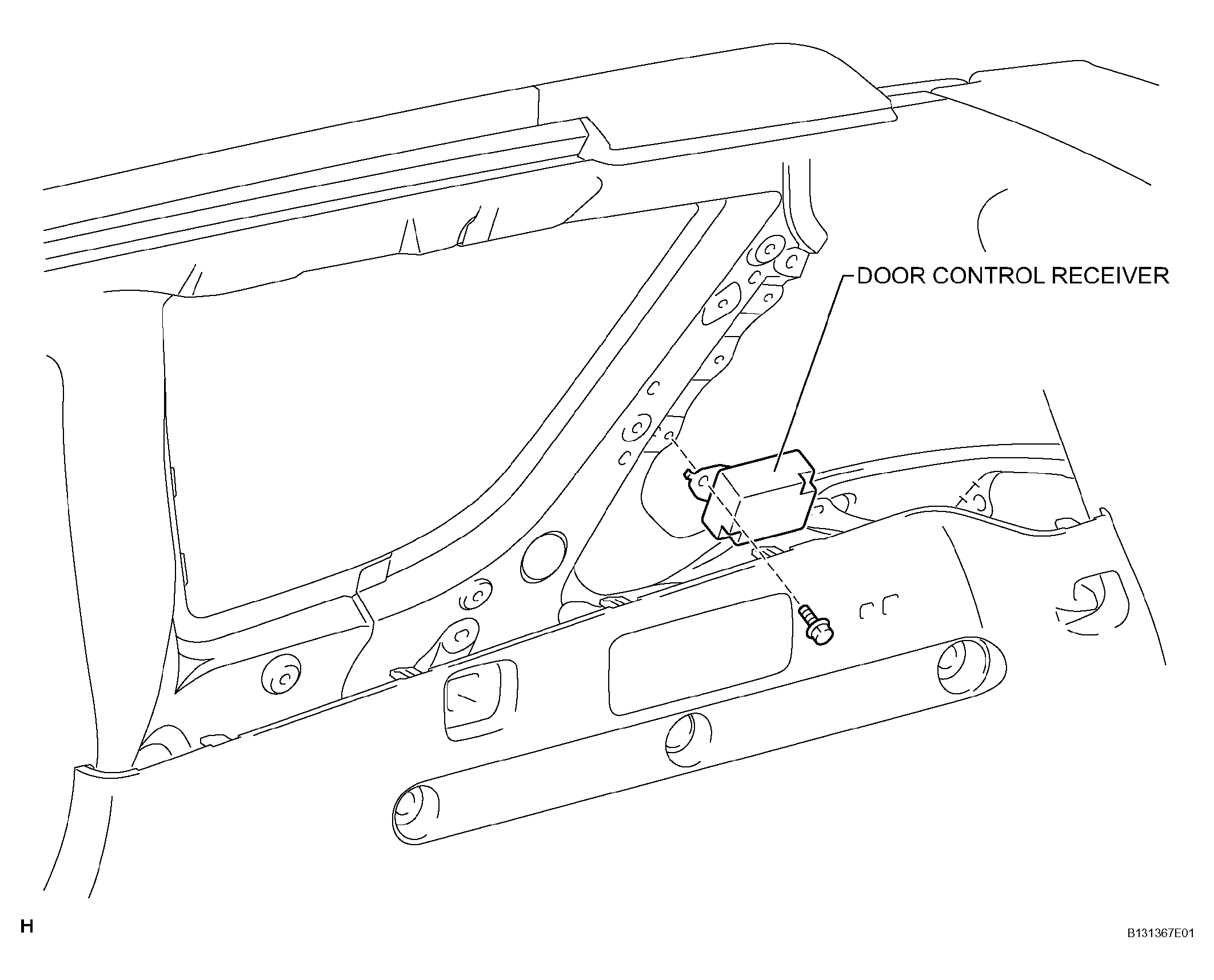

Fig 5: Identifying Location Of Door Control Receiver (5 Of 5)
