Door Control Receiver: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL DOOR CONTROL RECEIVER
1. Install the receiver with the bolt.
2. Connect the receiver connector.

  Fig 1: Installing Door Control Receiver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INNER ROOF SIDE GARNISH ASSEMBLY RH (w/o Rear No. 2 Seat)

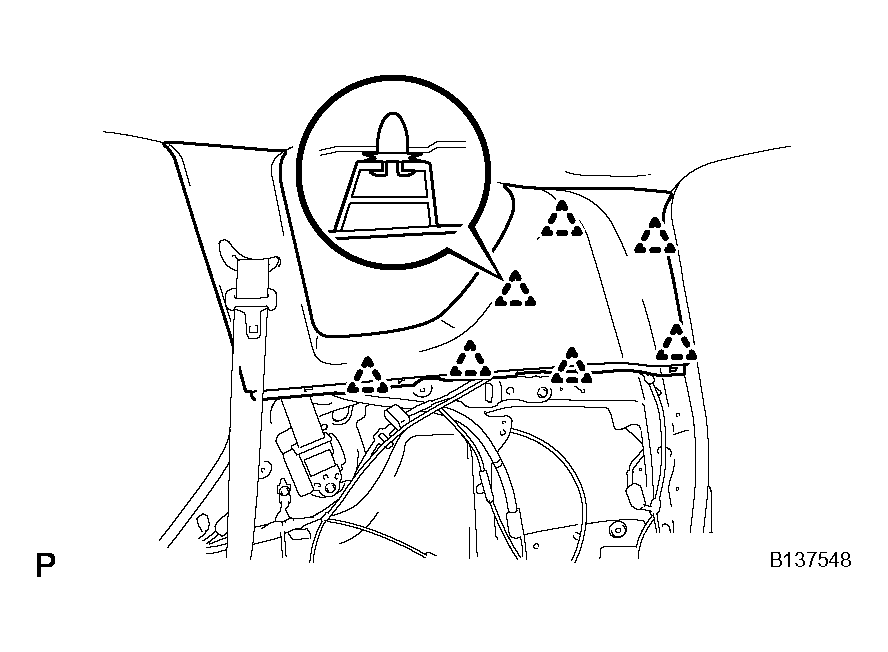

1. Attach the 7 clips to install the garnish.

  Fig 2: Attaching Clips & Installing Inner Roof Side Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INNER ROOF SIDE GARNISH ASSEMBLY RH (w/Rear No. 2 Seat)
1. Attach the 7 slips to install the garnish.

  Fig 3: Attaching Clips & Installing Inner Roof Side Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the rear No. 2 seat belt's shoulder anchor.
  1. Connect the shoulder anchor with the bolt.
    Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    Fig 4: Connecting Shoulder Anchor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Attach the claws to close the seat belt anchor cover.
INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (w/o Rear No. Seat) (See INSTALLATION )
INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL TETHER ANCHOR BRACKET SUB-ASSEMBLY (w/o Rear No. 2 Seat)
1. Install the tether anchor bracket with the bolt.

  Fig 5: Installing Tether Anchor Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RECLINING REMOTE CONTROL LEVER BEZEL RH (w/o Rear No. 2 Seat) (See appropriate step(s) under INSTALLATION )
INSTALL REAR DECK TRIM COVER RH (w/Rear No. 2 Seat)
1. Attach the 4 claws to install the trim cover.
2. Install the belt.
INSTALL REAR FLOOR FINISH PLATE (See INSTALLATION )
INSTALL REAR FLOOR NO. 1 MAT SUPPORT SIDE PLATE (See INSTALLATION )
INSTALL REAR FLOOR NO. 3 BOARD
INSTALL REAR FLOOR NO. 2 BOARD
INSTALL REAR NO. 2 SEAT ASSEMBLY LH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL REAR NO. 2 SEAT ASSEMBLY RH (w/Rear No. 2 Seat)
HINT:

Use the same procedures described for the LH side.
INSTALL NO. 2 SEAT LEG COVER LH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL NO. 2 SEAT LEG COVER RH (w/Rear No. 2 Seat)
HINT:

Use the same procedures described for the LH side.
INSTALL NO. 2 SEAT HINGE COVER LH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL NO. 2 SEAT HINGE COVER RH (w/Rear No. 2 Seat)
HINT:

Use the same procedures described for the LH side.
INSTALL DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
INSTALL REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
INSTALL REAR DOOR SCUFF PLATE RH

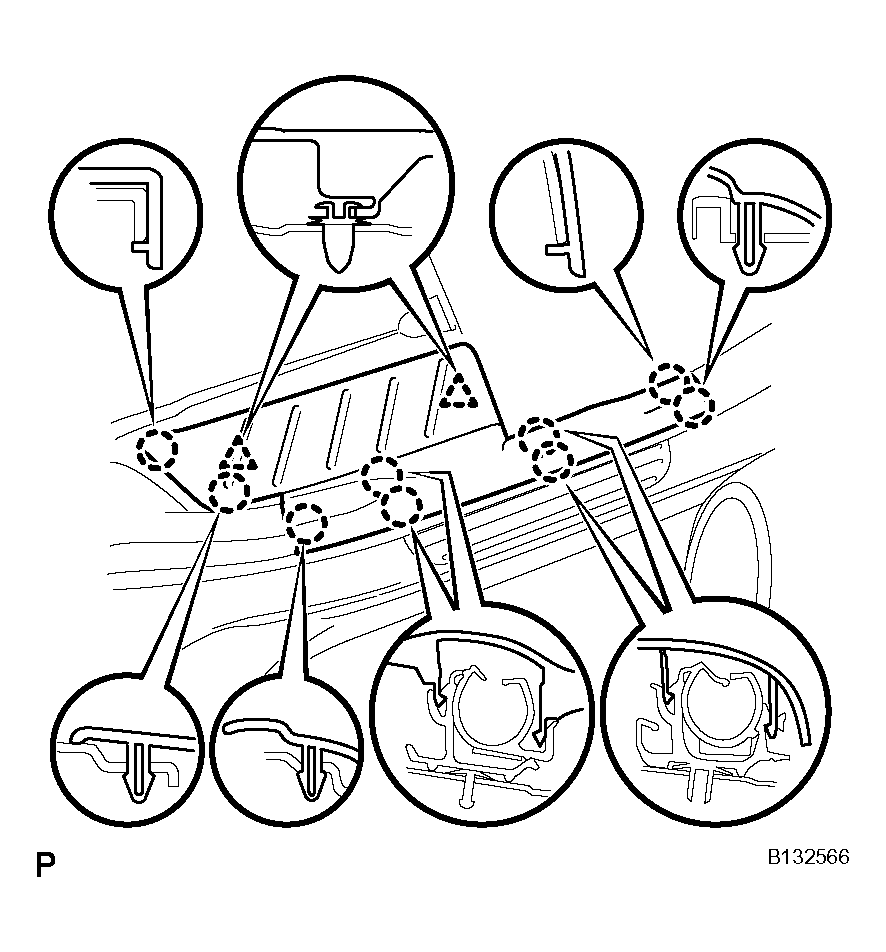

1. Attach the 9 claws and 2 clips to install the scuff plate.

  Fig 6: Attaching Claws And Clips & Installing Scuff Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
