Door Control Switch: Inspection

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (DOOR CONTROL SWITCH)

Measure the resistance of the door control switch.

Standard resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Switch Condition	Specified Condition
2 (L) - 1 (E)	Lock	Below 80 Ω
2 (L) - 1 (E)	OFF	10 kΩ or higher
9 (UL) - 1 (E)	Unlock	Below 80 Ω
9 (UL) - 1 (E)	OFF	10 kΩ or higher

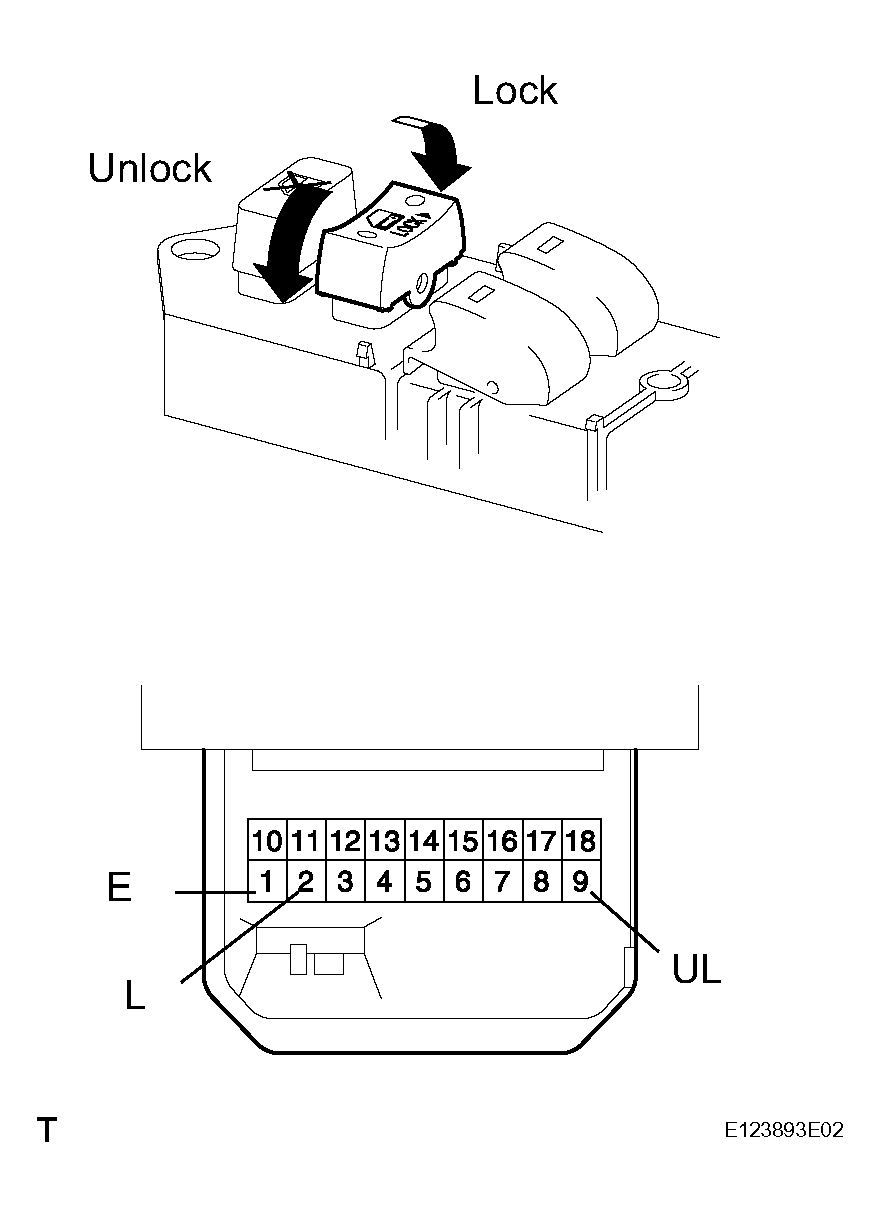

Fig 1: Inspecting Power Window Regulator Master Switch Assembly (Door Control Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the power window regulator master switch assembly.

INSPECT DOOR CONTROL SWITCH ASSEMBLY

Measure the resistance of the door control switch.

Standard resistance

RESISTANCE SPECIFIED CONDITIONS

Tester Connection	Switch Condition	Specified Condition
4 (L) - 3 (E)	Lock	Below 200 Ω
4 (L) - 3 (E)	OFF	10 kΩ or higher
2 (UL) - 3 (E)	Unlock	Below 200 Ω
2 (UL) - 3 (E)	OFF	10 kΩ or higher

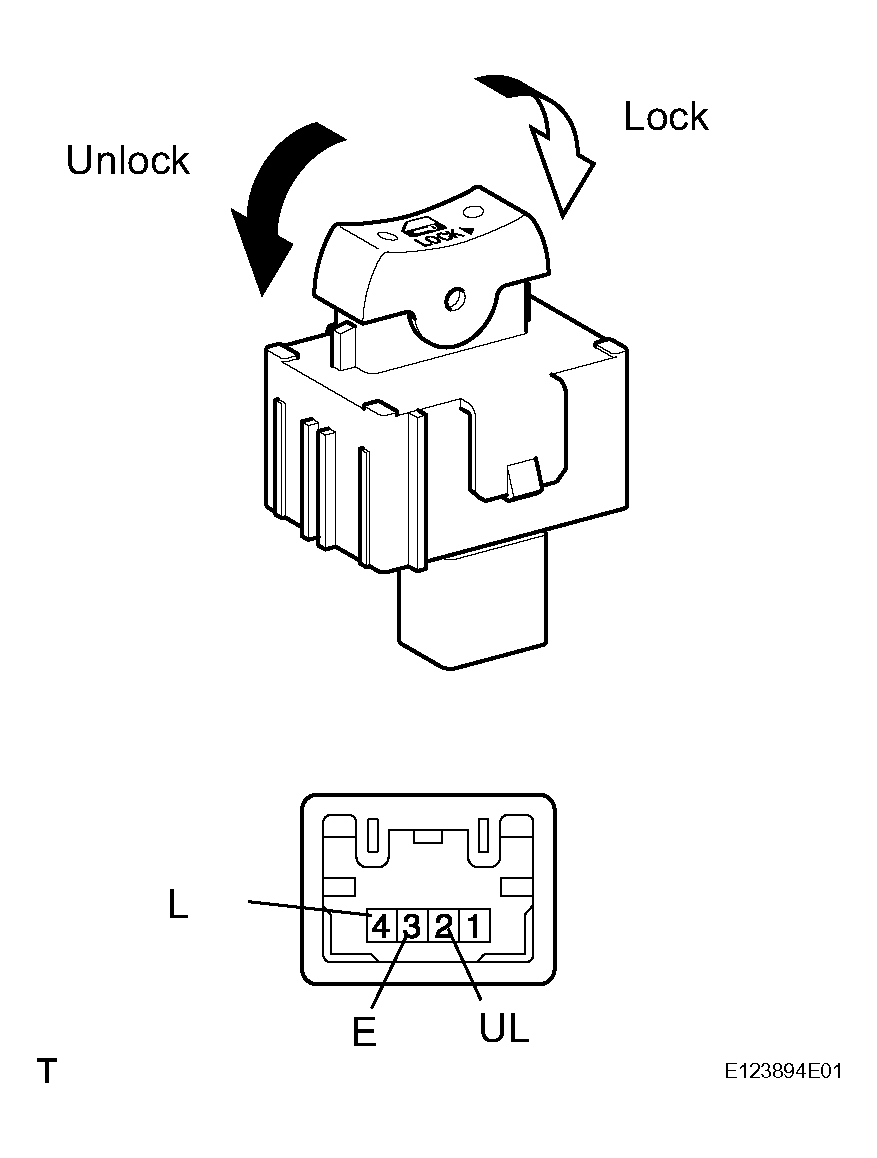

Fig 2: Inspecting Door Control Switch Assembly

If the result is not as specified, replace the door control switch assembly.
