Steering Column Assembly: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing the steering column (see AIRBAG SYSTEM ).

PLACE FRONT WHEELS FACING STRAIGHT AHEAD
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE STEERING PAD (See REMOVAL )
REMOVE STEERING WHEEL ASSEMBLY

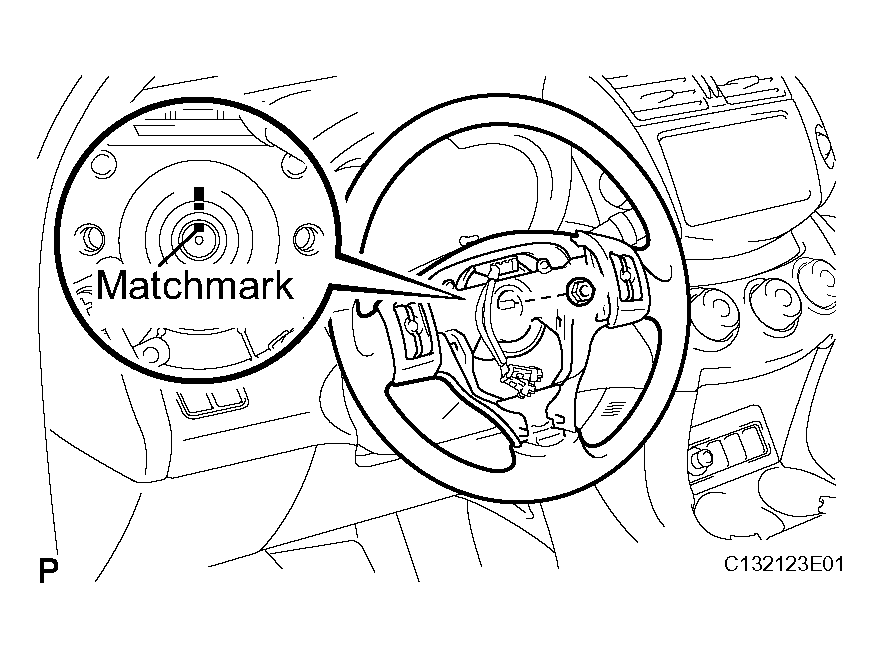

1. Remove the nut and place matchmarks on the steering wheel and steering column.

  Fig 1: Placing Matchmarks On Steering Wheel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

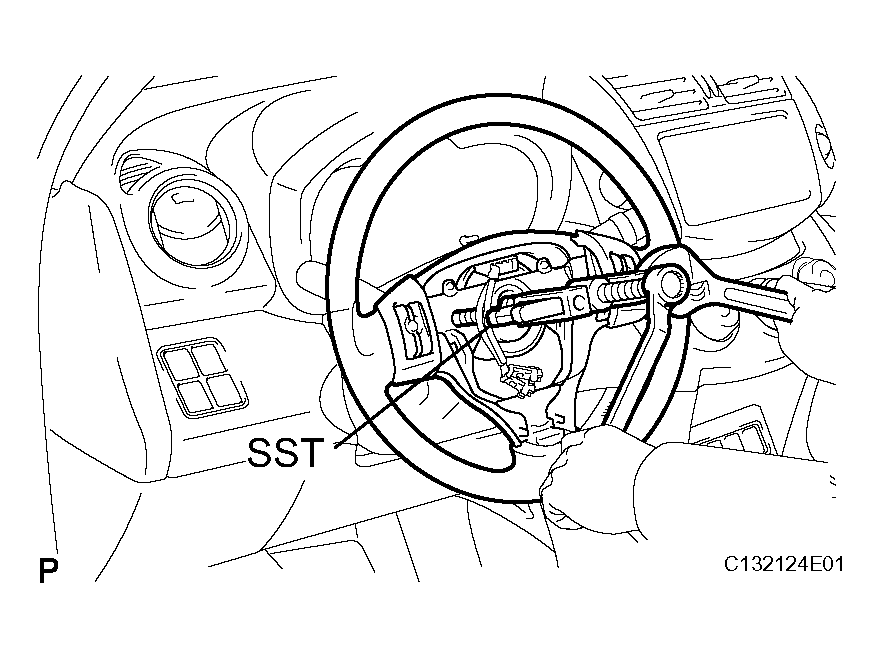

2. Using SST, remove the steering wheel.
  SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  NOTE: Apply a small amount of grease to the threads and tip of SST (center bolt) before use.

  Fig 2: Removing Steering Wheel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING COLUMN COVER

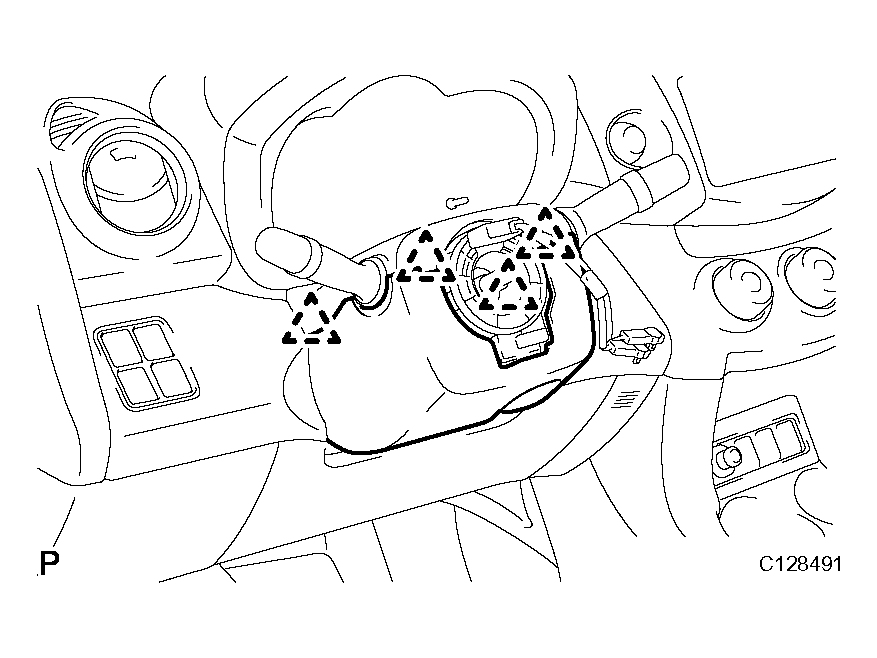

1. Detach the 4 claws, release the tilt lever and remove the lower steering column cover.

  Fig 3: Removing Lower Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

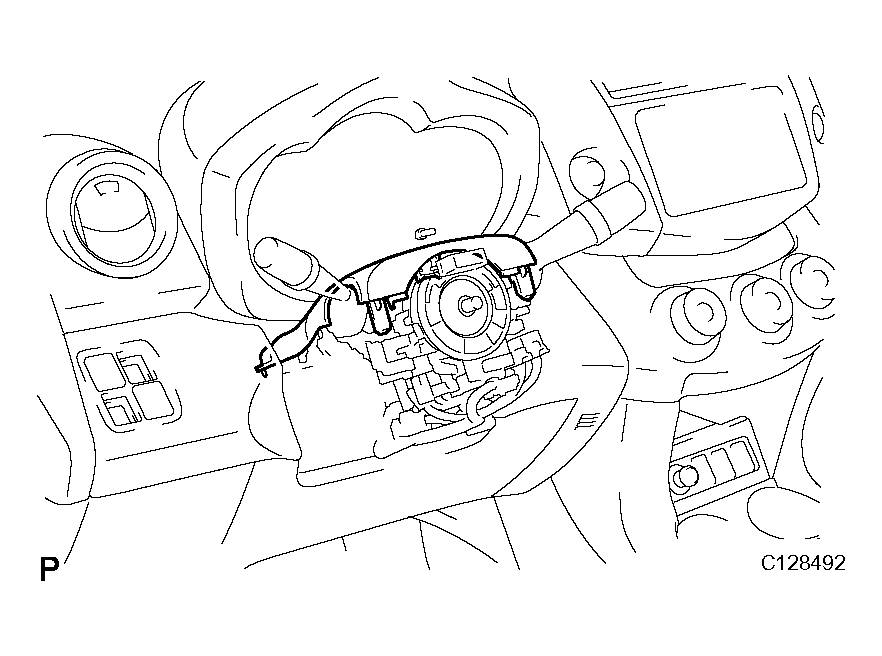

2. Detach the claw and remove the upper steering column cover.

  Fig 4: Removing Upper Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPIRAL CABLE SUB-ASSEMBLY

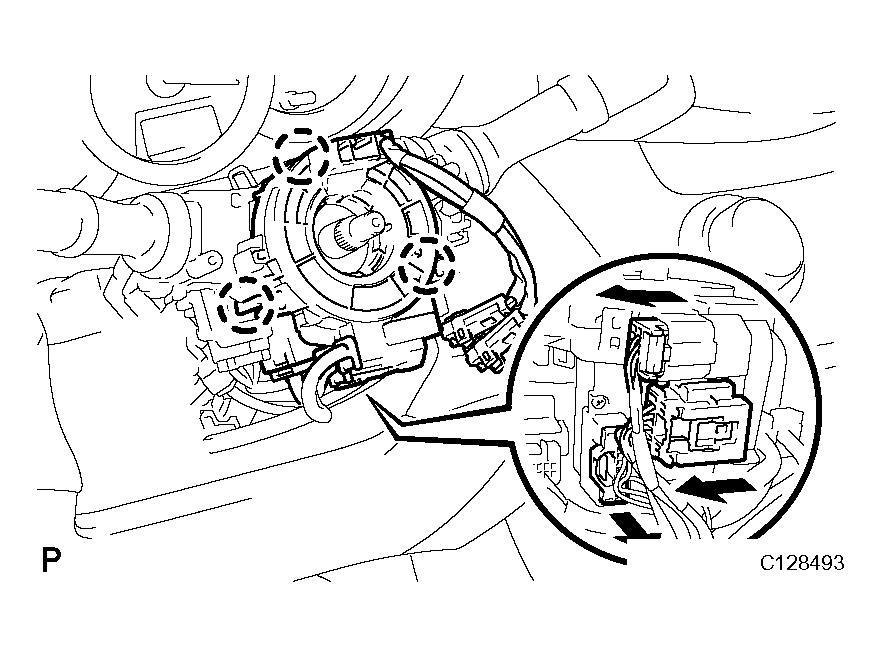

1. Disconnect all connectors from the turn signal switch with spiral cable.

  Fig 5: Removing Spiral Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION SWITCH ASSEMBLY

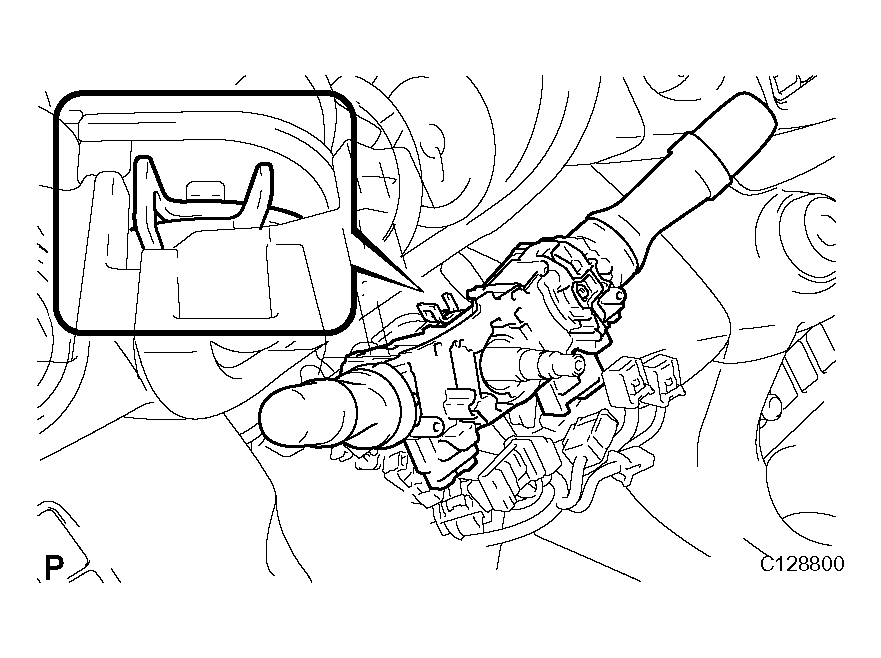

1. Detach the clamp shown in the illustration and remove the combination switch from the steering column.
REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
1. Remove the instrument panel (see appropriate step(s) under REMOVAL ).

  Fig 6: Removing Combination Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT POWER STEERING ECU

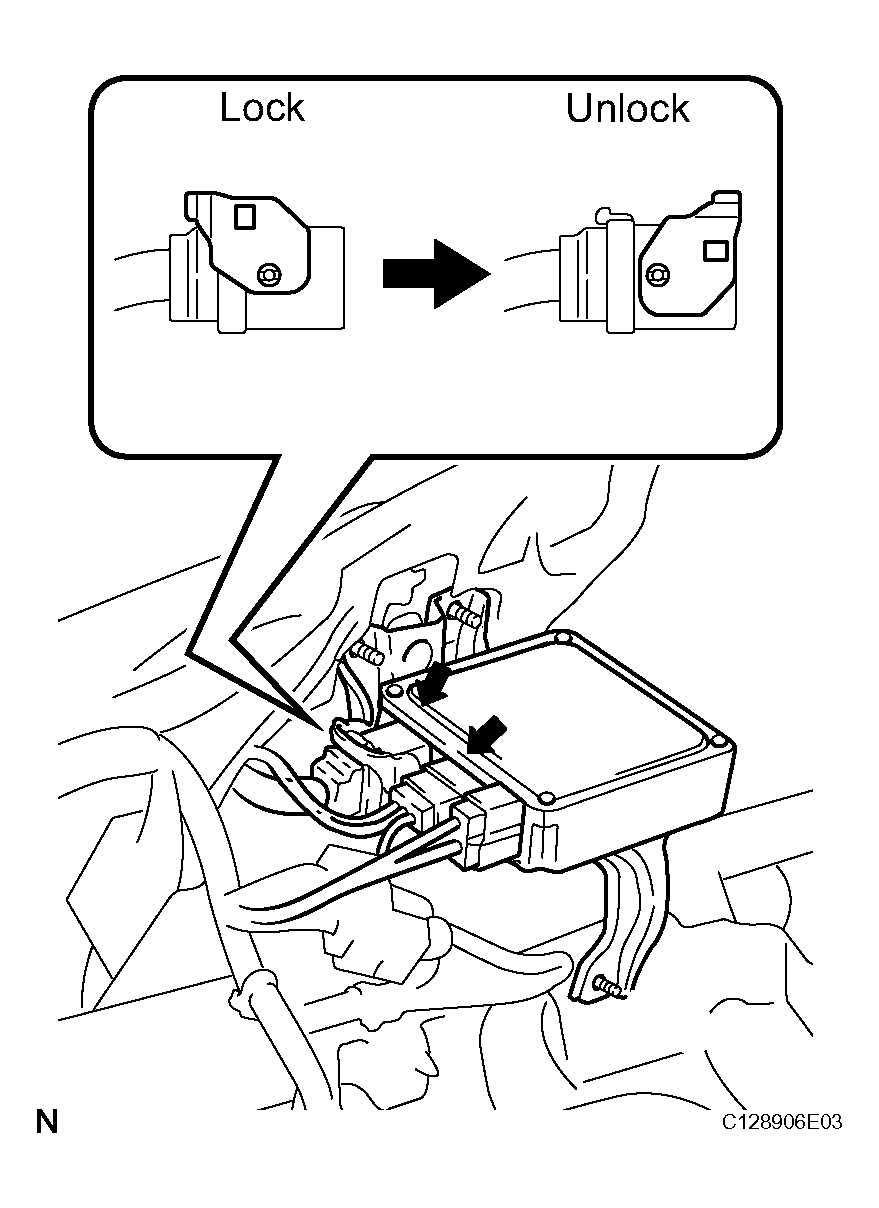

1. Detach the power steering motor wire harness and torque sensor wire harness clamps from the power steering ECU side.
2. Disconnect the 2 steering column connectors from the power steering ECU.
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (See appropriate step(s) under REMOVAL )

Fig 7: Disconnecting Power Steering ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COLUMN HOLE COVER SILENCER SHEET
1. Turn back the floor carpet, remove the 2 clips and remove the column hole cover silencer sheet.

  Fig 8: Removing Steering Column Hole Cover Silencer Sheet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
1. Place matchmarks on the steering intermediate shaft and steering gear. (See Fig 9)
2. Remove bolt A and detach the steering assembly from the steering gear.
3. Place matchmarks on the steering intermediate shaft and steering column. (See Fig 9)
4. Remove bolt B and detach the steering intermediate shaft shaft from the steering column.

  Fig 9: Placing Matchmarks On Steering Intermediate Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
1. Remove the brake pedal support (see appropriate step(s) under REMOVAL ).
REMOVE STEERING COLUMN ASSEMBLY

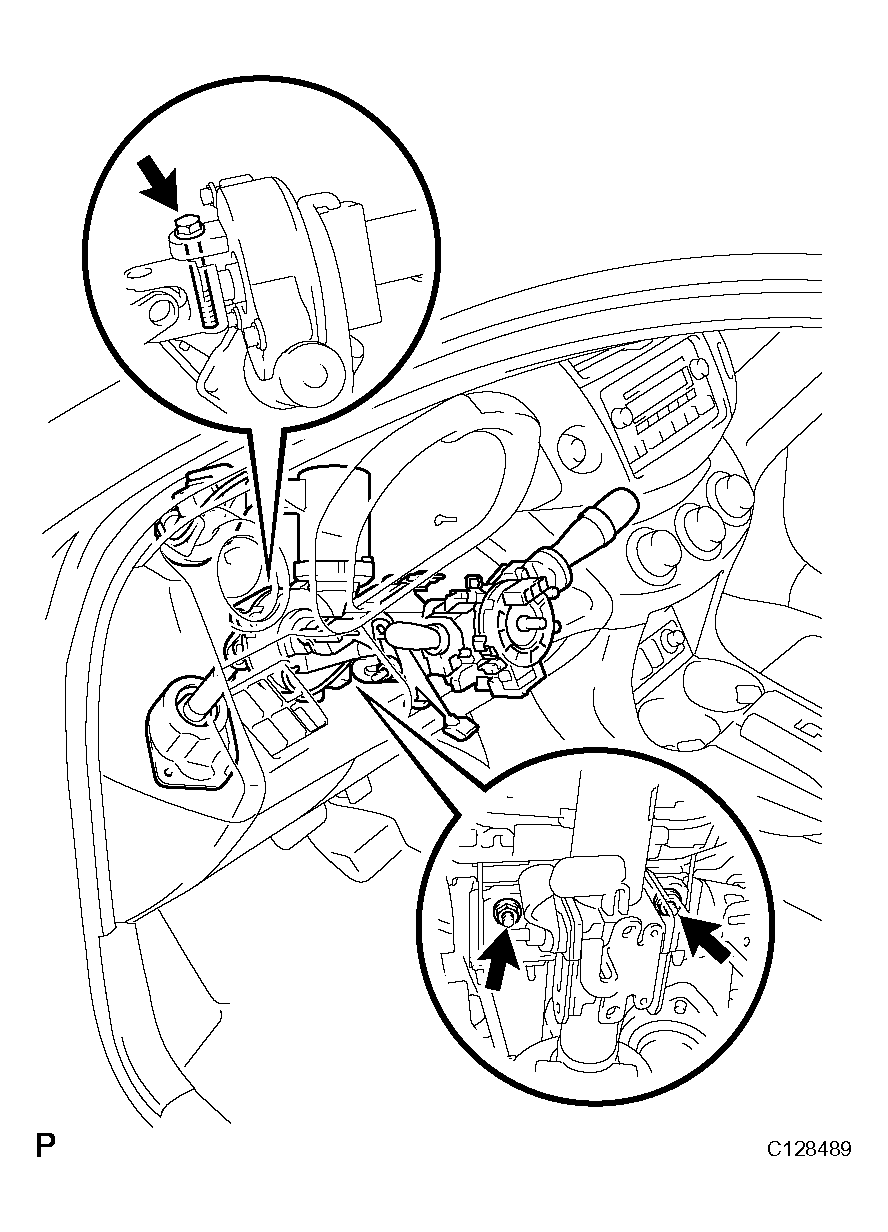

1. Disconnect all connectors and detach all wire harness clamps from the steering column.
2. Remove the bolt and 2 nuts and remove the steering column from the instrument panel reinforcement.

  Fig 10: Removing Steering Column Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
