Front Axle Hub: Installation

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT AXLE HUB BEARING
    1. Using SST and a press, install a new front axle hub bearing to the steering knuckle.

      SST 09950-60020 (09951-00810), 09950-70010 (09951-07100)

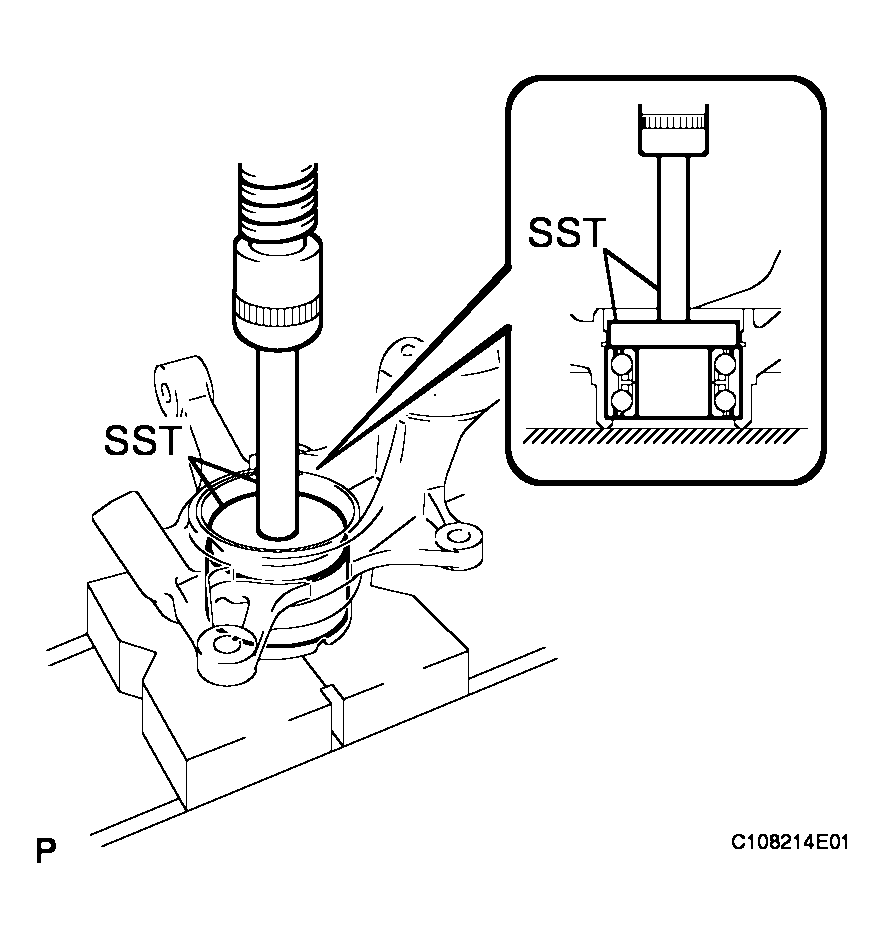

    Fig 1: Identifying Front Axle Hub Bearing
    G04112937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT LOWER BALL JOINT ASSEMBLY (See  INSTALLATION  )
  3. INSTALL FRONT DISC BRAKE DUST COVER
    1. Install the disc brake dust cover to the steering knuckle with the 4 bolts.

      Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

  4. INSTALL FRONT AXLE HUB SUB-ASSEMBLY
    1. Using SST and a press, install the front axle hub sub-assembly.

      SST 09608-32010, 09950-60020 (09951-00810), 09950-70010 (09951-07100)

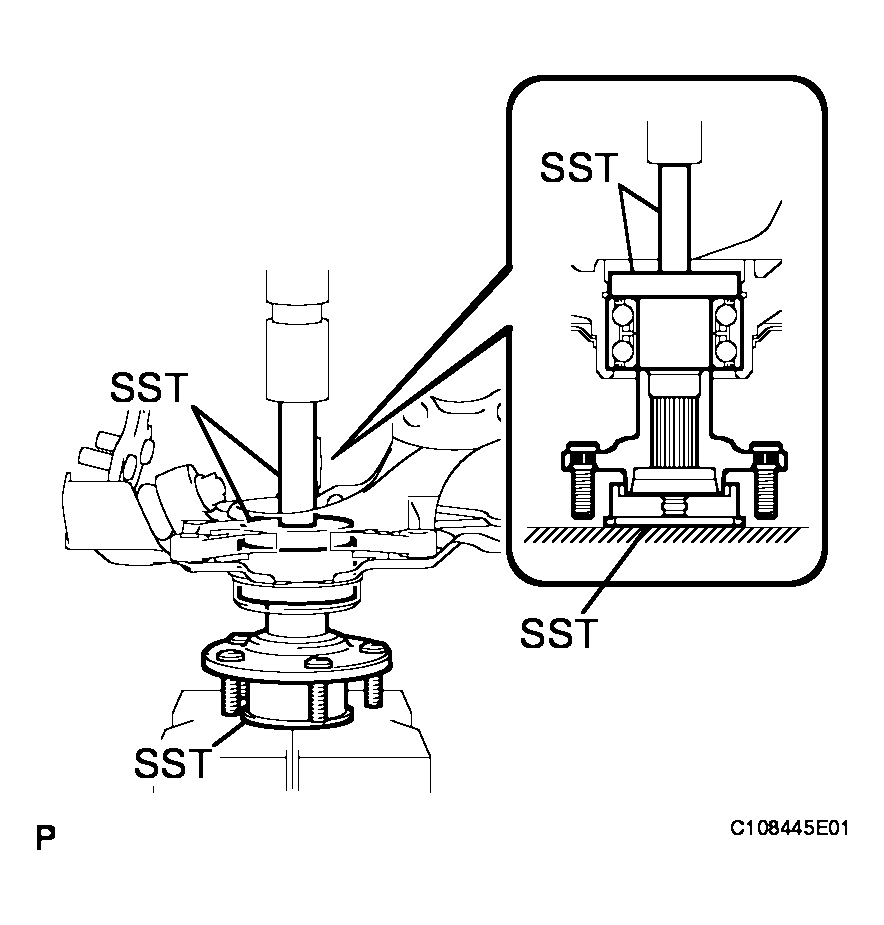

    Fig 2: Identifying Front Axle Hub Sub-Assembly
    G04112938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT AXLE HUB HOLE SNAP RING
    1. Using snap ring pliers, install a new front axle hub hole snap ring.

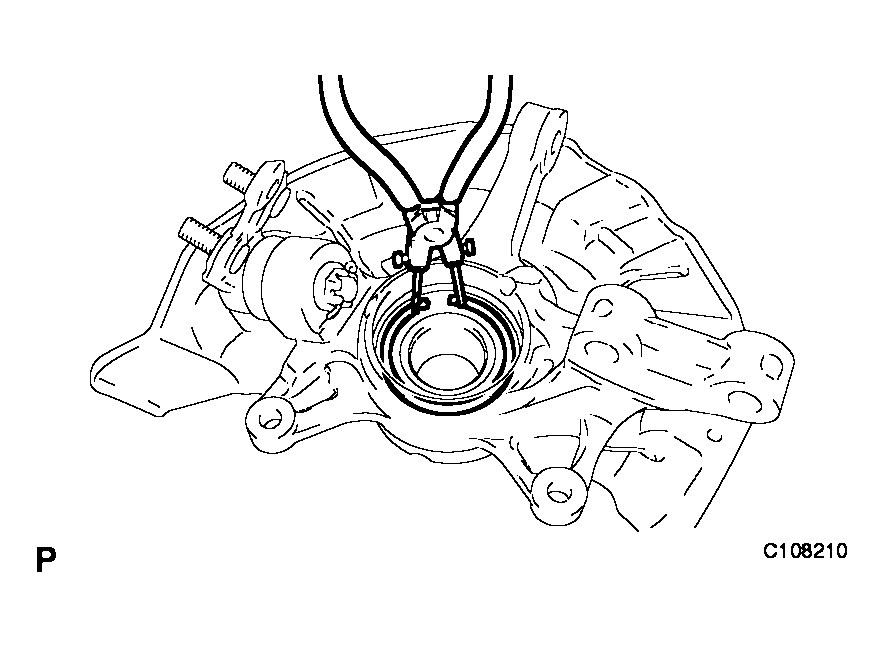

      Fig 3: Installing Front Axle Hub Hole Snap Ring
      G04112939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT WHEEL BEARING DUST DEFLECTOR NO. 1
    1. Using SST and a hammer, install the bearing dust deflector No. 1.

      SST 09316-60011 (09316-00011, 09316-00031), 09608-32010

      HINT:

      Align the hole for the speed sensor in the bearing dust deflector No. 1 with the steering knuckle.

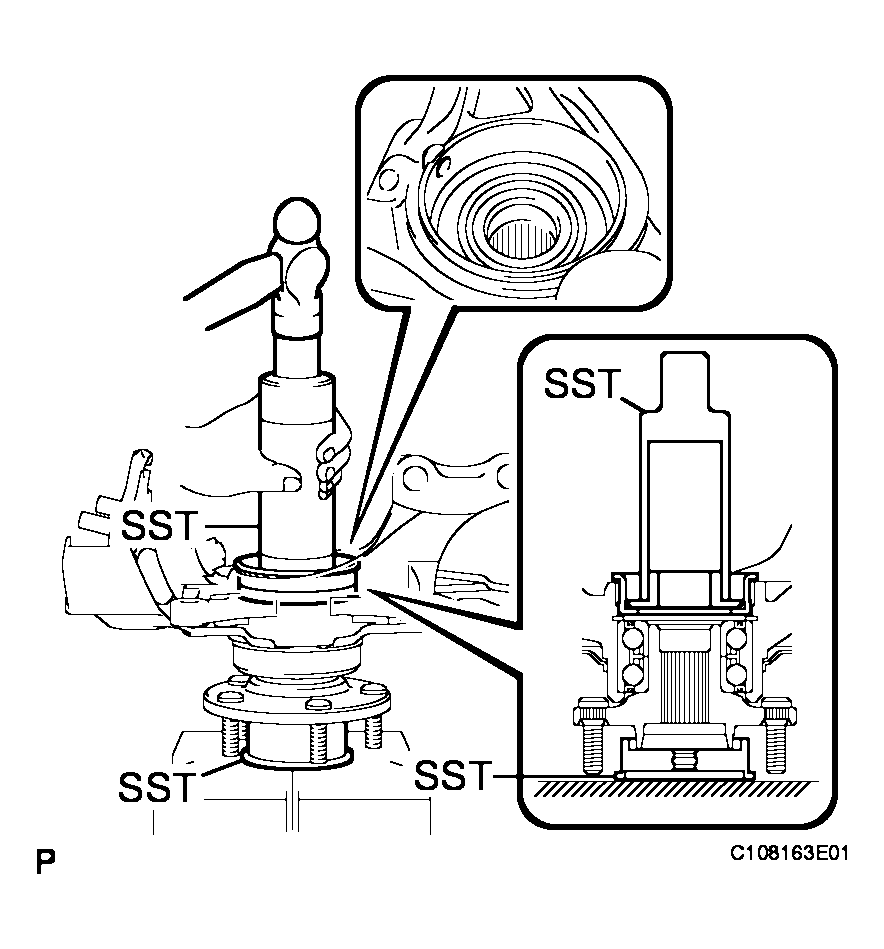

    Fig 4: Installing Front Wheel Bearing Dust Deflector No. 1
    G04112940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT AXLE ASSEMBLY
    1. Install the front axle assembly to the front drive shaft assembly.
      NOTE:
      • Be careful not to damage the outboard joint boot and speed sensor rotor.
      • Prevent foreign matter from adhering to the speed sensor rotor.
    2. Install the front axle assembly to the front shock absorber assembly with the 2 bolts and nuts.

      Torque: 290 N*m (3,000 kgf*cm, 217 ft.*lbf)

      HINT:

      Insert the bolt from the front side of the vehicle and tighten the nut.

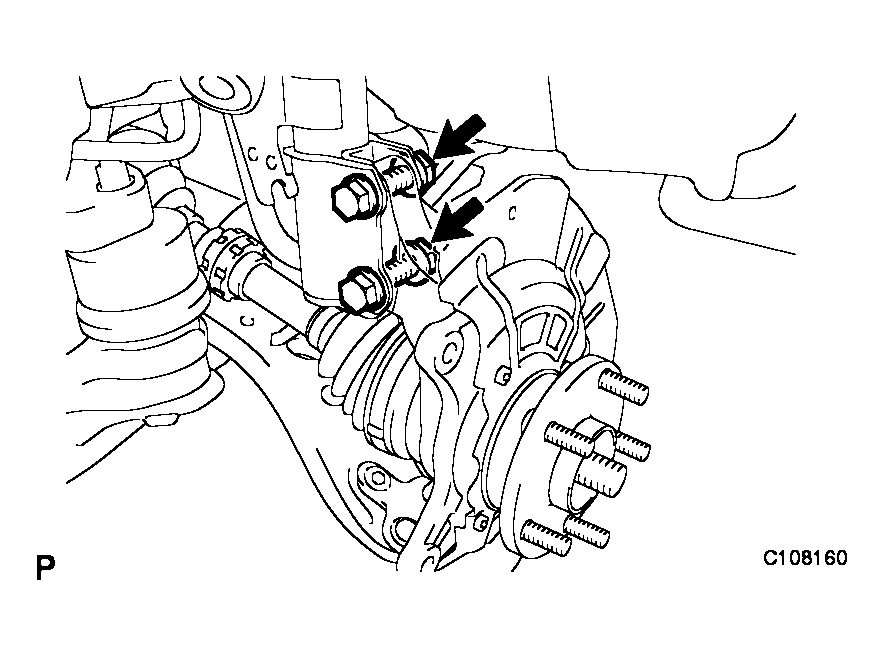

      Fig 5: Identifying Front Axle Assembly Bolts And Nuts
      G04112941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONNECT FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO. 1 (See  INSTALLATION  )
  9. CONNECT TIE ROD ASSEMBLY
    1. Install the tie rod end to the steering knuckle with the nut.

      Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

    2. Install a new cotter pin.
      NOTE: If the holes for the cotter pin are not aligned, tighten the castle nut up to 60° further.
  10. INSTALL FRONT DISC (See  REASSEMBLY  )
  11. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY
    1. Install the front disc brake caliper assembly with the 2 bolts to the steering knuckle.

      Torque: 104 N*m (1,060 kgf*cm, 77 ft.*lbf)

    Fig 6: Identifying Front Disc Brake Caliper Assembly
    G04112942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL FRONT SPEED SENSOR (See  INSTALLATION  )
  13. INSTALL FRONT AXLE HUB NUT
    1. Using a socket wrench (30 mm), install a new axle hub nut.

      Torque: 294 N*m (3,000 kgf*cm, 217 ft.*lbf)

      NOTE: Stake the nut after inspecting for looseness and runout in the following steps.
  14. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY
    1. Remove the 2 bolts, and separate the front disc brake caliper assembly.
      NOTE: Use a wire or an equivalent to keep the brake caliper from hanging down by the flexible hose.

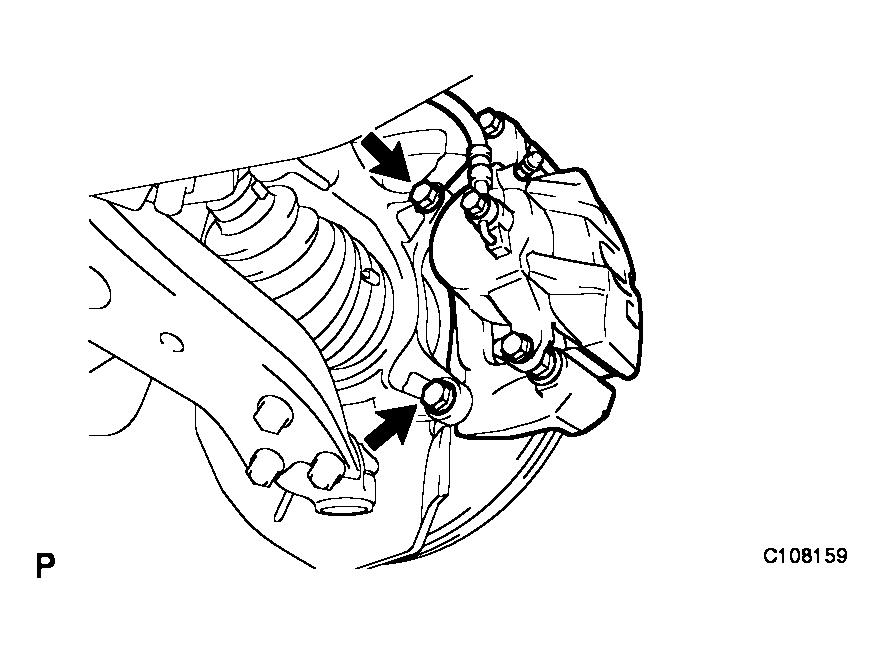

    Fig 7: Identifying Front Disc Brake Caliper Assembly Bolts
    G04112943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FRONT DISC (See  DISASSEMBLY  )
  16. INSPECT FRONT AXLE HUB BEARING LOOSENESS (See  ON-VEHICLE INSPECTION   )
  17. INSPECT FRONT AXLE HUB RUNOUT (See  ON-VEHICLE INSPECTION   )
  18. INSTALL FRONT DISC (See  REASSEMBLY  )
  19. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY
    1. Install the front disc brake caliper assembly with the 2 bolts to the steering knuckle.

      Torque: 104 N*m (1,060 kgf*cm, 77 ft.*lbf)

      Fig 8: Identifying Front Disc Brake Caliper Assembly Bolts
      G04112944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL FRONT AXLE HUB NUT
    1. Using a chisel and hammer, stake the axle hub nut.

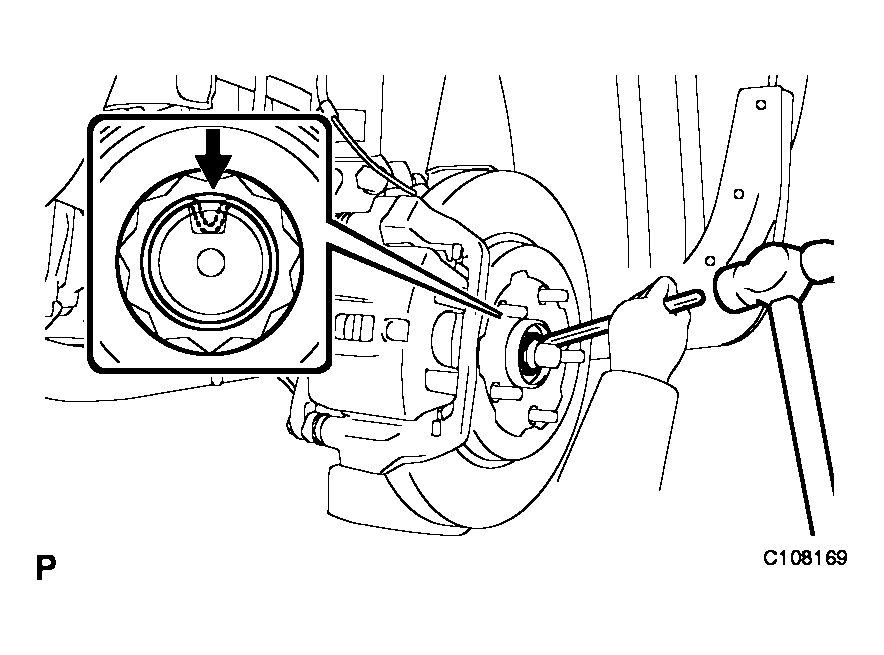

    Fig 9: Installing Front Axle Hub Nut
    G04112945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL FRONT WHEEL

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

  22. ADJUST FRONT WHEEL ALIGNMENT (See  ADJUSTMENT  )
  23. CHECK SPEED SENSOR SIGNAL

    (See TEST MODE PROCEDURE )
