Section 249 (Parking Brake)
›
Parking Brake Switch
›
Components
Parking Brake Switch: Components
WARNING:
This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

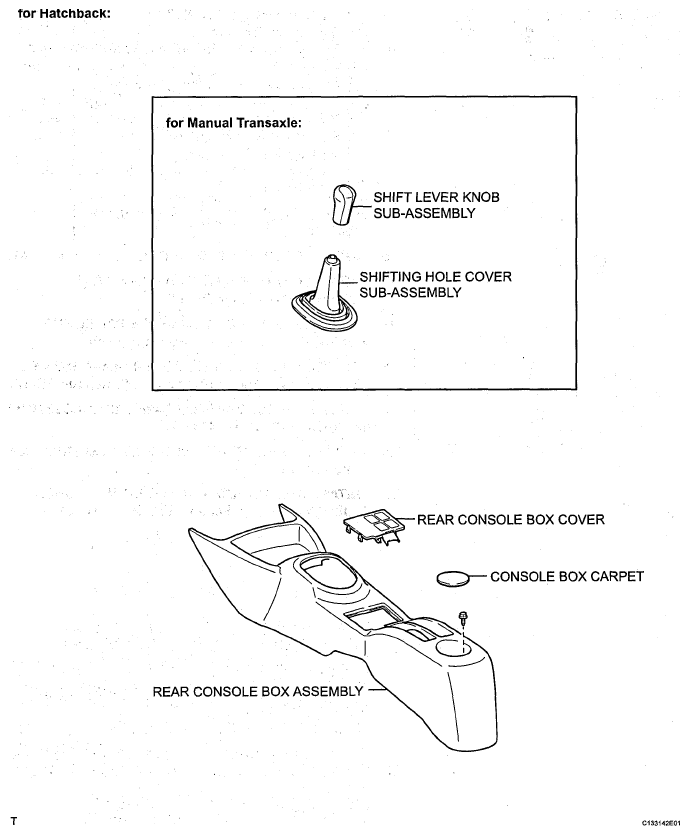

Fig 1: Identifying Parking Brake Switch Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

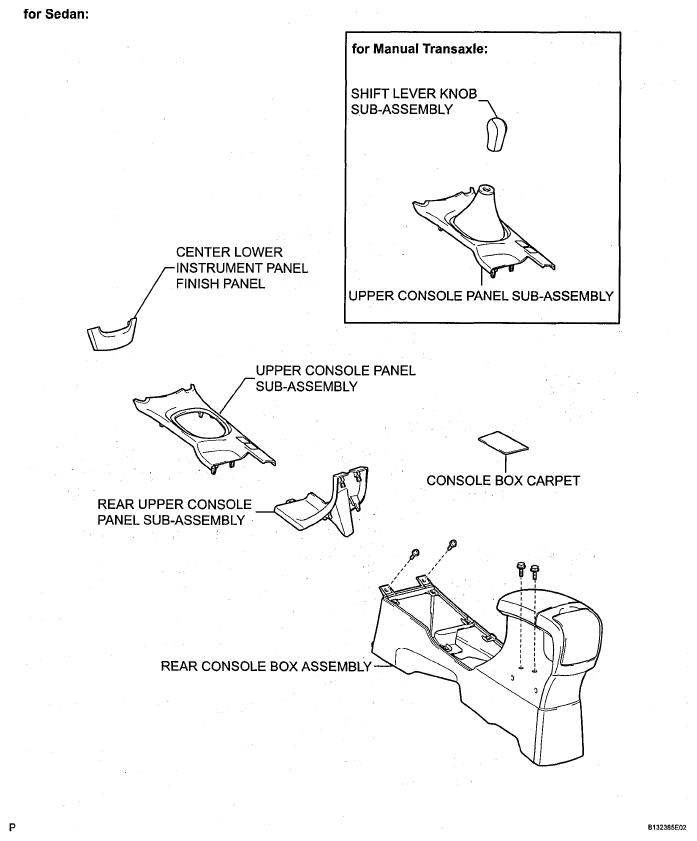

Fig 2: Identifying Parking Brake Switch Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

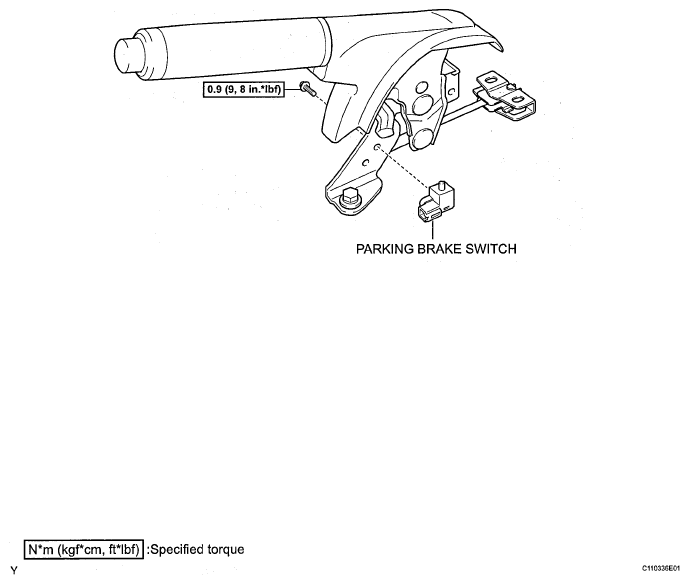

Fig 3: Parking Brake Switch Replacement Components (3 Of 3) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
