Front Axle Hub: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

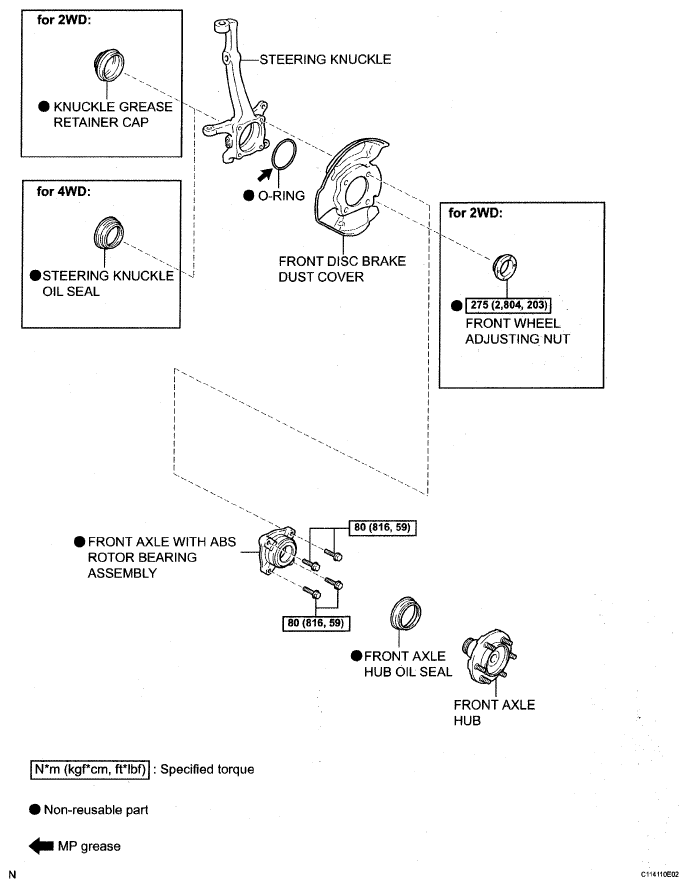

Fig 1: Front Axle Hub Replacement Components With Torque Specifications (1 Of 2)
