Headlight Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

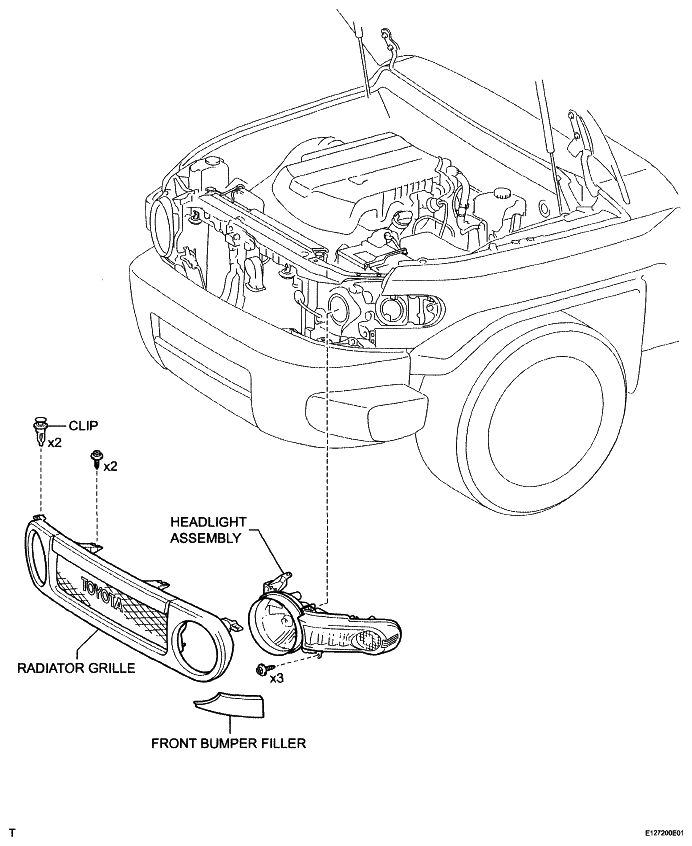

Fig 1: Identifying Headlight Components (1 Of 2)
G05113575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

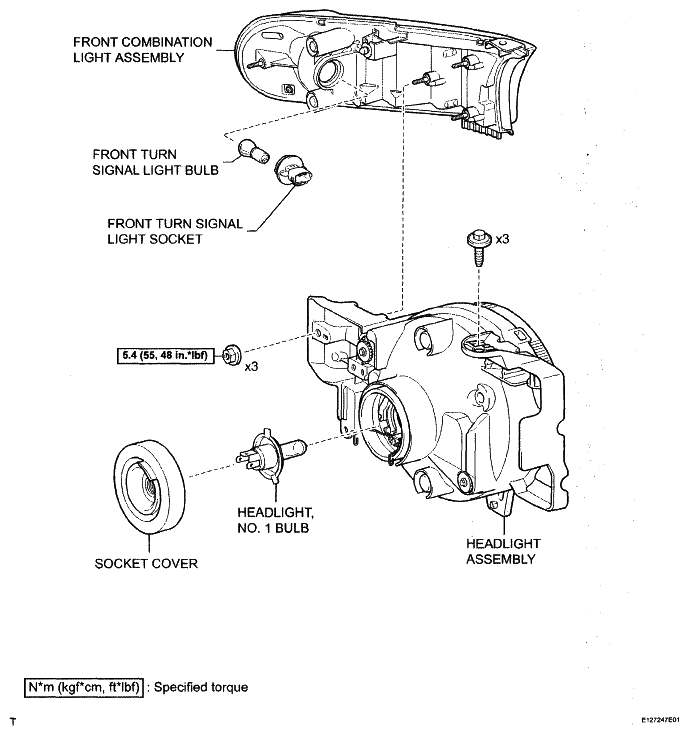

Fig 2: Headlight Replacement Components With Torque Specifications (2 Of 2)
G05113576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
