Roof Headlining: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Roof Headlining Replacement Components With Torque Specifications (1 Of 10)

G05115104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Roof Headlining Replacement Components With Torque Specifications (2 Of 10)

G05580560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

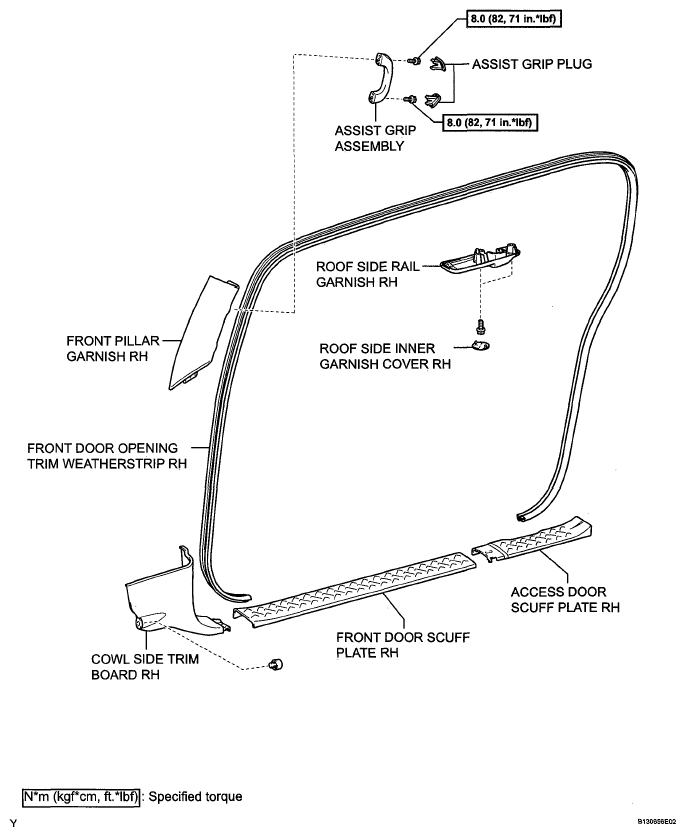

Fig 3: Identifying Roof Headlining Replacement Components With Torque Specifications (3 Of 10)

G05581286

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

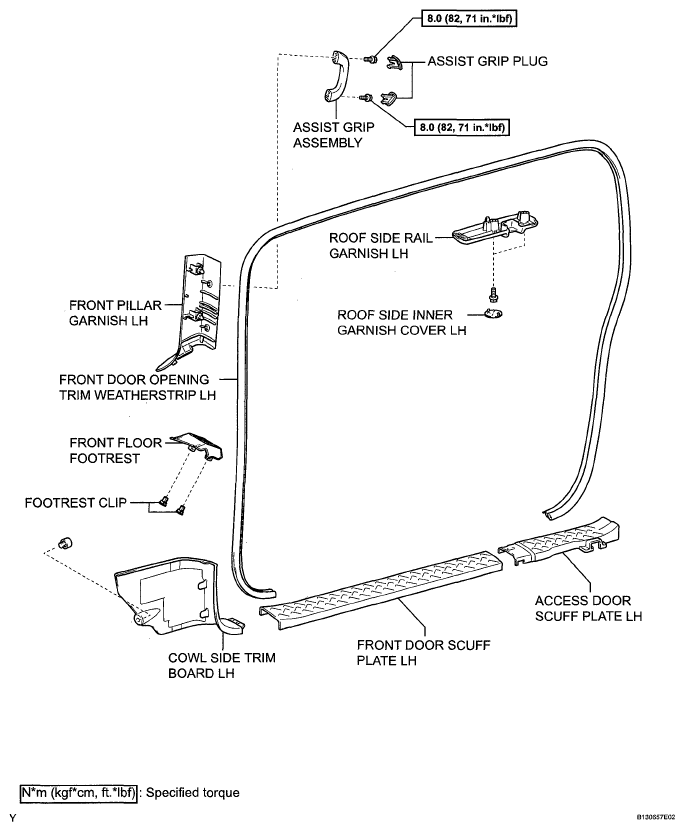

Fig 4: Identifying Roof Headlining Replacement Components With Torque Specifications (4 Of 10)

G05581287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

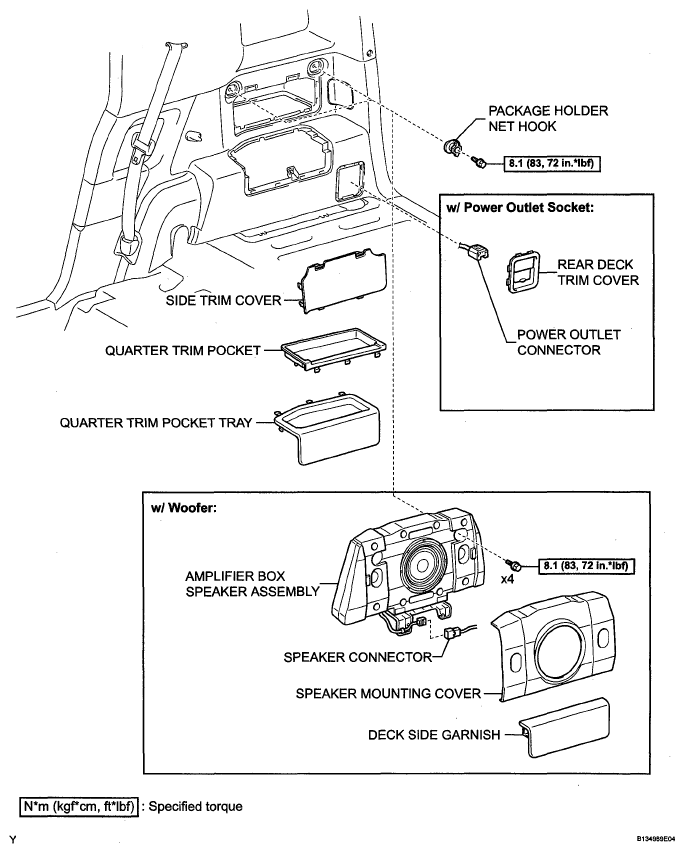

Fig 5: Identifying Roof Headlining Replacement Components With Torque Specifications (5 Of 10)

G05581288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

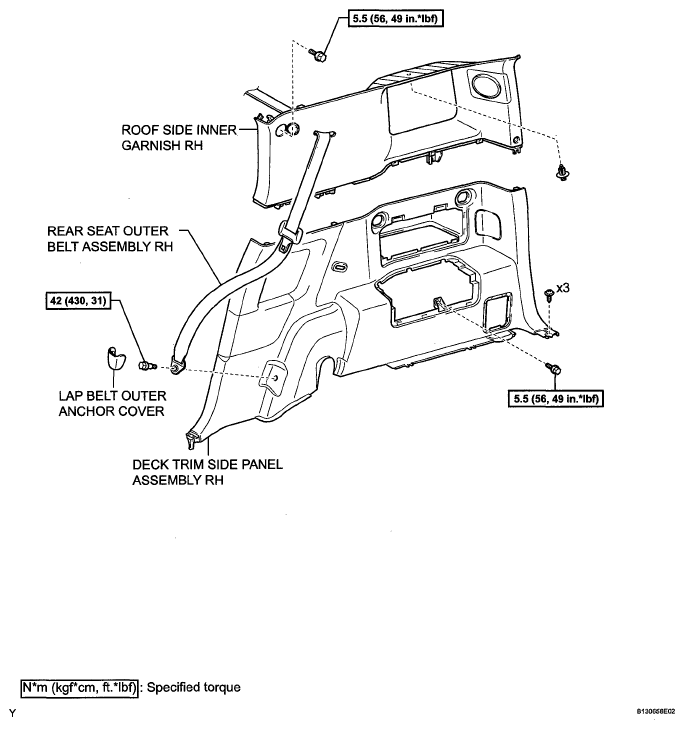

Fig 6: Identifying Roof Headlining Replacement Components With Torque Specifications (6 Of 10)

G05581289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

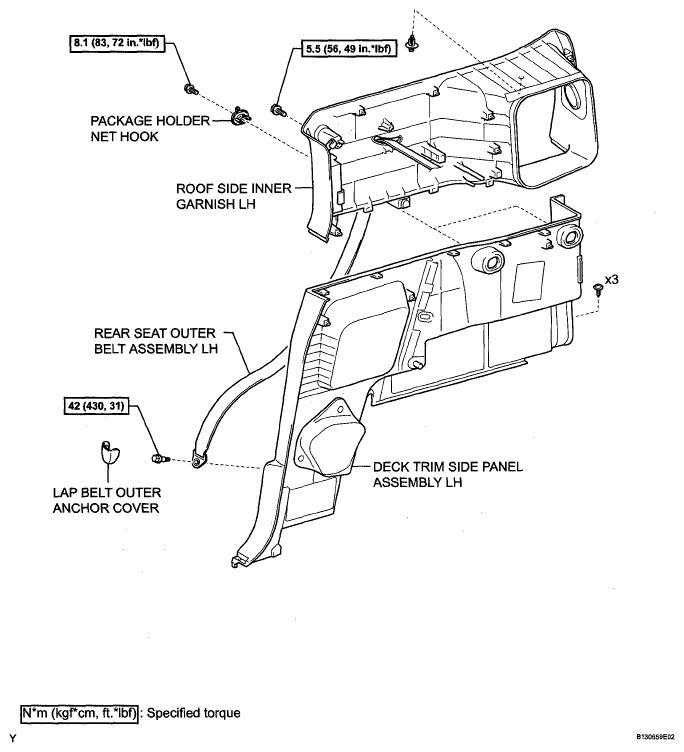

Fig 7: Identifying Roof Headlining Replacement Components With Torque Specifications (7 Of 10)

G05581290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

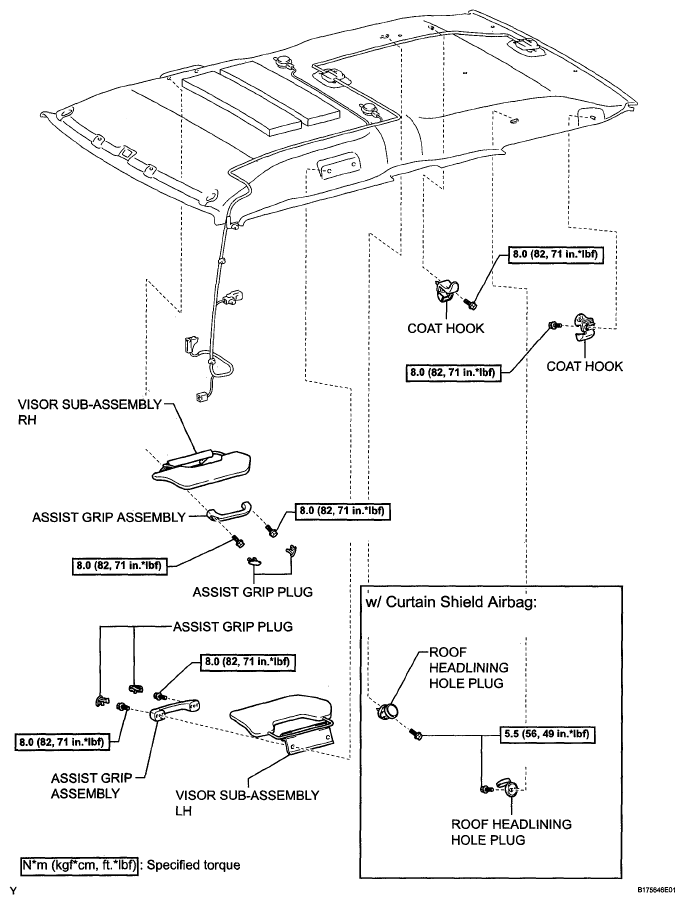

Fig 8: Identifying Roof Headlining Replacement Components With Torque Specifications (8 Of 10)

G05581090

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

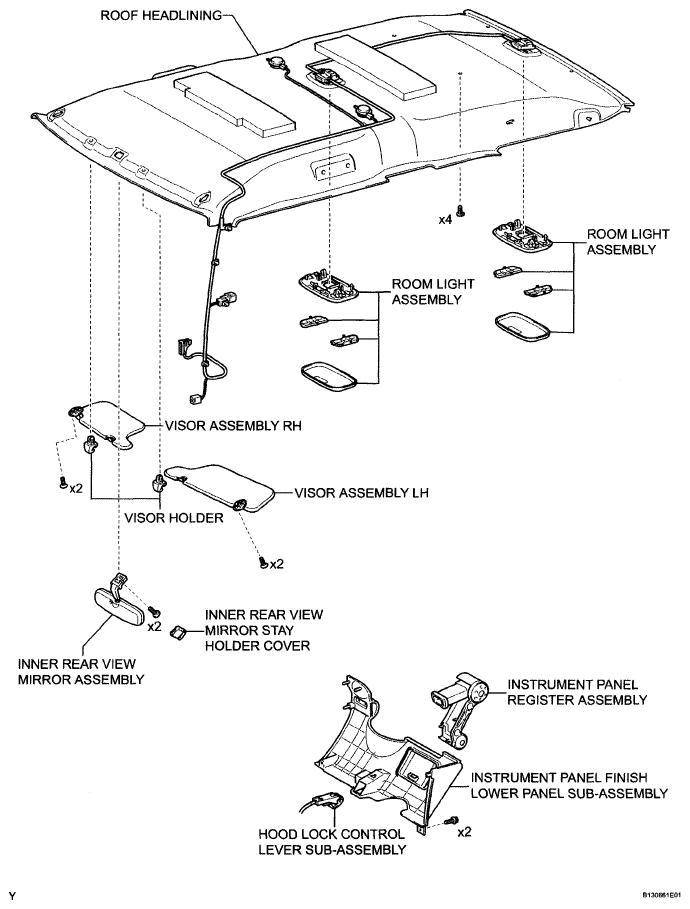

Fig 9: Identifying Roof Headlining Replacement Components With Torque Specifications (9 Of 10)

G05115112

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

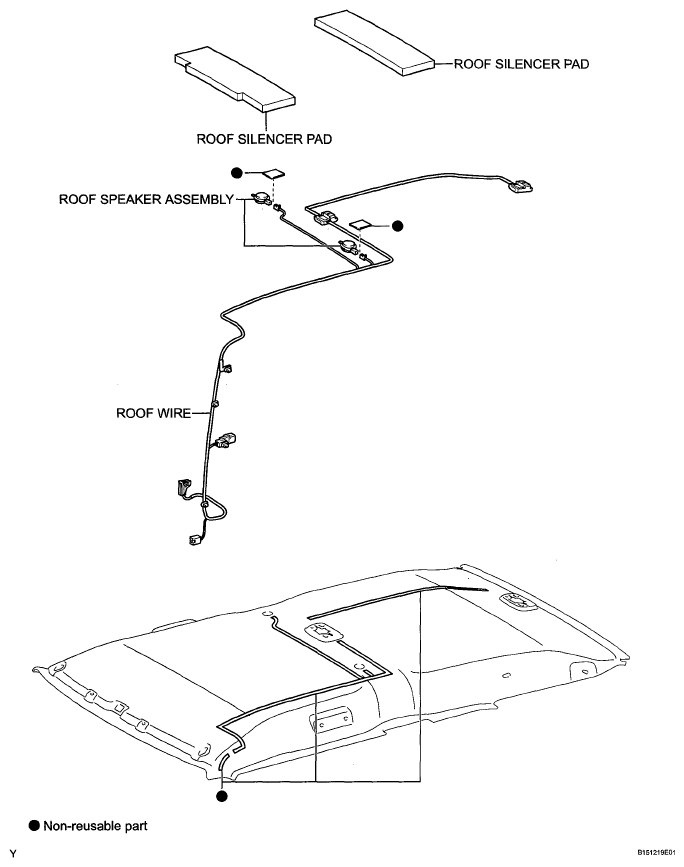

Fig 10: Identifying Roof Headlining Replacement Components (10 Of 10)

G05581293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
