Back-Up Light Assembly: Installation
WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL BACK-UP LIGHT ASSEMBLY
- Connect each connector.

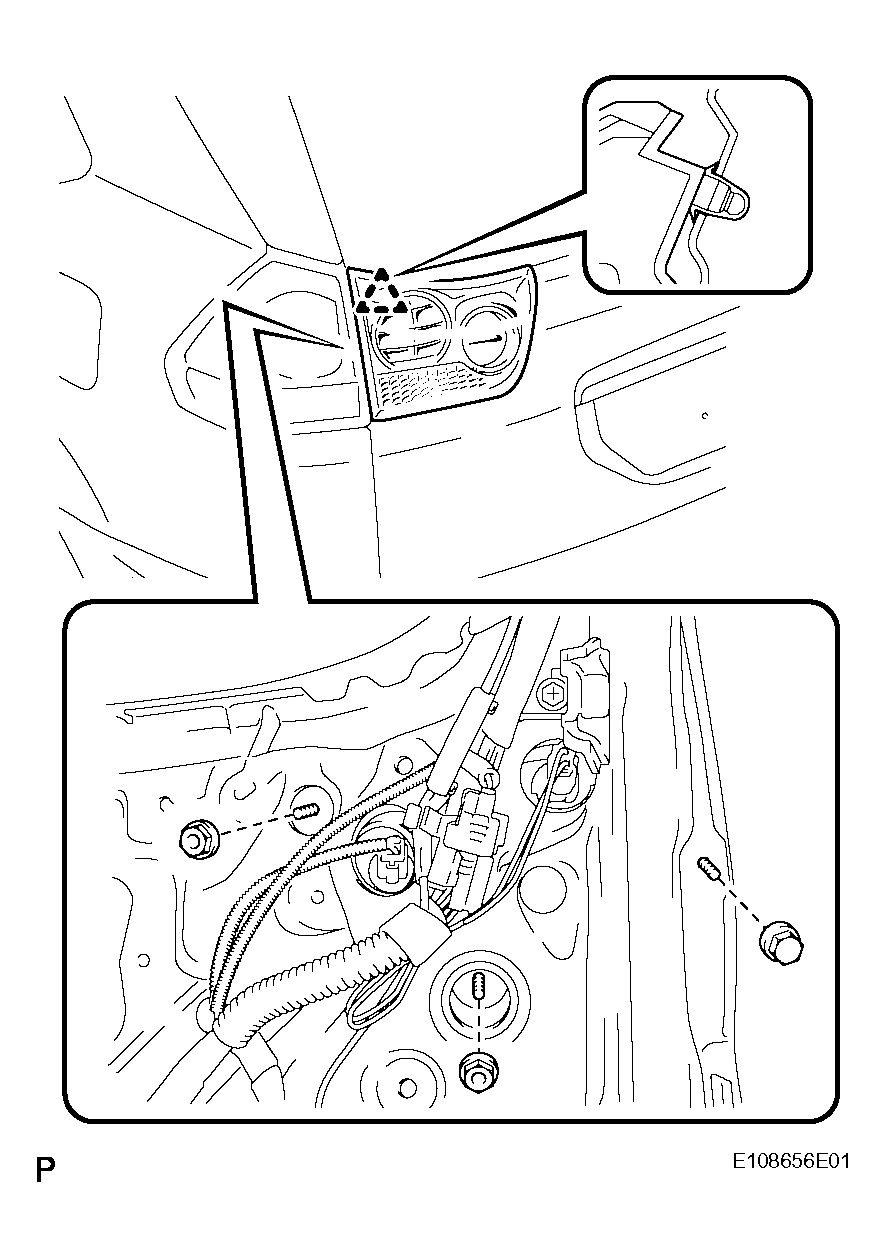

- Install the back-up light assembly with the 3 nuts and the clip.
- INSTALL BACK DOOR TRIM PANEL ASSEMBLY UPPER
