Fog Light Assembly: Installation
WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL FOG LIGHT ASSEMBLY

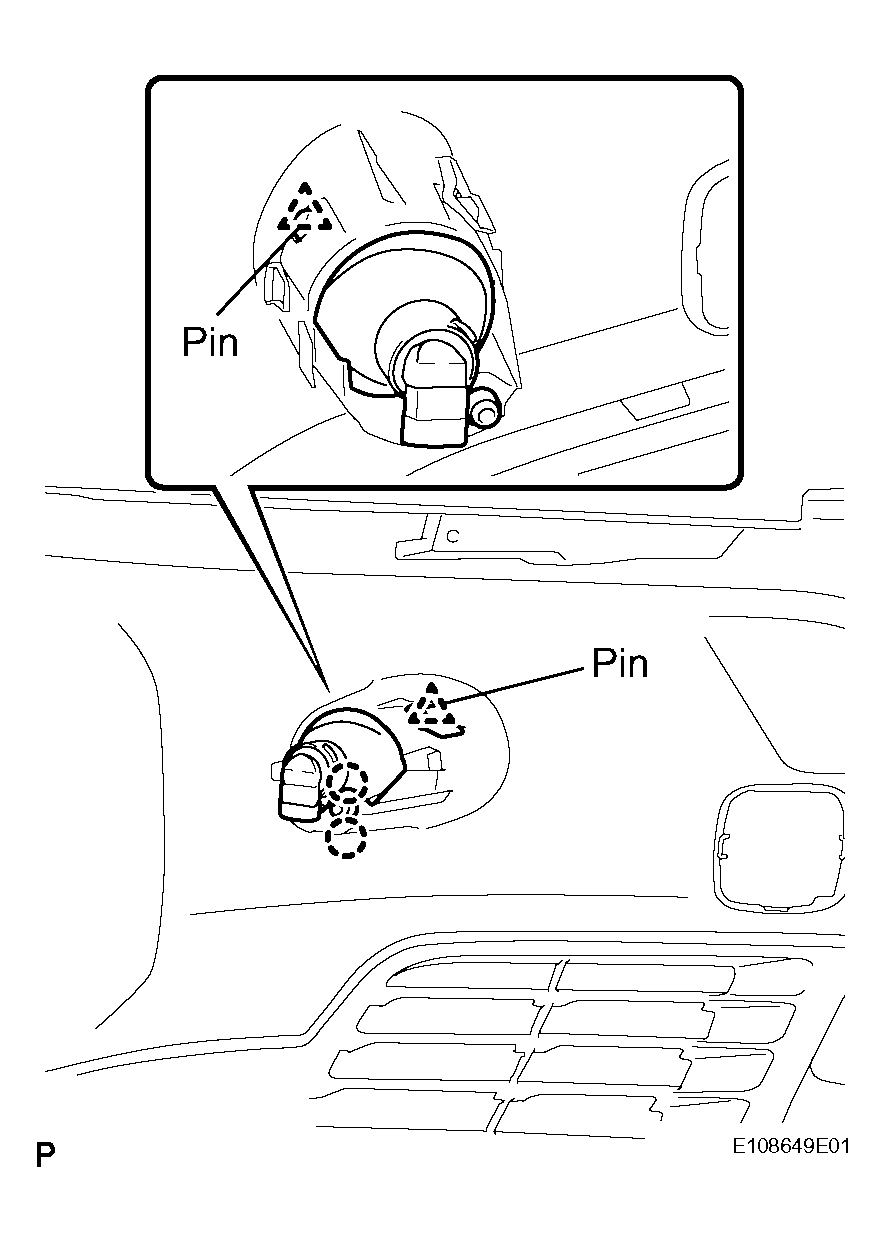

- Install the fog light assembly with the 2 claws and the 2 pins.
- INSTALL FOG LIGHT PROTECTOR
- INSTALL FRONT BUMPER ASSEMBLY
- INSTALL FRONT BUMPER STAY CENTER
- VEHICLE PREPARATION FOR FOG LIGHT AIM (See REMOVAL )
- PREPARATION FOR FOG LIGHT AIMING (See ADJUSTMENT )
- FOG LIGHT AIMING INSPECTION (See REASSEMBLY )
- FOG LIGHT AIMING ADJUSTMENT (See REASSEMBLY )
