Headlight Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO.2 HEADLIGHT BULB
    1. Remove the No.2 headlight bulb as shown in the illustration.

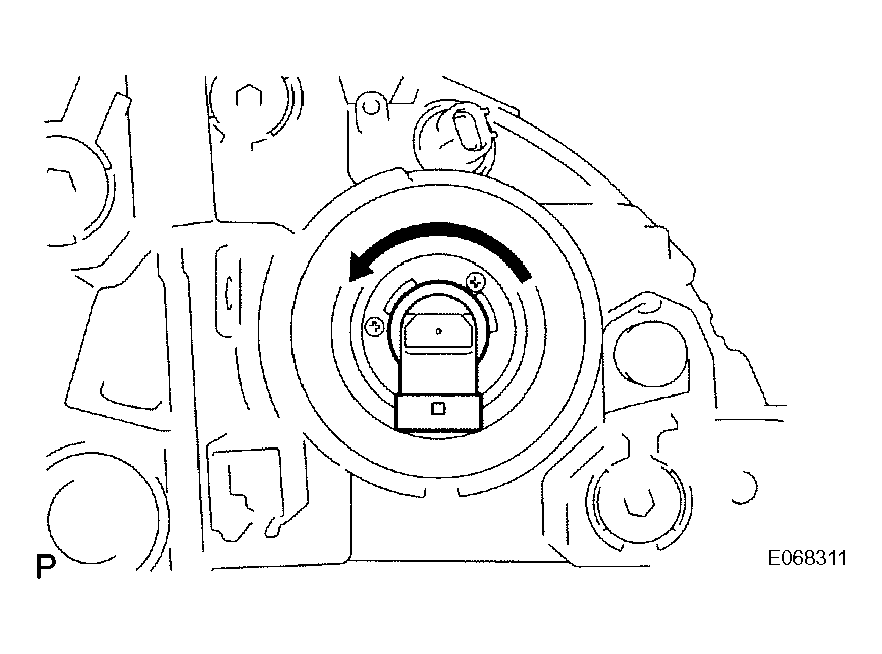

      Fig 1: Identifying No.2 Headlight Bulb
      G04115073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE HEADLIGHT SOCKET COVER
    1. Separate the headlight socket cover as shown in the illustration.
    2. Remove the headlight socket cover from the headlight cord.

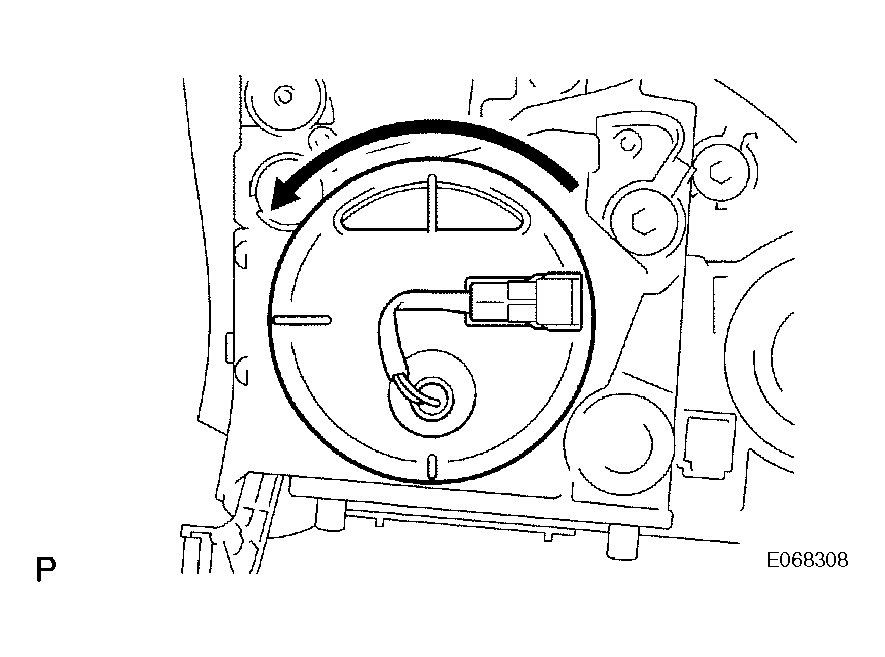

      Fig 2: Identifying Headlight Socket Cover
      G04115074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO.1 HEADLIGHT BULB
    1. Halogen headlight:
      1. Remove the No.1 headlight bulb as shown in the illustration.

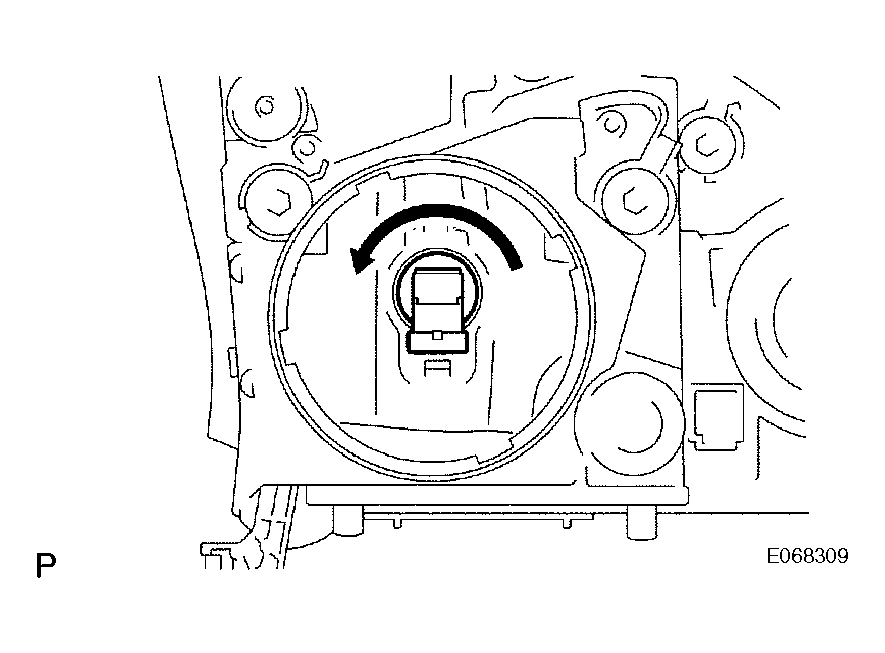

        Fig 3: Identifying No.1 Headlight Bulb (Halogen Headlight)
        G04115075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Discharge headlight:
      1. Separate the light control ECU socket as shown in the illustration.

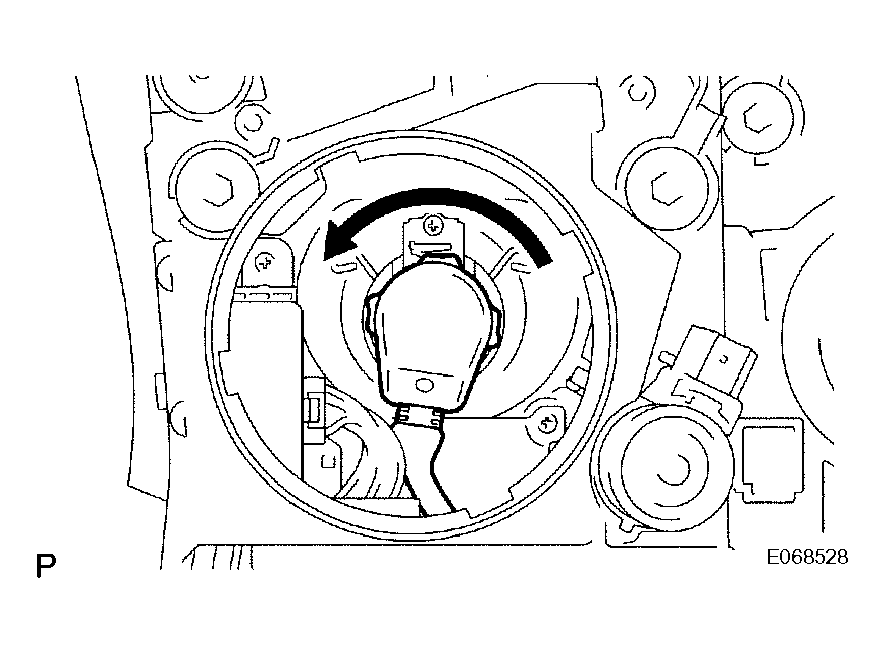

        Fig 4: Separating Light Control ECU Socket (Discharge Headlight)
        G04115076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Release the set spring and remove the No.1 headlight bulb.

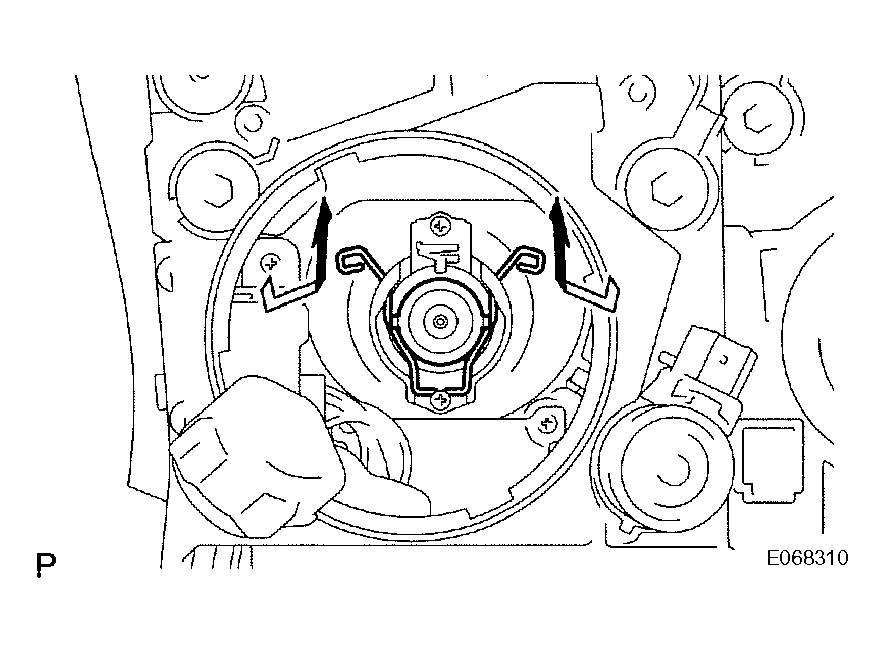

        Fig 5: Identifying No.1 Headlight Bulb (Discharge Headlight)
        G04115077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT TURN SIGNAL LIGHT BULB
    1. Turn in the direction indicated by the arrow and remove the front turn signal light bulb and the front turn signal light socket as a unit.
    2. Remove the front turn signal light bulb from the front turn signal light socket.

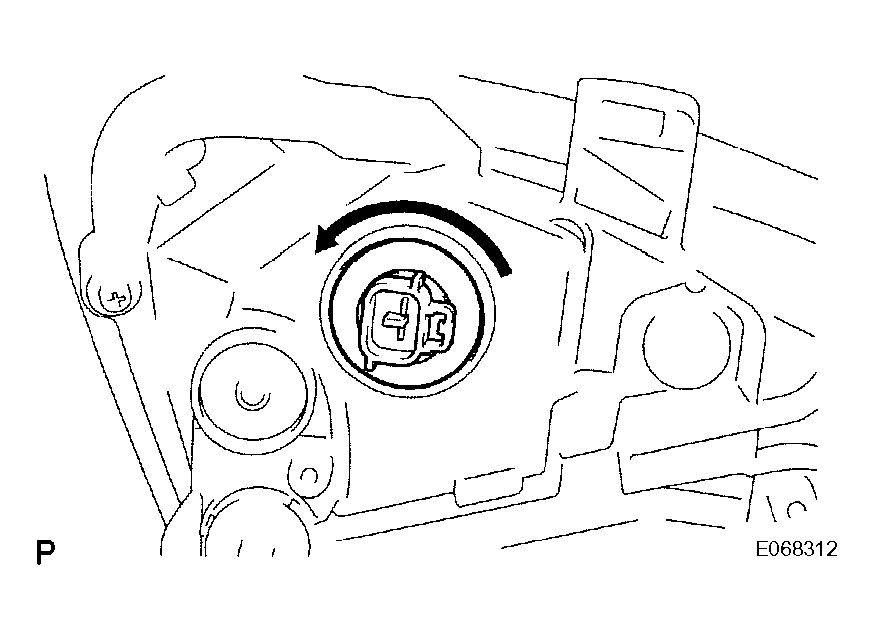

      Fig 6: Identifying Front Turn Signal Light Bulb
      G04115078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT TURN SIGNAL LIGHT SOCKET
  6. REMOVE FRONT SIDE MAKER LIGHT BULB
    1. Turn in the direction indicated by the arrow and remove the front side marker light bulb and the No.1 headlight socket as a unit.
    2. Remove the front side marker light bulb from the No.1 headlight socket.
      Fig 7: Identifying Front Side Maker Light Bulb
      G04115079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO.1 HEADLIGHT SOCKET
  8. REMOVE NO.1 HEADLIGHT COVER (w/ Discharge Headlight)
    1. Remove the 4 screws and No.1 headlight cover.
  9. REMOVE HEADLIGHT GASKET (w/ Discharge Headlight)
    Fig 8: Identifying No.1 Headlight Cover (W/ Discharge Headlight)
    G04115080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE LIGHT CONTROL ECU (w/ Discharge Headlight)
    1. Remove the 2 screws and separate the light control ECU.
      Fig 9: Separating Light Control ECU
      G04115081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw, disconnect the connector and remove the light control ECU.
      Fig 10: Identifying Light Control ECU
      G04115082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE LIGHT CONTROL ECU (w/ AFS)
    1. Remove the 2 screws and the cover.

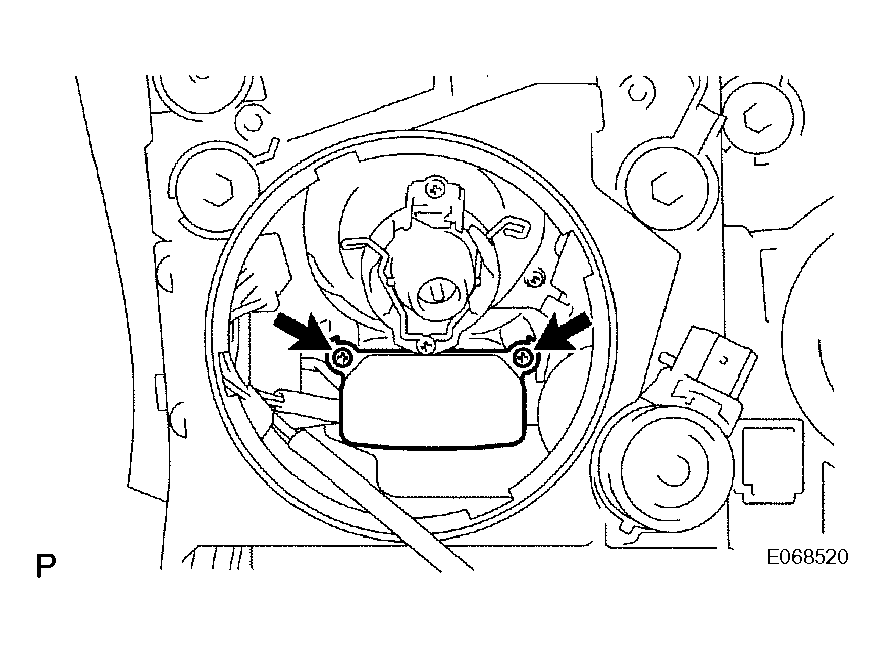

      Fig 11: Identifying Light Control ECU (W/ AFS) Cover
      G04115083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and separate the light control ECU.

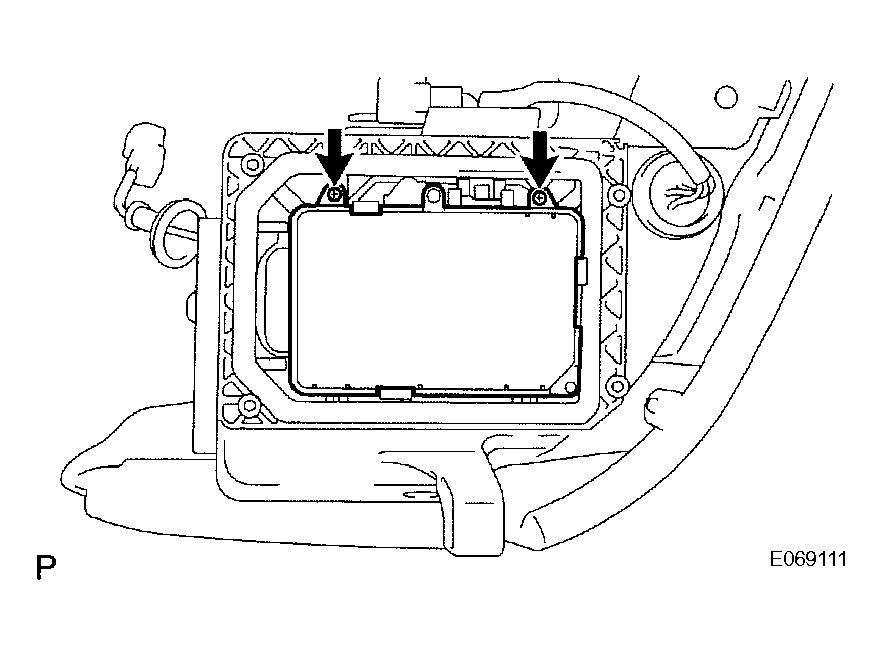

      Fig 12: Separating Light Control ECU
      G04115084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the claw and disconnect the connector and remove the light control ECU.
  12. REMOVE HEADLIGHT CORD (w/ Discharge Headlight)
    Fig 13: Identifying Light Control ECU (W/ AFS)
    G04115085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE HEADLIGHT LEVELING MOTOR (w/ Discharge Headlight)
    1. Turn in the direction indicated by the arrow and disengage the pin.

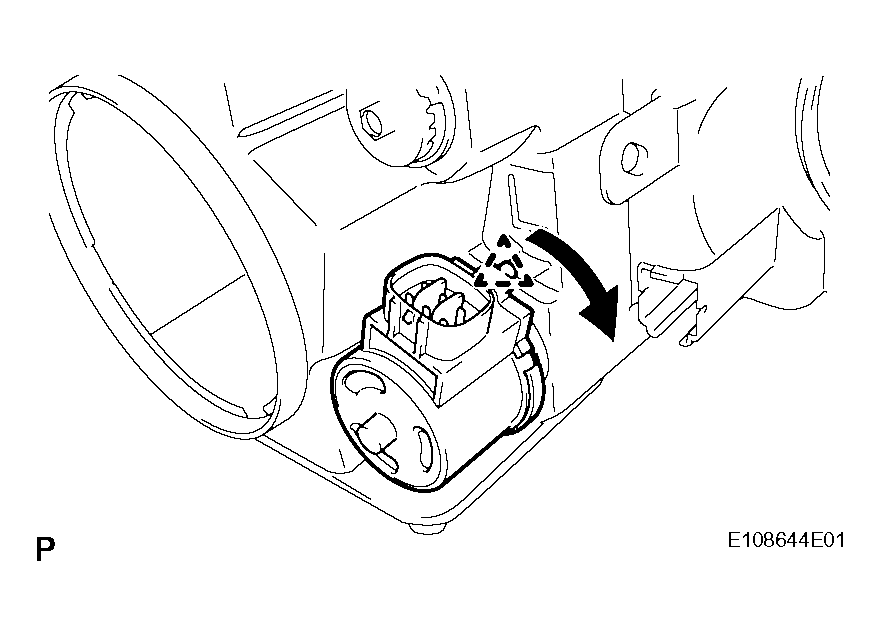

      Fig 14: Disengaging Headlight Leveling Motor (W/ Discharge Headlight) Pin
      G04115086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the headlight leveling motor to align the recessed parts with the headlight unit.
    3. Disengage the claw at the tip of the shaft, and remove the headlight leveling motor.
  14. REMOVE HEADLIGHT LEVELING MOTOR BASE PACKING (w/ Discharge Headlight)

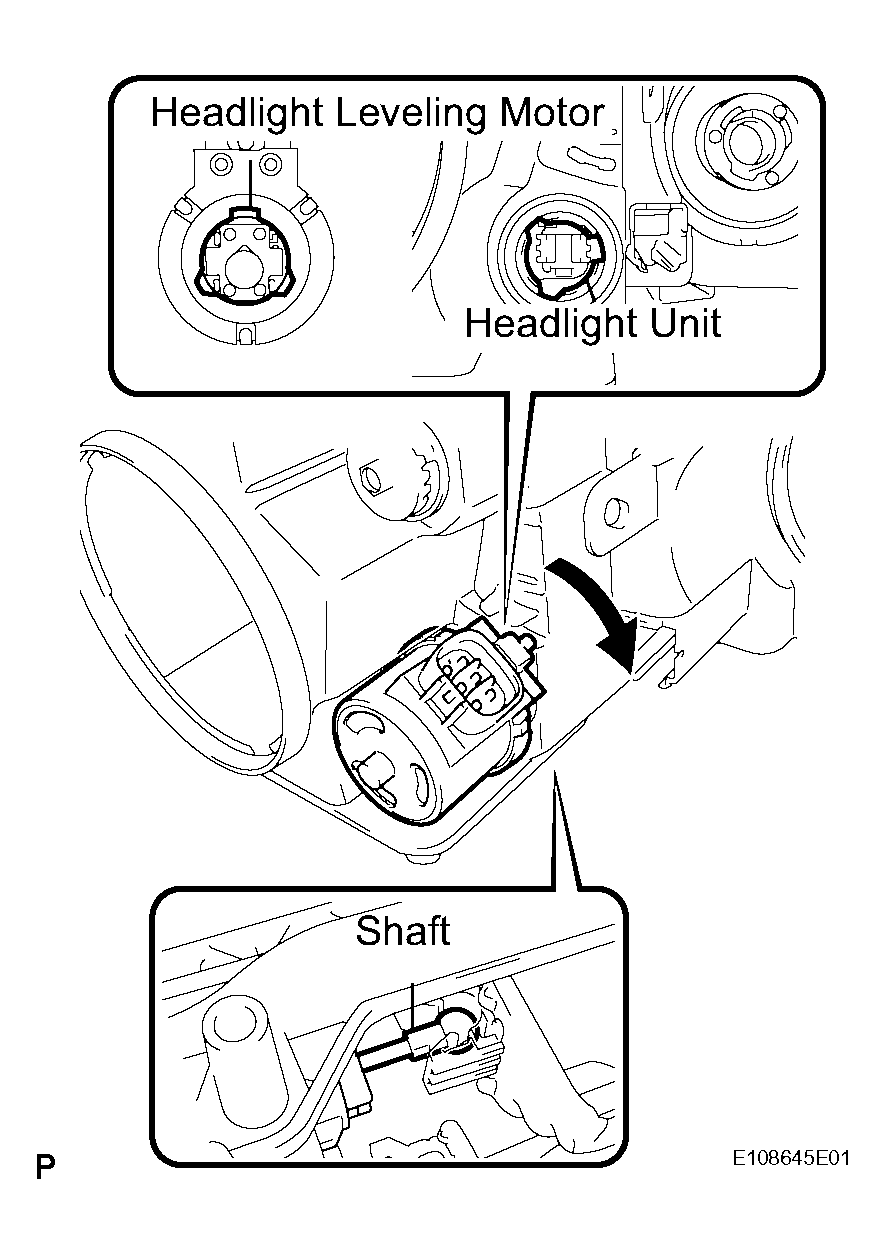

    Fig 15: Identifying Headlight Leveling Motor (W/ Discharge Headlight)
    G04115087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE HEADLIGHT SWIVEL ECU (w/ AFS)
    1. Disconnect the connector.
    2. Remove the screw and the headlight swivel ECU.

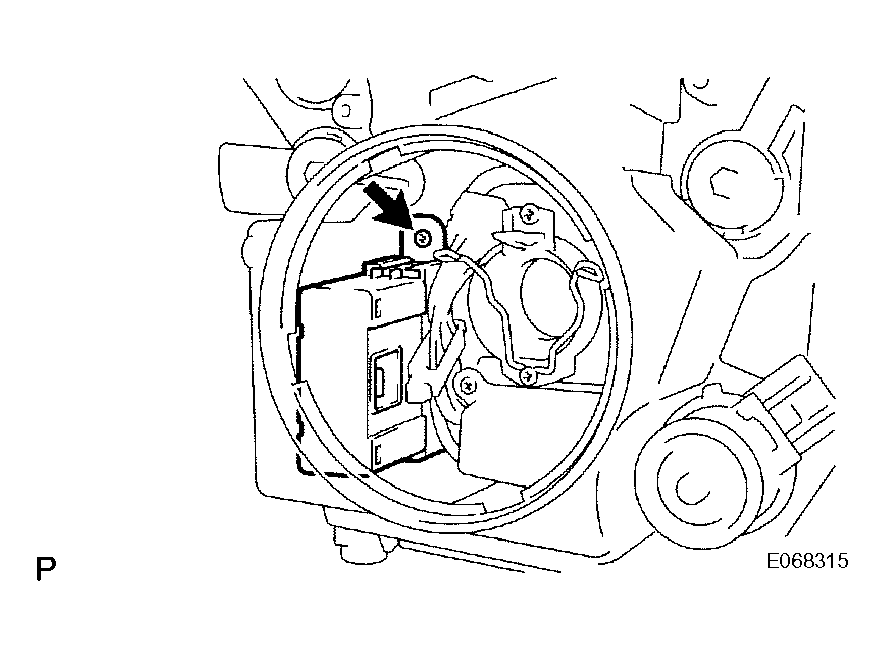

      Fig 16: Identifying Headlight Swivel ECU (W/ AFS)
      G04115088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE HEADLIGHT SWIVEL ACTUATOR (w/ AFS)
    1. Disconnect the connector.
    2. Remove the 2 screws and headlight swivel actuator.

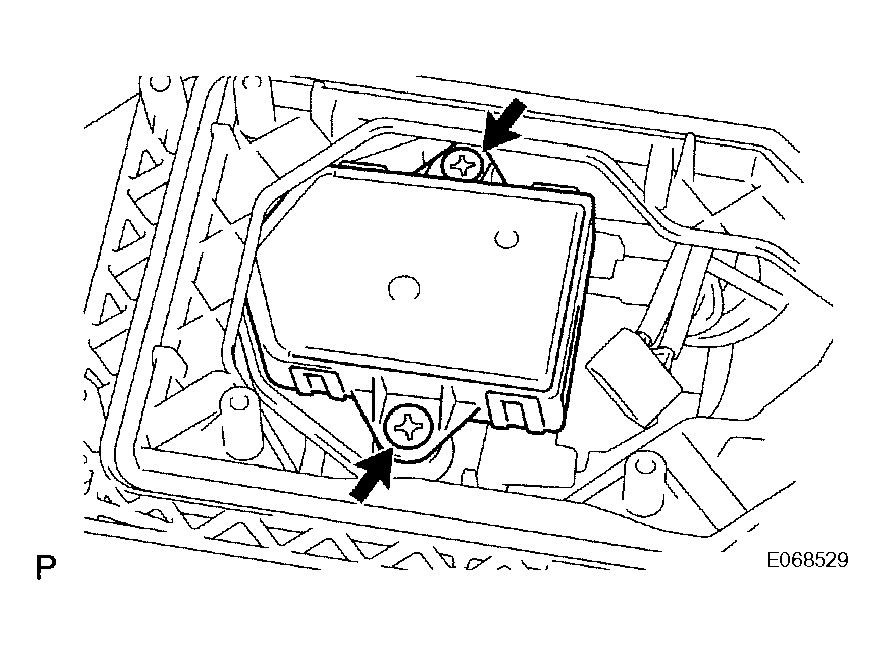

      Fig 17: Identifying Headlight Swivel Actuator (W/ AFS)
      G04115089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
