Headlight Assembly: Removal

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT BUMPER STAY CENTER (See REMOVAL )
REMOVE FRONT BUMPER ASSEMBLY (See REMOVAL )
REMOVE HEADLIGHT ASSEMBLY
1. Remove the 3 screws.

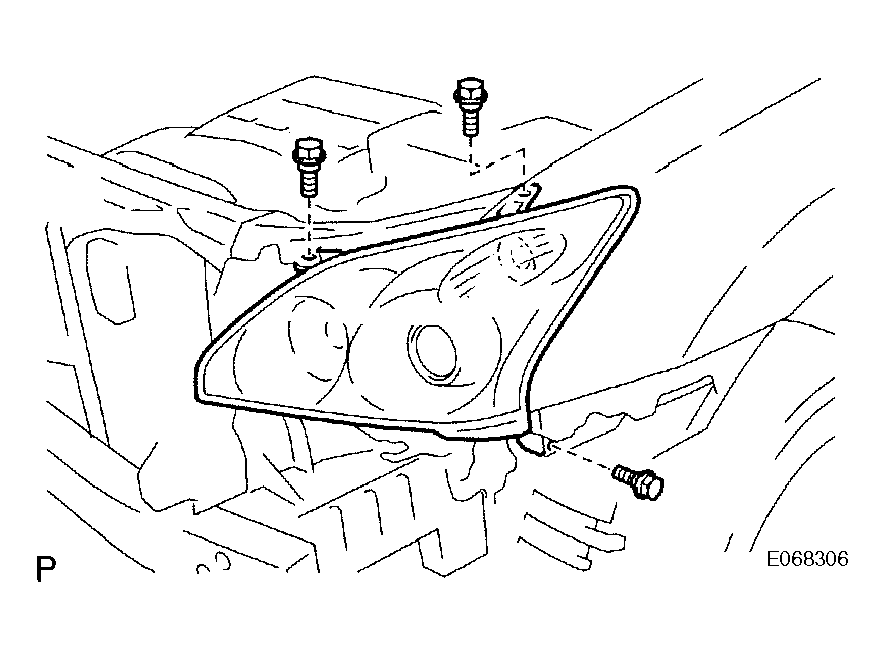

  Fig 1: Identifying Headlight Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the headlight assembly forward, then release the headlight bracket.

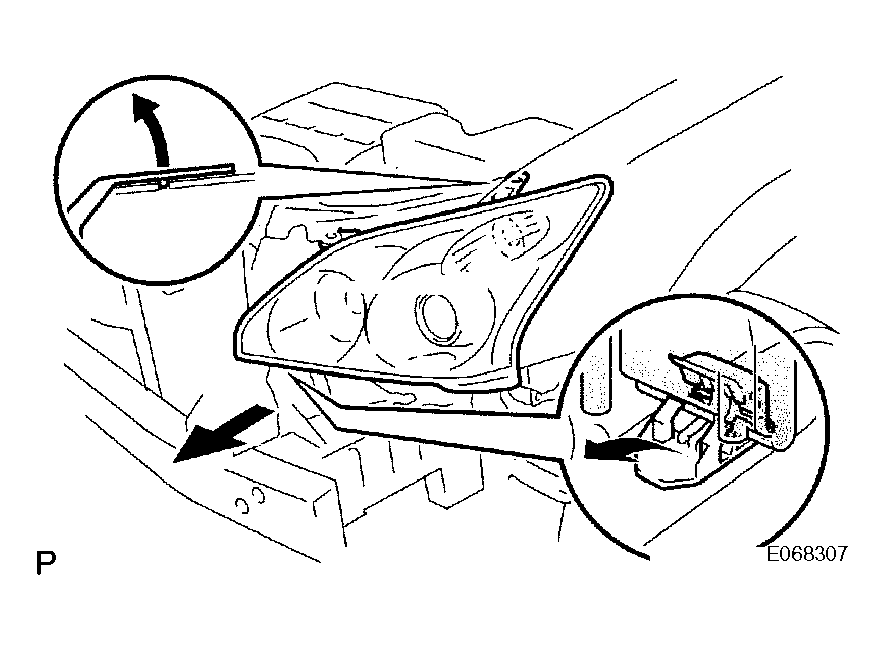

  Fig 2: Identifying Headlight Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect each connector and separate the headlight assembly.
4. Remove the clamp and headlight assembly.

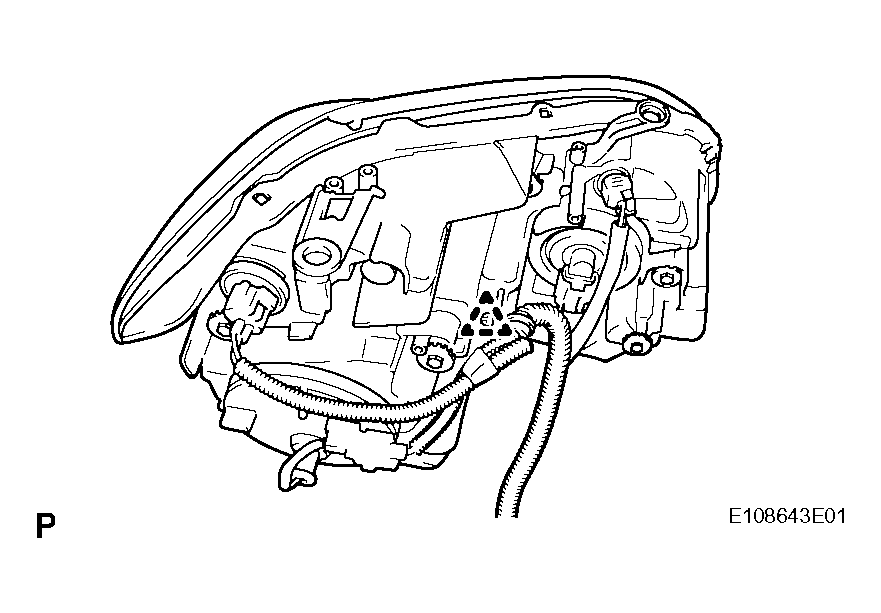

  Fig 3: Identifying Headlight Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT NO.2 BUMPER SIDE SUPPORT
1. Using needle nose pliers, release the 2 claw fittings and remove the front No.2 bumper side support from the headlight assembly.

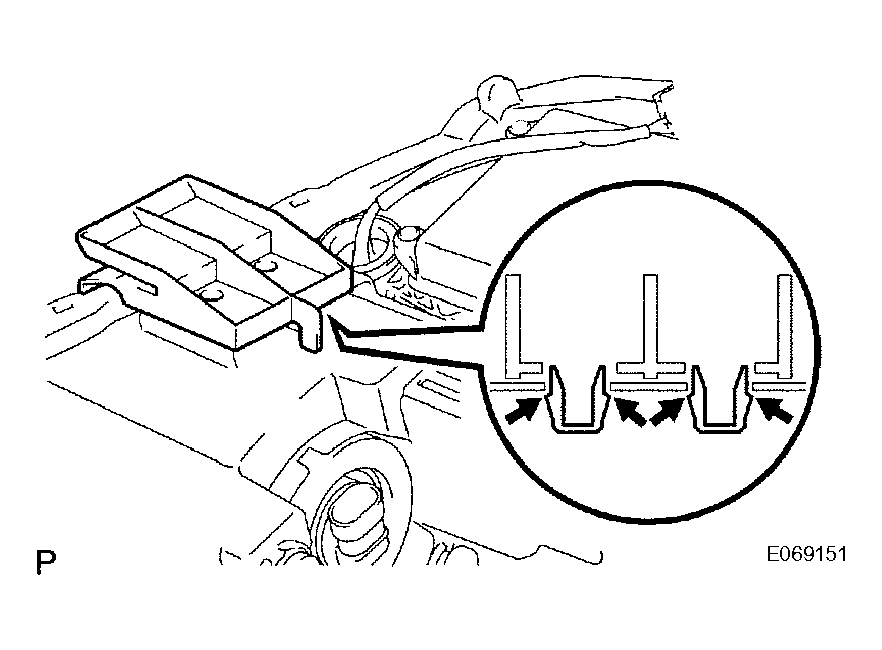

  Fig 4: Identifying Front No.2 Bumper Side Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
