Height Control Sensor: Components

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

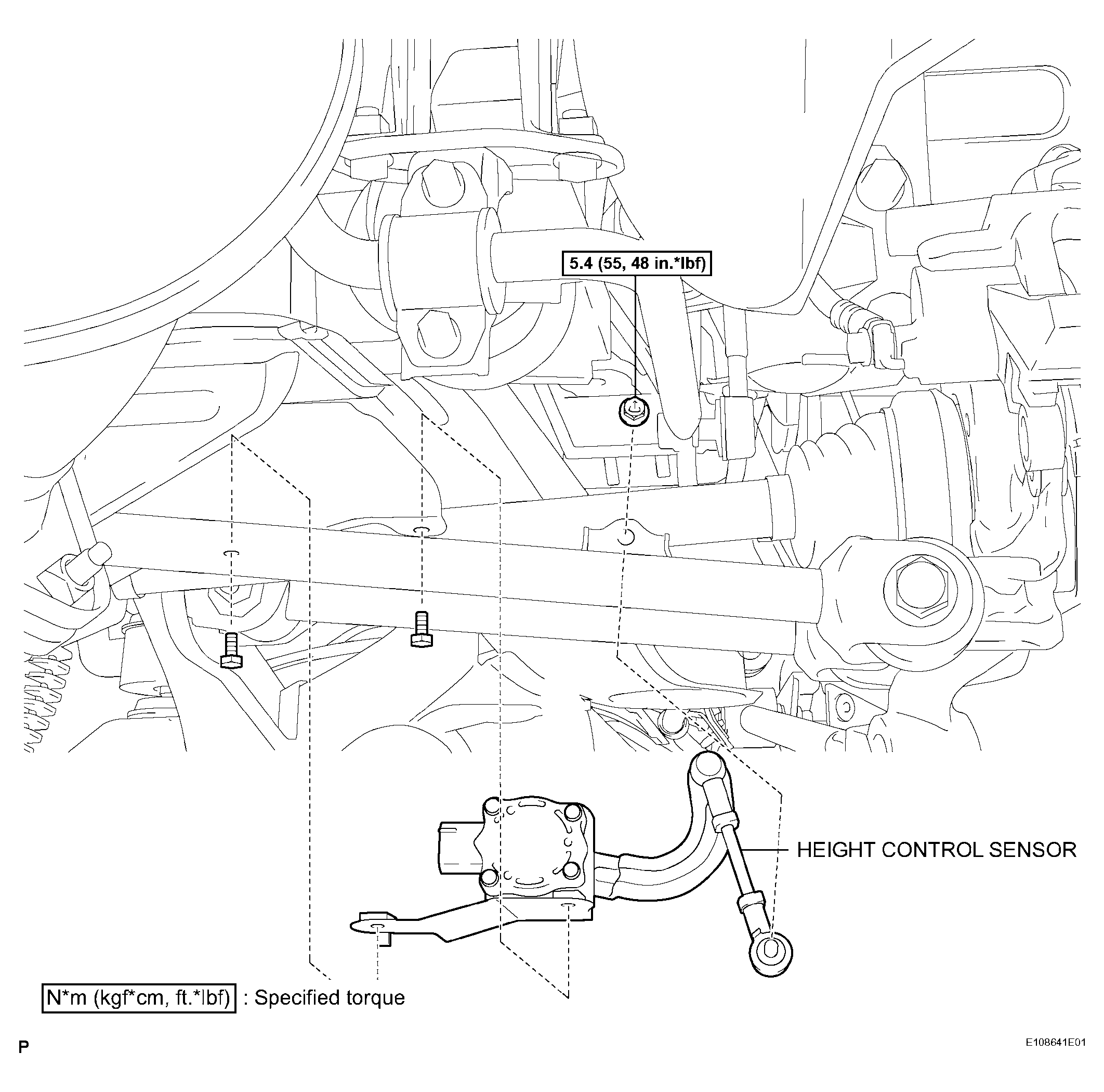

Fig 1: Height Control Sensor Replacement Components With Torque Specifications (2WD) (1 Of 2)

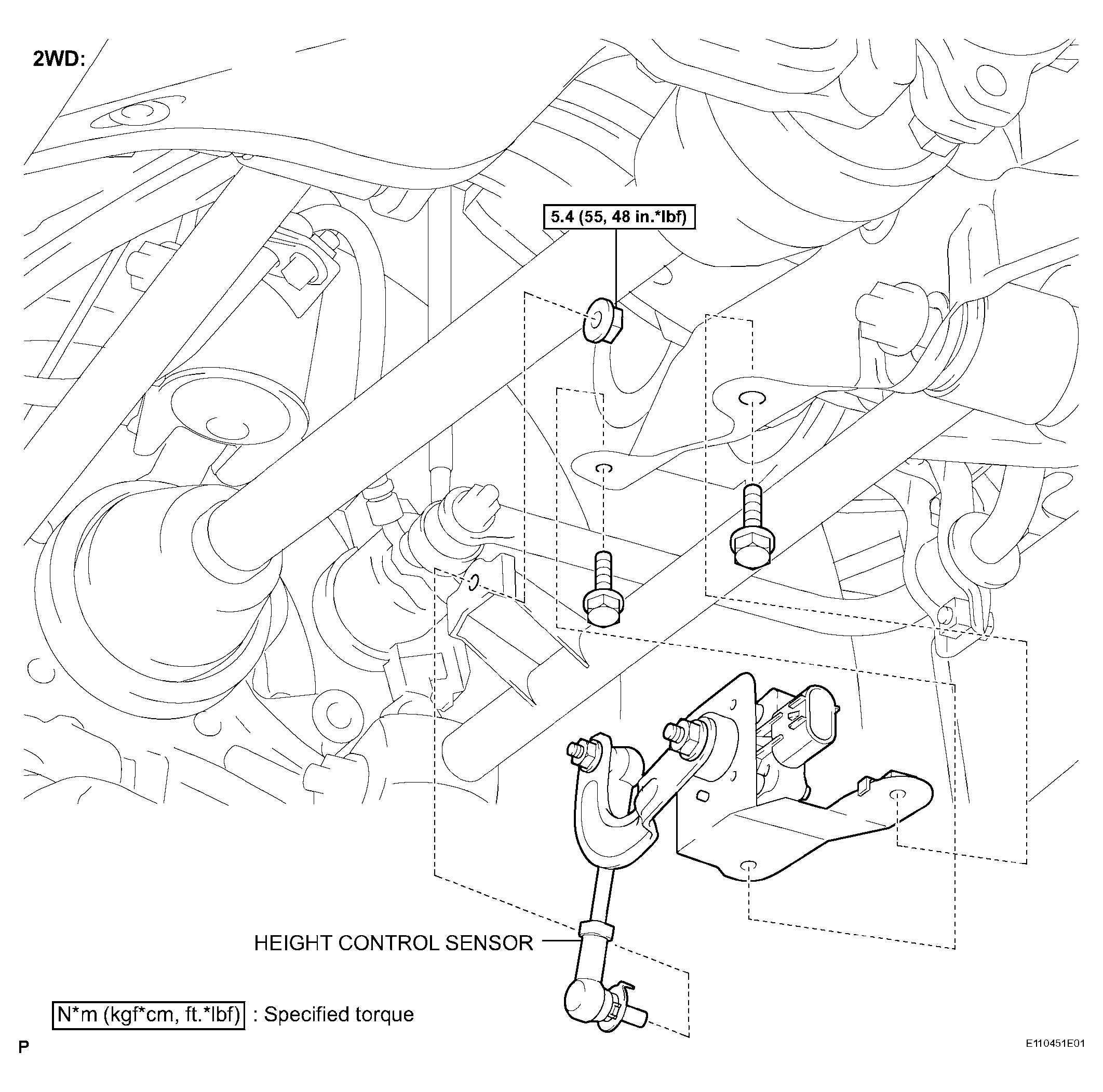

Fig 2: Height Control Sensor Replacement Components With Torque Specifications (2WD) (2 Of 2)
