DTC Check / Clear

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

DTC CHECK
1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Read DTCs by following the prompts on the tester screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
DTC CLEAR
1. DTCs can be erased by operating the intelligent tester.

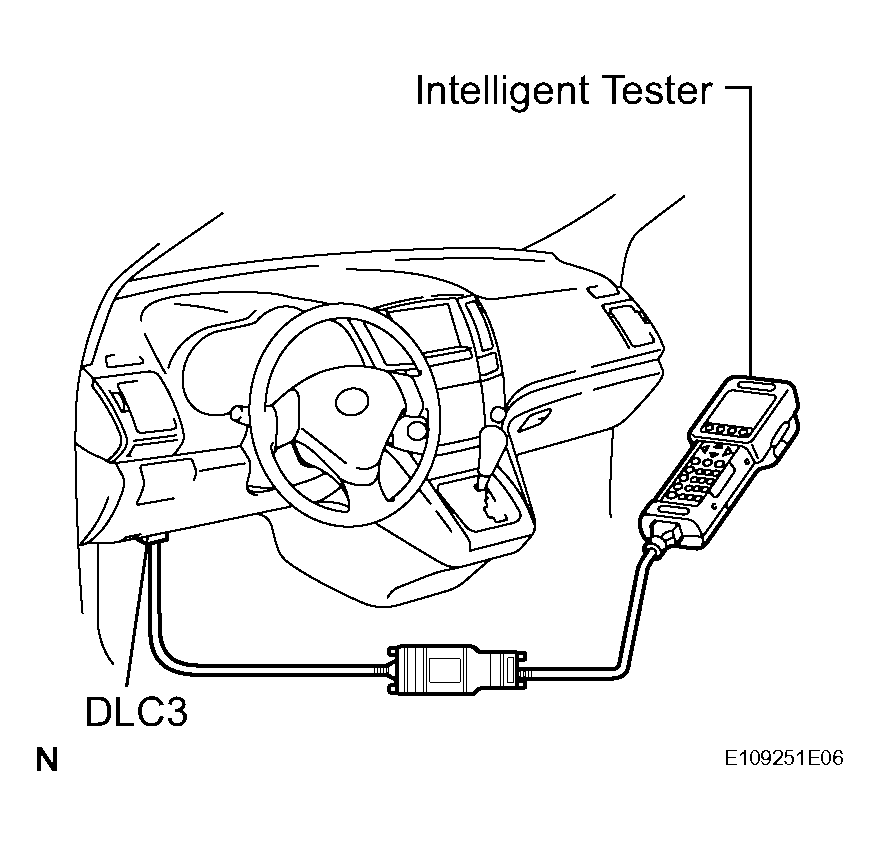

  Fig 1: Identifying Intelligent Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Refer to the intelligent tester operator's manual for further details.
