Section 36 (Air Conditioning)
›
Center Cluster Integration Switch
›
Components
Center Cluster Integration Switch: Components
WARNING:
This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

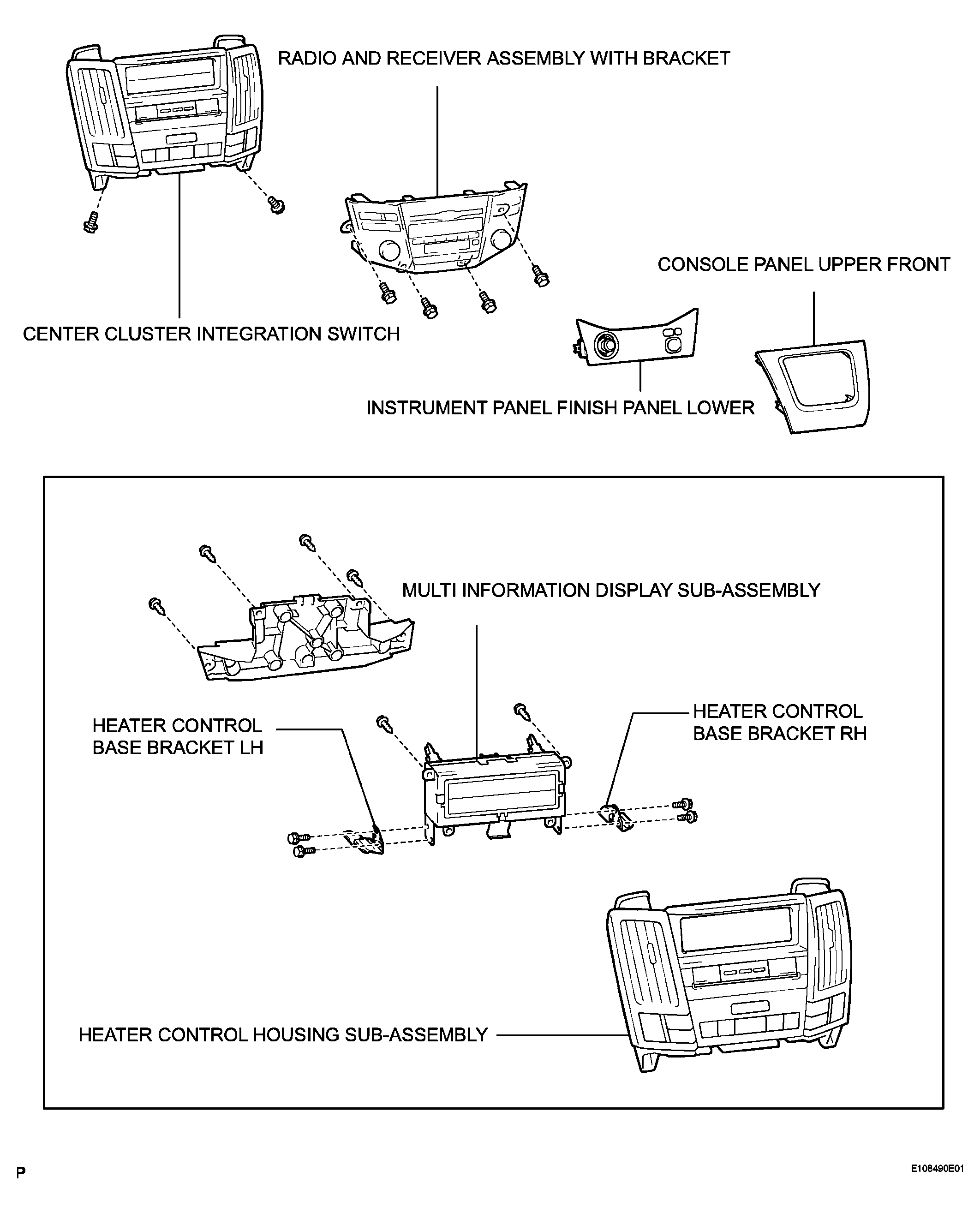

Fig 1: Identifying Center Cluster Integration Switch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
