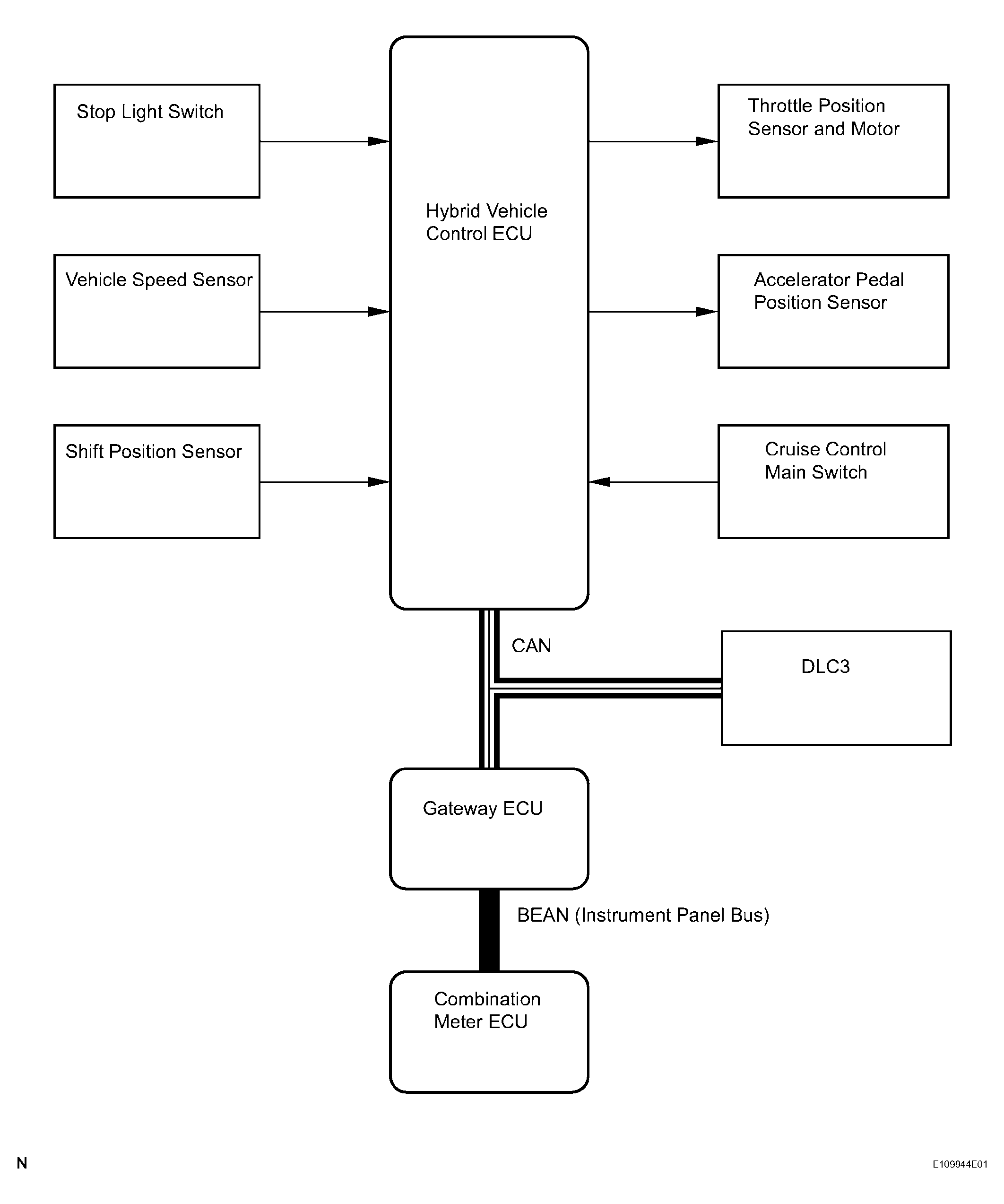

System Diagram
WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table:
COMMUNICATION TABLE
| Sender |
Receiver |
Signal |
Line |
| Hybrid Vehicle Control ECU |
Combination Meter ECU |
CRUISE indicator operation signal |
CAN BEAN (Instrument Panel Bus) |
