Parts Location

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

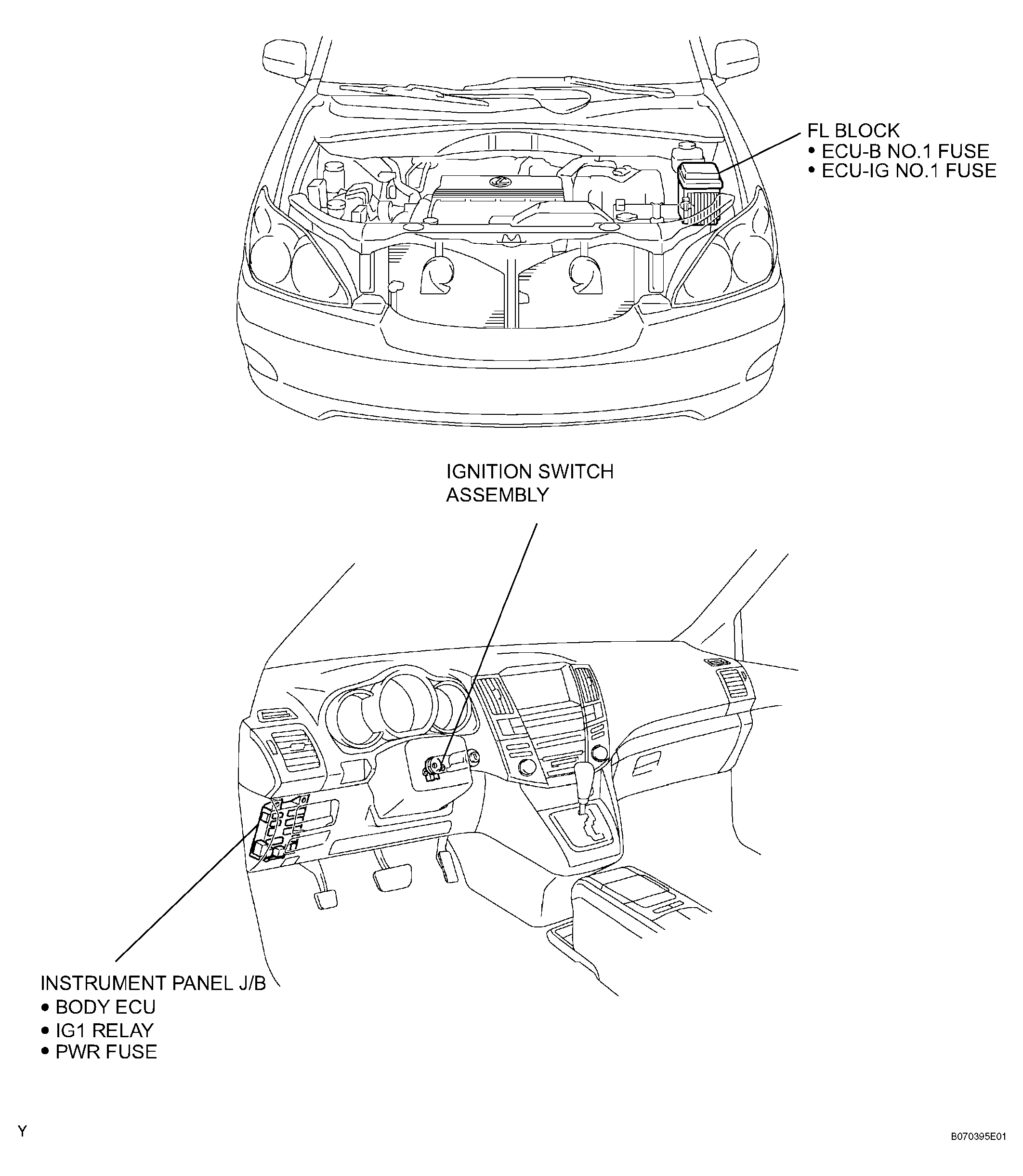

Fig 1: Identifying Power Window Control System Parts Location (1 Of 2)
G04116009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

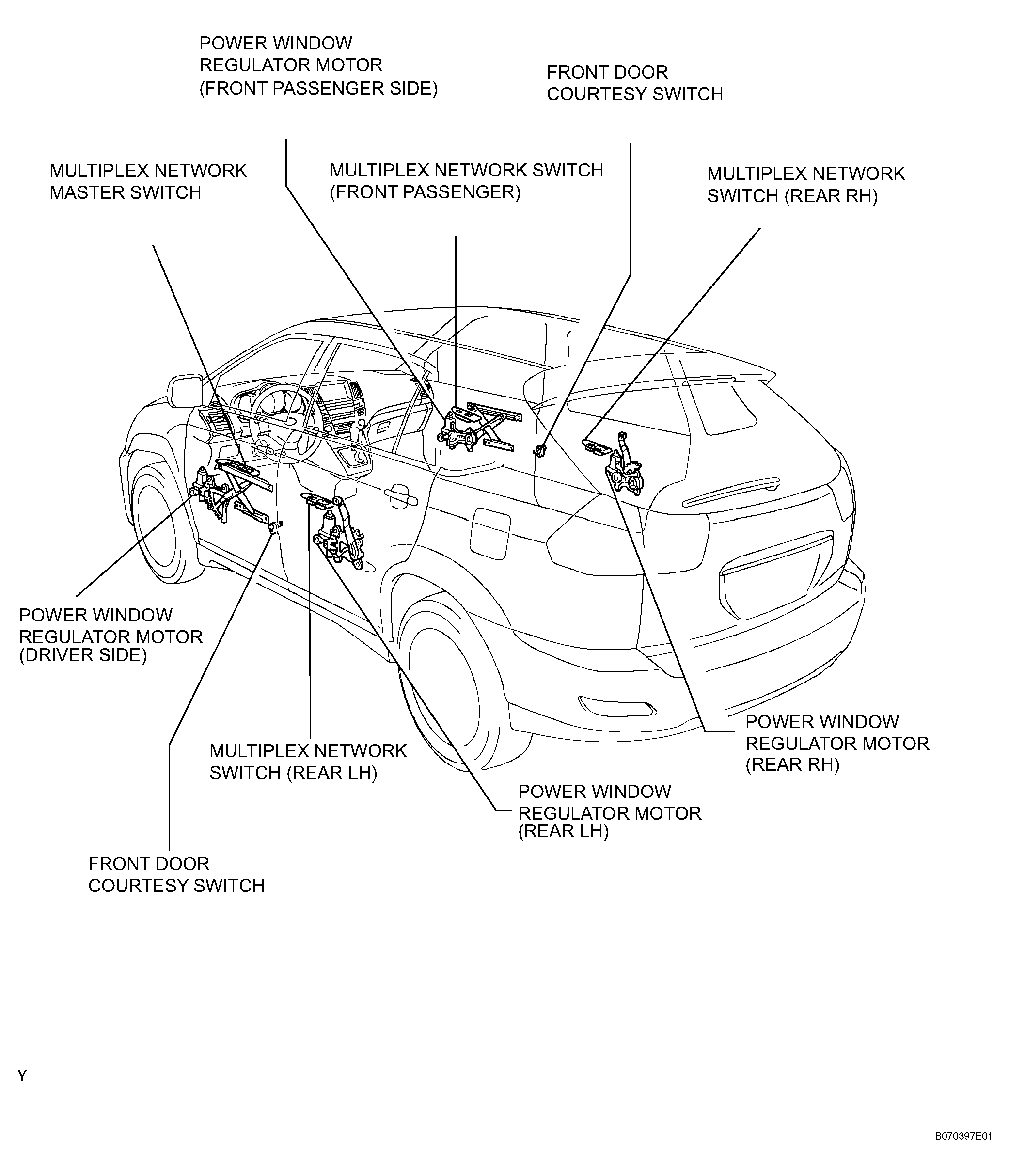

Fig 2: Identifying Power Window Control System Parts Location (2 Of 2)
G04116010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
