Multi-display Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

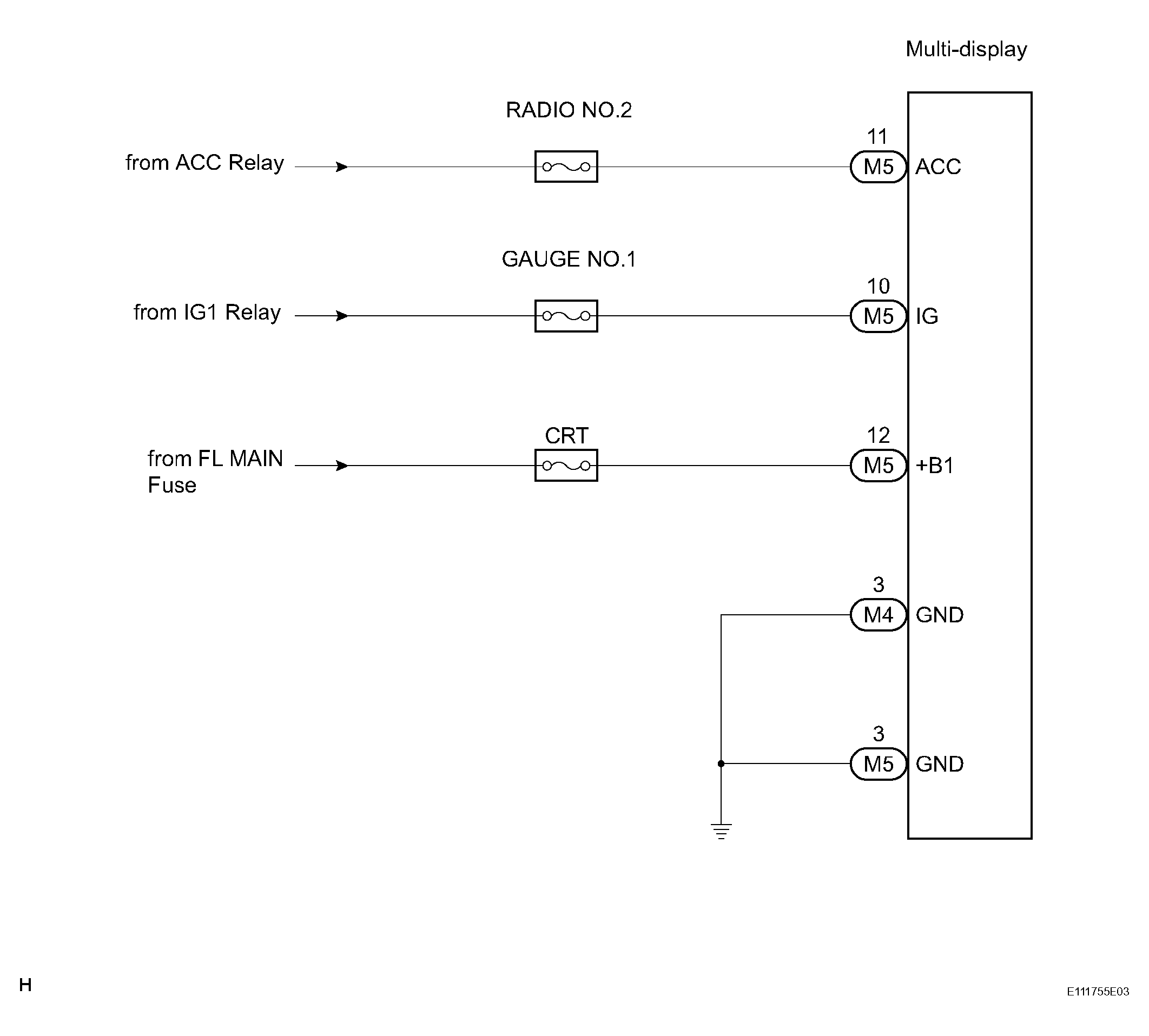

Fig 1: Multi-Display Power Source Circuit - Wiring Diagram
G04115926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. INSPECT MULTI-DISPLAY
    1. Disconnect the multi-display connectors M4 and M5.
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      CONNECTOR TERMINAL RESISTANCE SPECIFICATION

      Tester connection Condition Specified condition
      GND (M5-3) - Body ground Always Below 1 Ω
      GND (M4-3) - Body ground Always Below 1 Ω
    3. Measure the voltage according to the value(s) in the table below.

      Voltage

      ECU CONNECTOR TERMINAL VOLTAGE SPECIFICATION

      Tester connection Condition Specified condition
      +B1 - GND Always 10 to 14 V
      ACC - GND Ignition SW ACC 10 to 14 V
      IG - GND Ignition SW ON 10 to 14 V

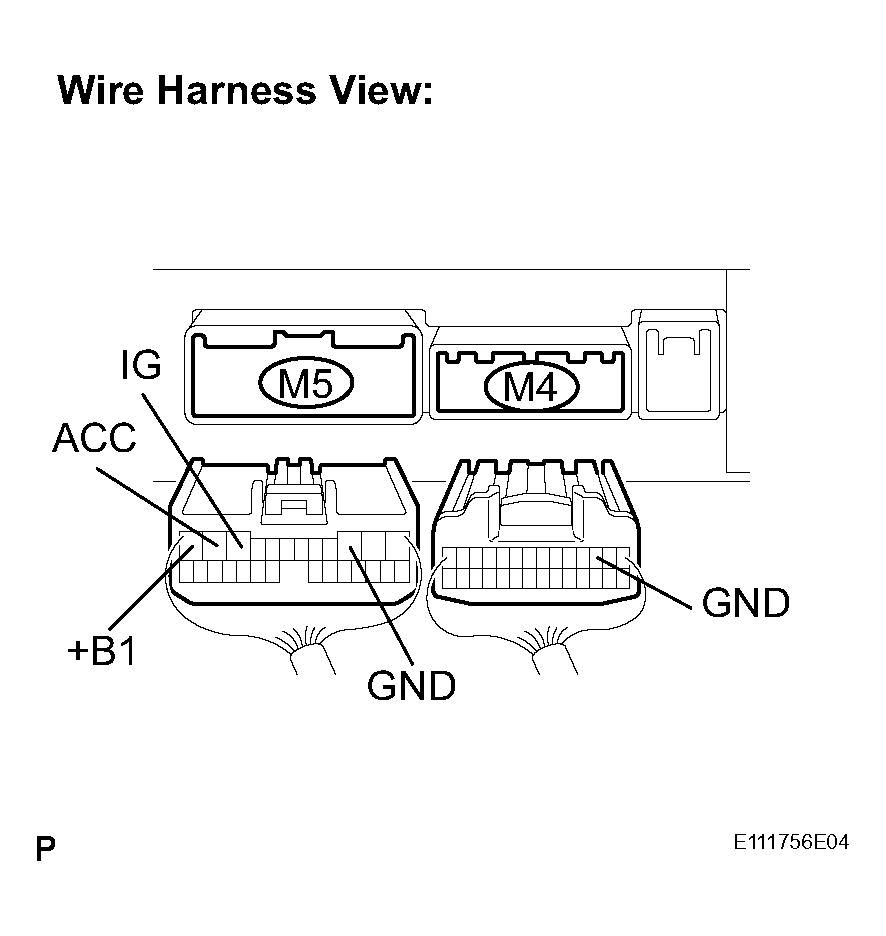

      Fig 2: Identifying Multi-Display Connectors M4 And M5
      G04115927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: RETURN TO THE ORIGINAL INSPECTION FLOW BECAUSE THE CHECK RESULT IS NORMAL
