Cruise Control Main Switch: Inspection: Inspection

WARNING: This page is about a different car, the 2010 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Remove the cruise control main switch.

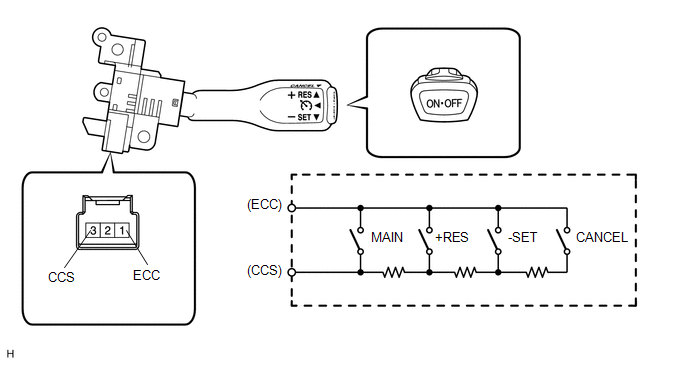

      Fig 1: Identifying Cruise Control Main Switch
      GTY221617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        1 (ECC) - 3 (CCS) Neutral 1 MΩ or higher
        1 (ECC) - 3 (CCS) +RES 235 to 245 Ω
        1 (ECC) - 3 (CCS) -SET 617 to 643 Ω
        1 (ECC) - 3 (CCS) CANCEL 1509 to 1571 Ω
        1 (ECC) - 3 (CCS) Main switch off 1 MΩ or higher
        1 (ECC) - 3 (CCS) Main switch on Below 2.5 Ω
        • If the result is not as specified, replace the cruise control main switch.
