Steering Column Assembly: Components

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

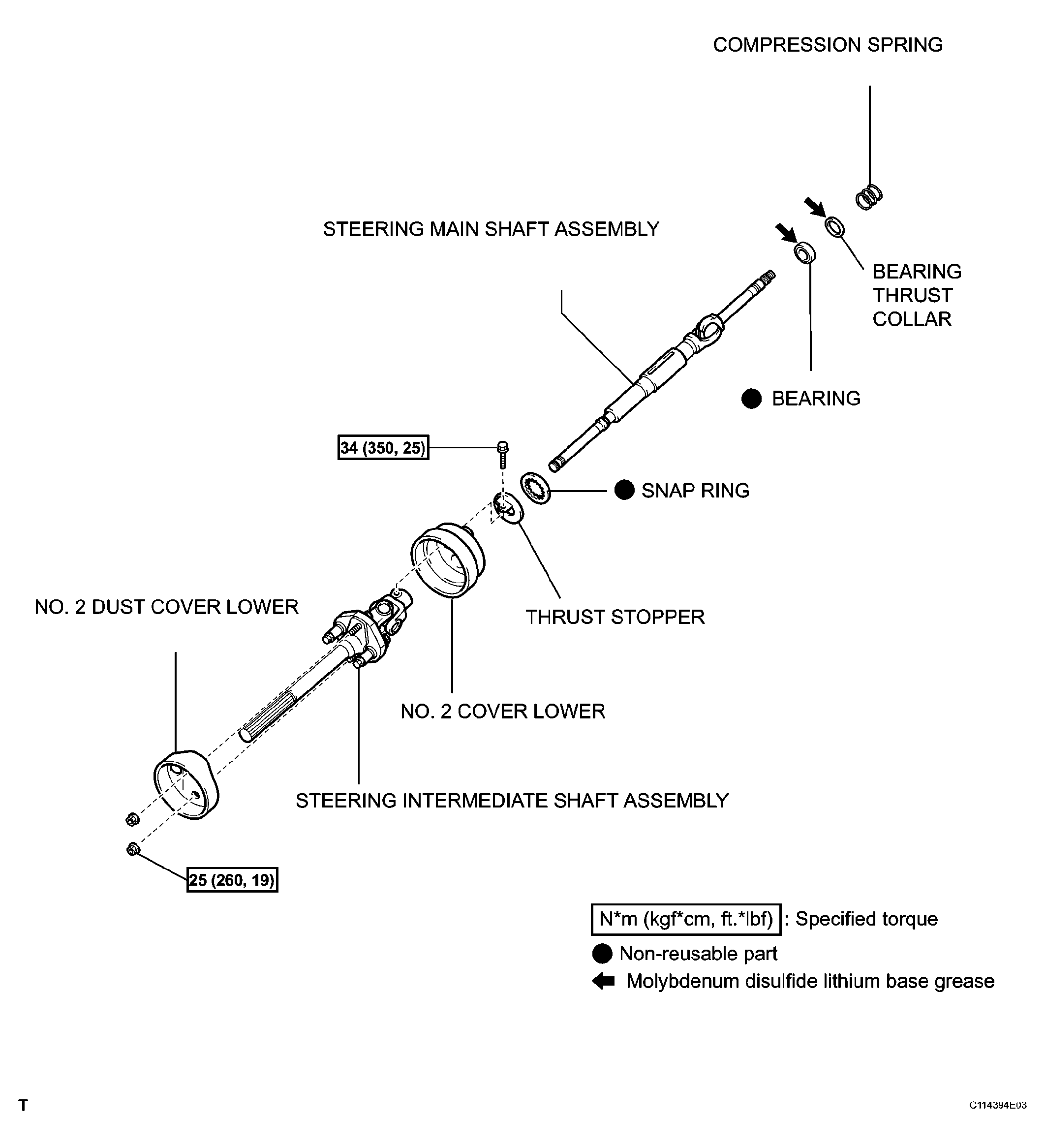

Fig 1: Steering Column Assembly Components & Torque Specification (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Steering Column Assembly Components & Torque Specification (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

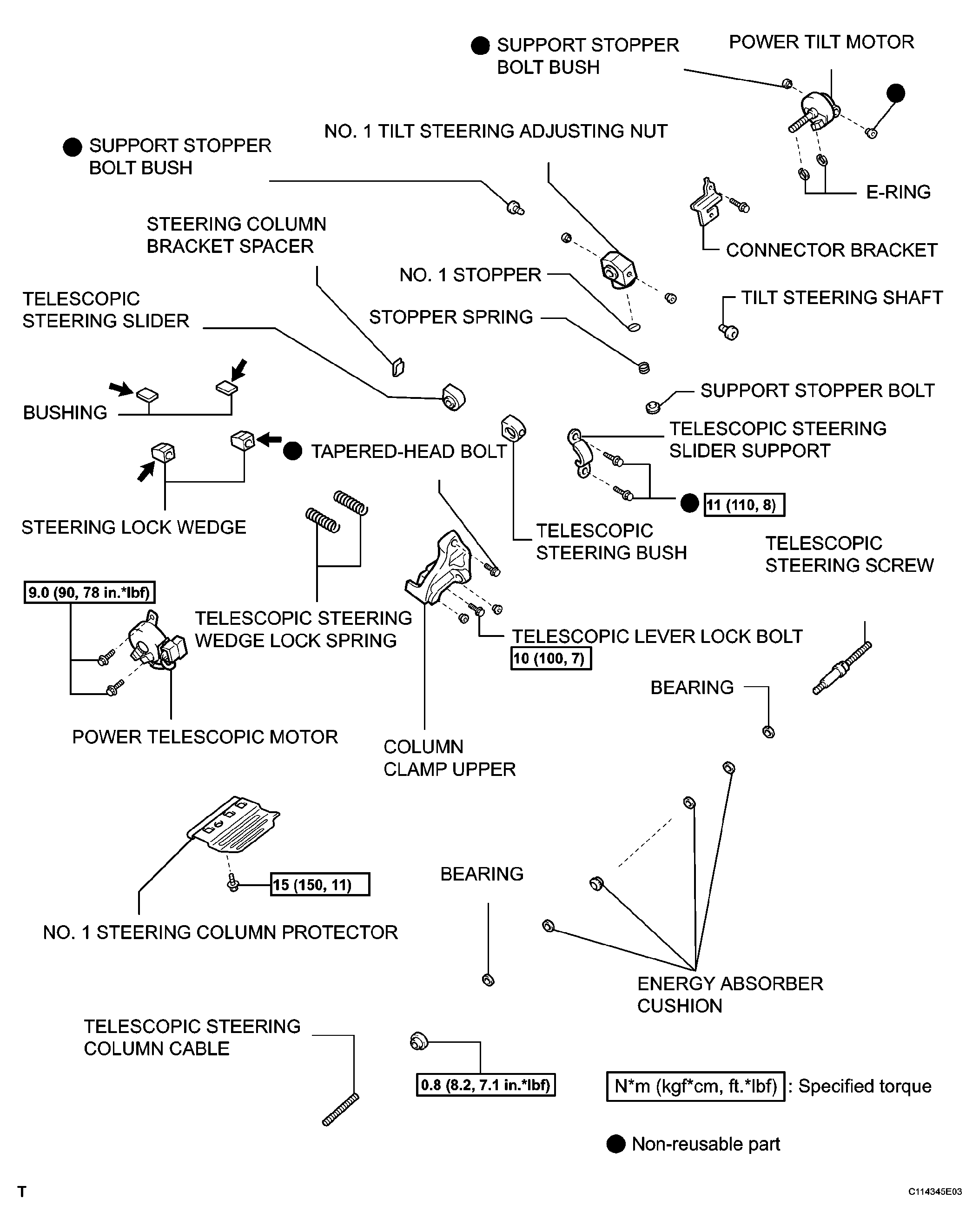

Fig 3: Steering Column Assembly Components & Torque Specification (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

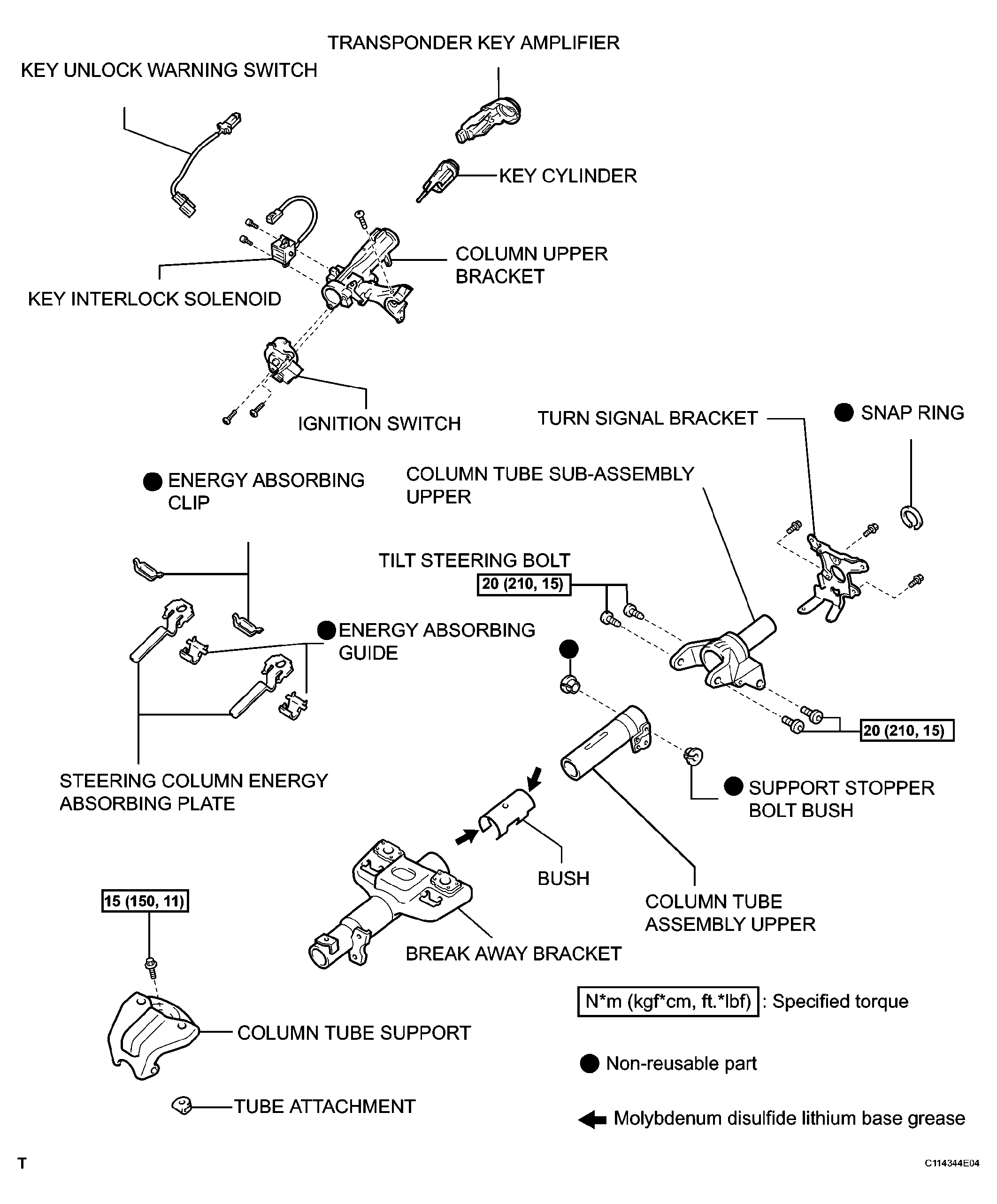

Fig 4: Steering Column Assembly Components & Torque Specification (4 Of 5)

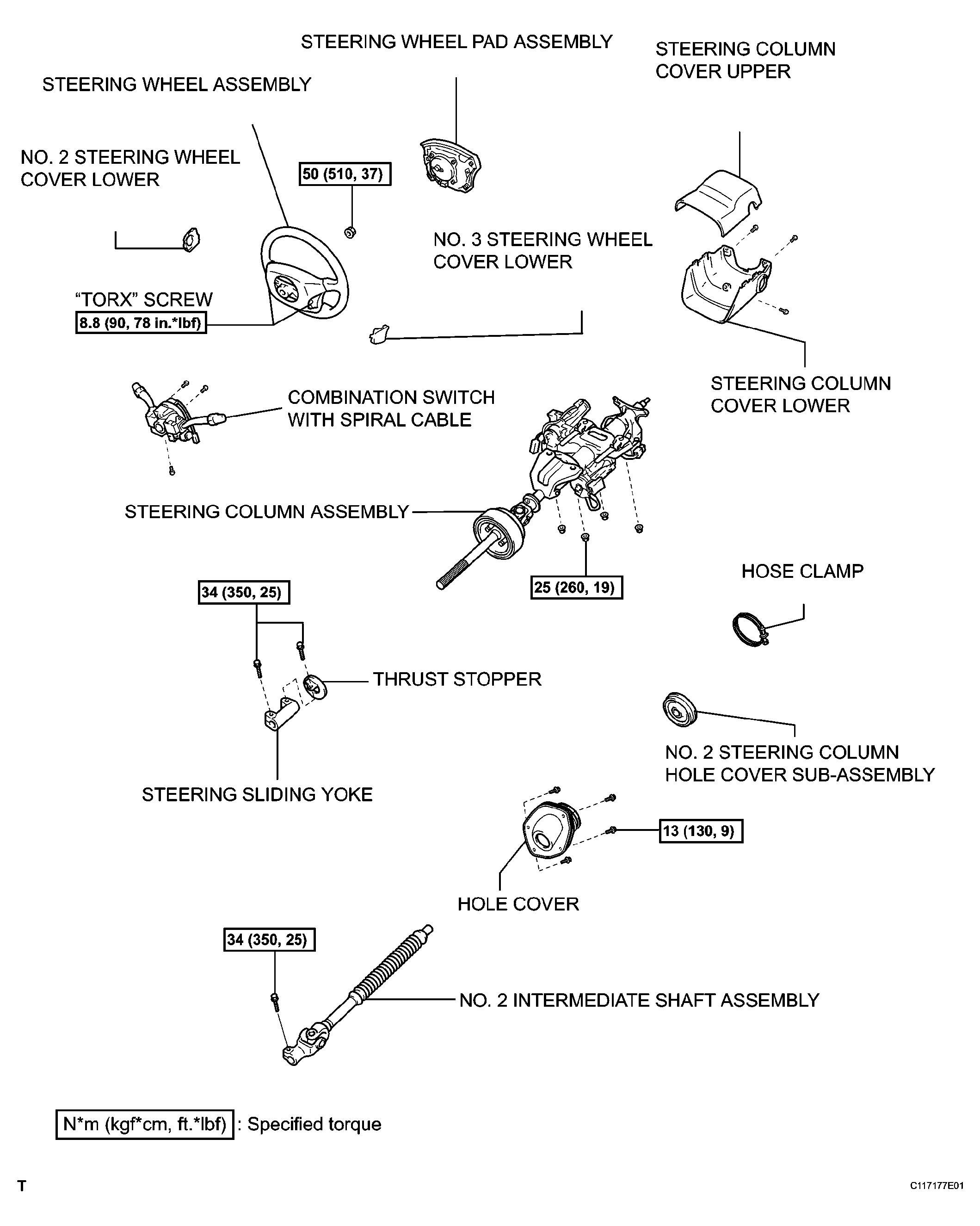

Fig 5: Steering Column Assembly Components & Torque Specification (5 Of 5)
