DTC Check/Clear

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DTC
1. Connect the intelligent tester (with CAN VIM) to the DLC3.

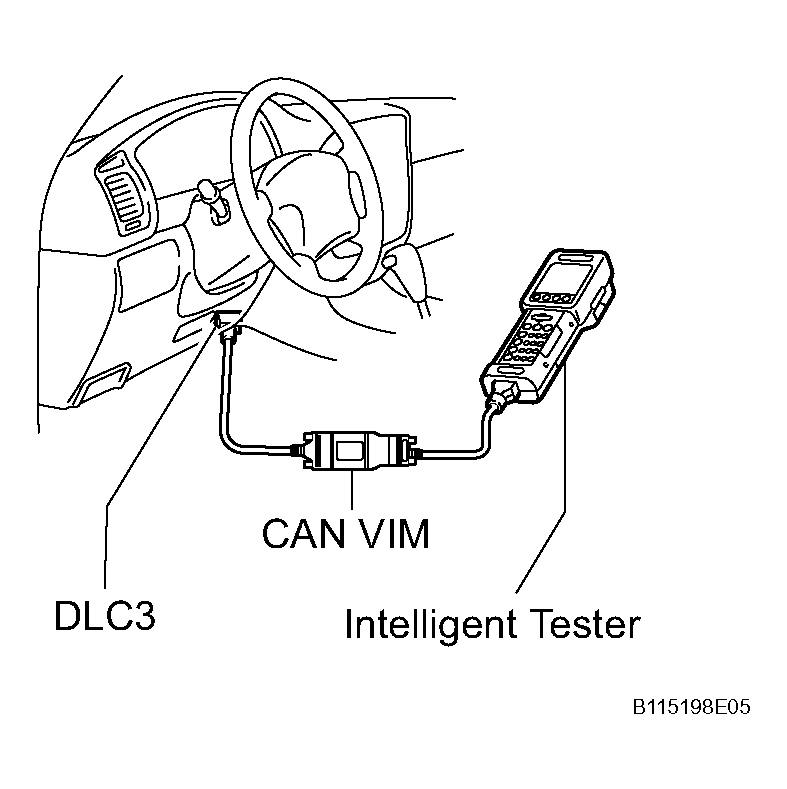

  Fig 1: Connecting Intelligent Tester (With CAN VIM) To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch ON.
3. Read the DTCs by following the directions on the tester's screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
CLEAR DTC
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Erase the DTCs by following the directions on the tester's screen.
  HINT:

  Refer to the intelligent tester operator's manual for further details.
