Multiplex Communication System - AVC-LAN
›
Notes
Multiplex Communication System - AVC-LAN: Notes

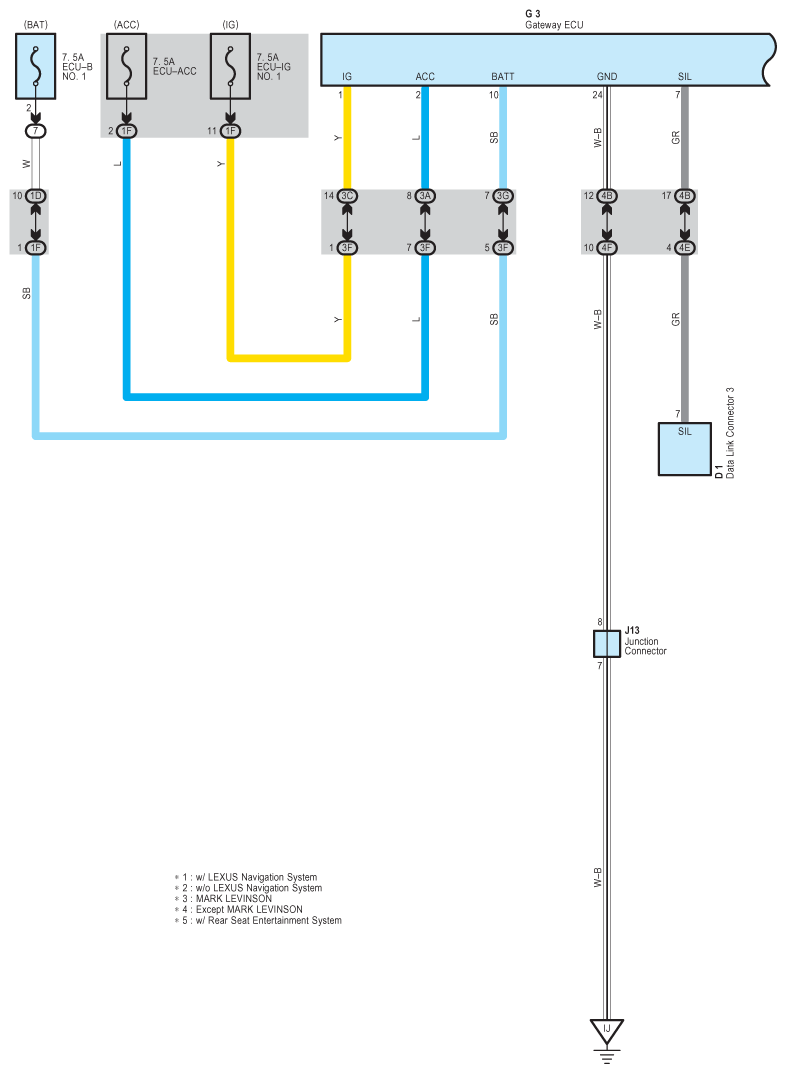

Fig 1: Multiplex Communication System - AVC-Lan - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

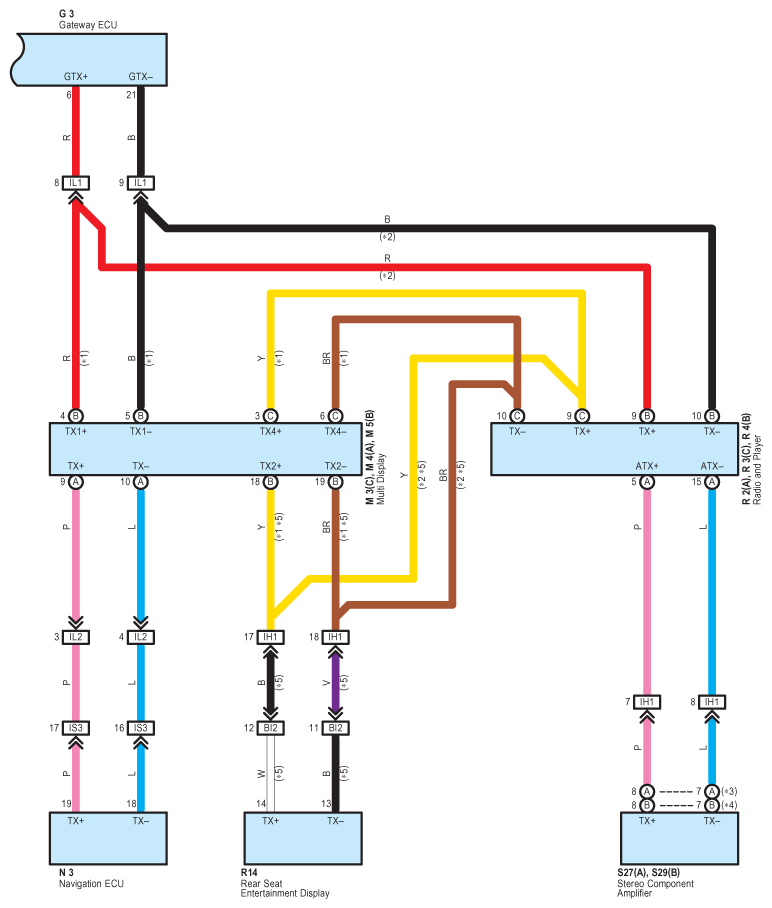

Fig 2: Multiplex Communication System - AVC-Lan - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
