Multiplex Communication System - CAN: Notes

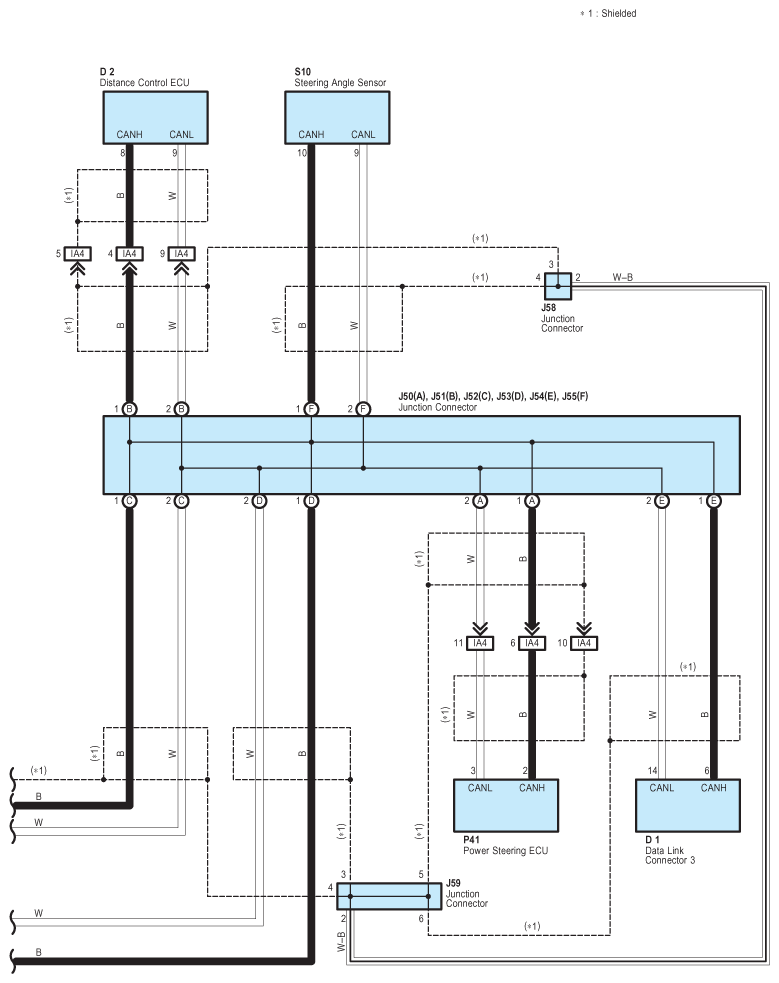

Fig 1: Multiplex Communication System - CAN - Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

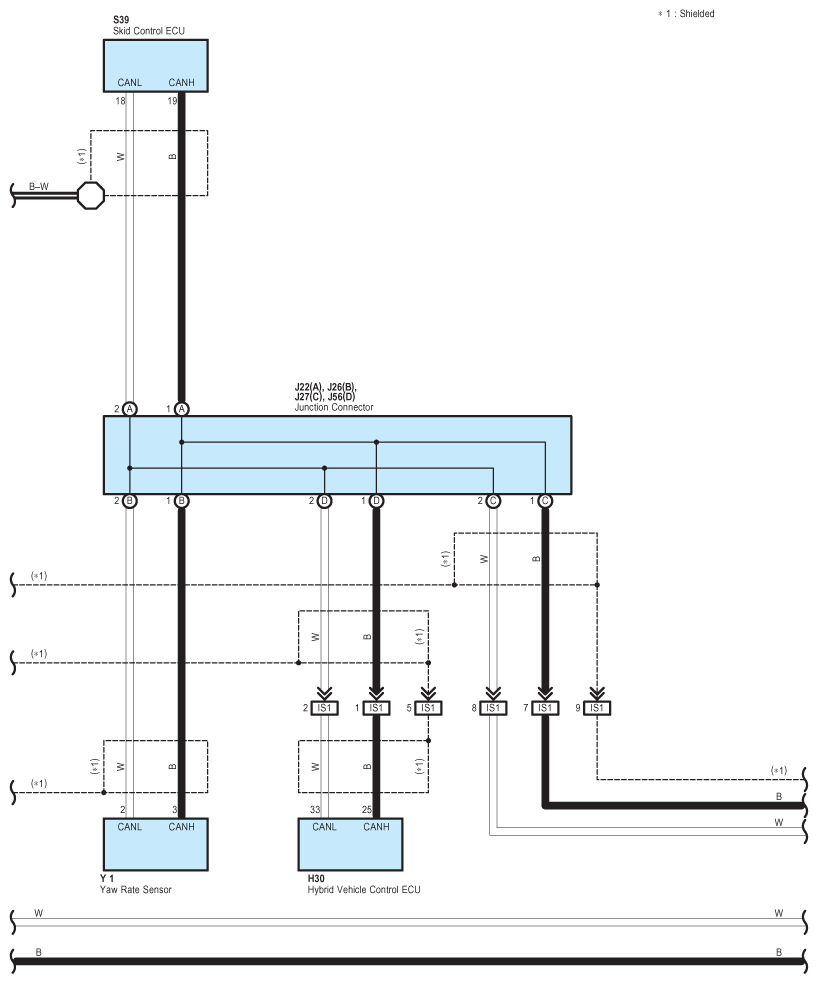

Fig 2: Multiplex Communication System - CAN - Wiring Diagram (2 Of 3)

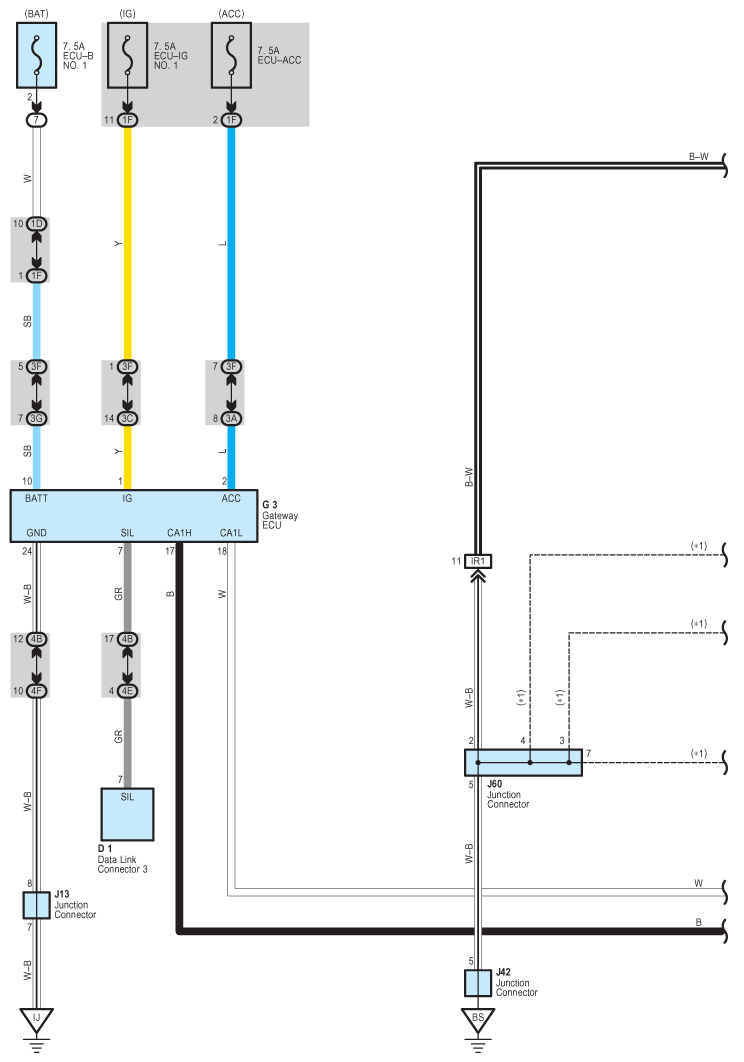

Fig 3: Multiplex Communication System - CAN - Wiring Diagram (3 Of 3)
