Stop Light: Notes

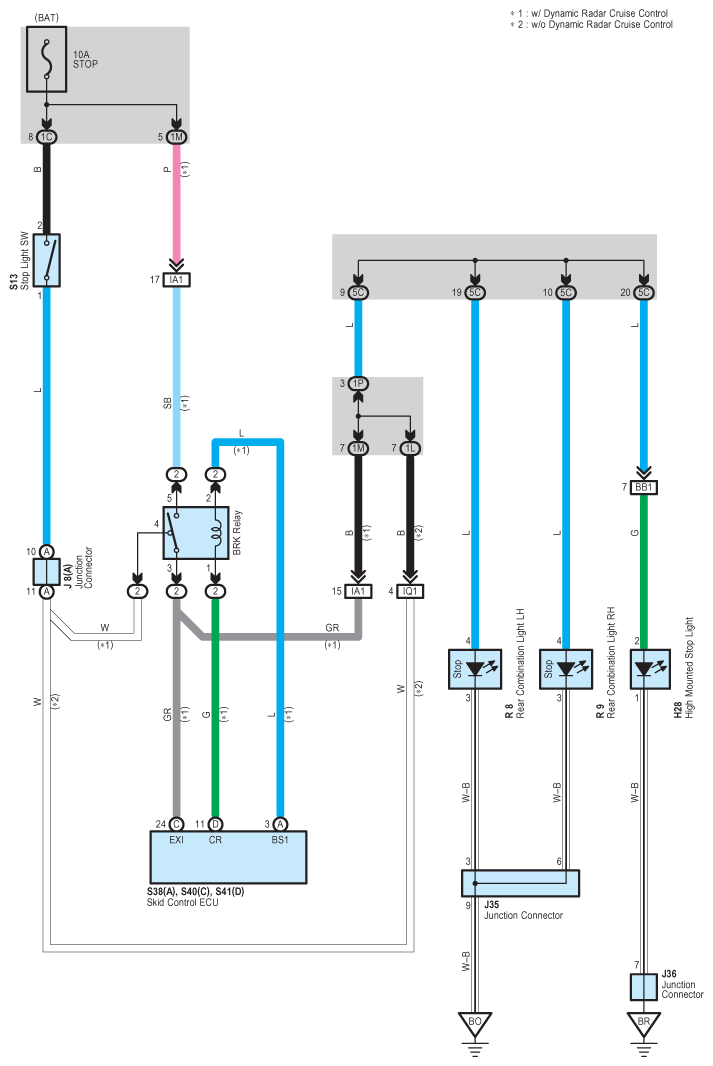

Fig 1: Stop Light - Circuit Diagram

G08932967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
