System Diagram

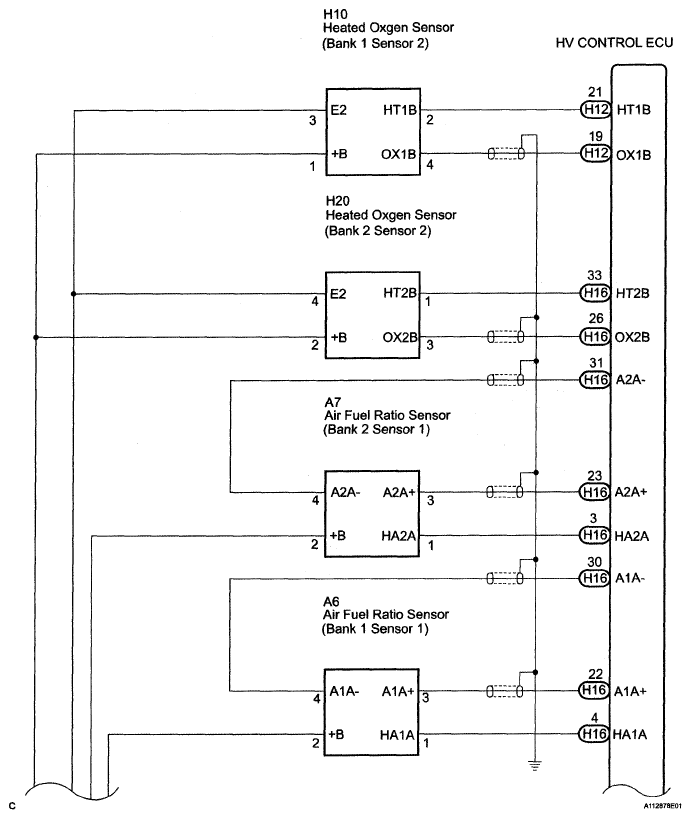

Fig 1: Emission Control System Diagram (1 Of 5)
G05200937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

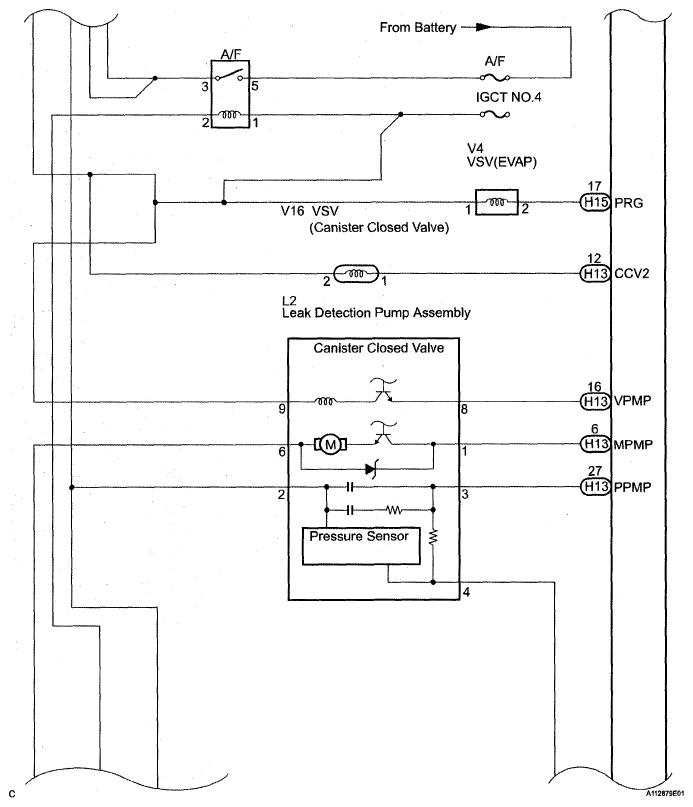

Fig 2: Emission Control System Diagram (2 Of 5)
G05200938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

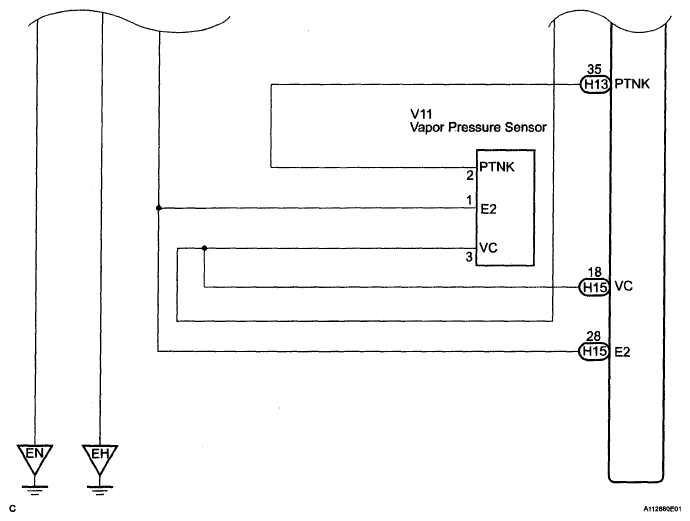

Fig 3: Emission Control System Diagram (3 Of 5)
G05200939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

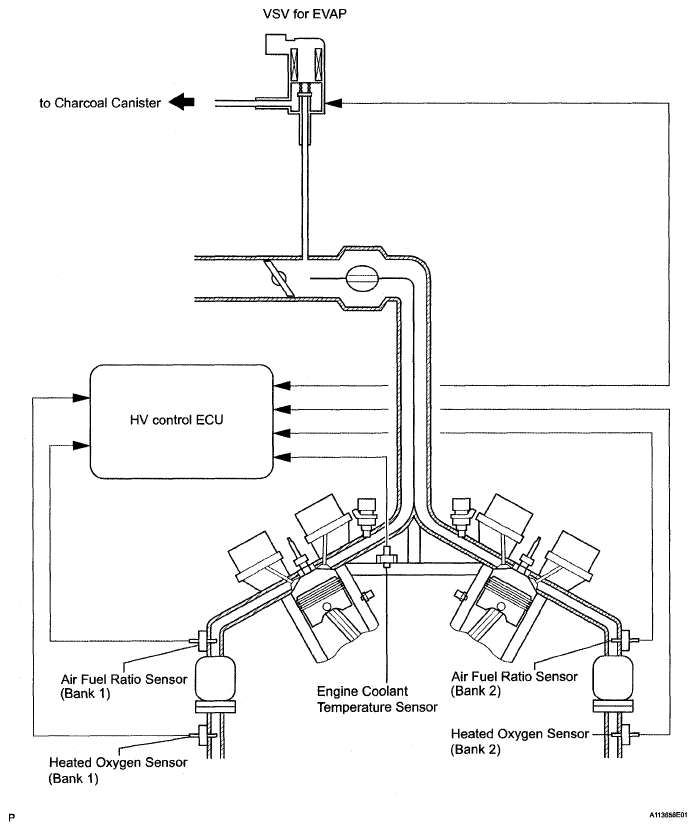

Fig 4: Emission Control System Diagram (4 Of 5)
G05200940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

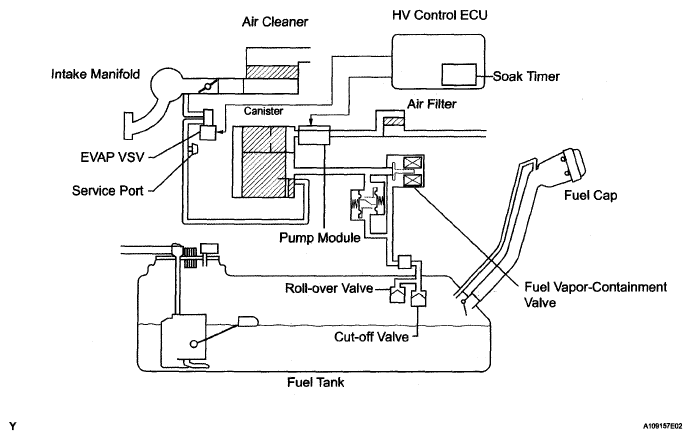

Fig 5: Emission Control System Diagram (5 Of 5)
G05200941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
