VC Output Circuit: Wiring Diagram

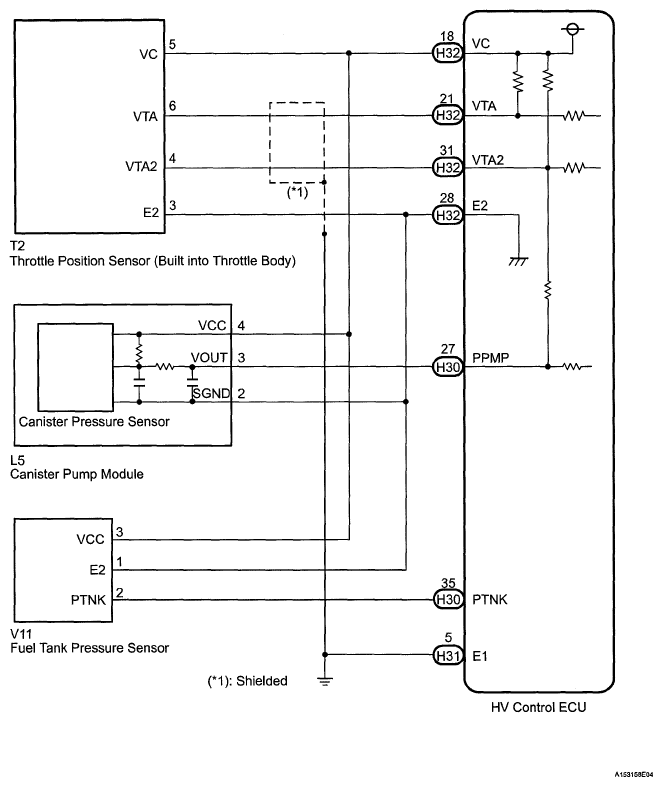

Fig 1: VC Output - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
