Turn Signal Light Switch: Inspection
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

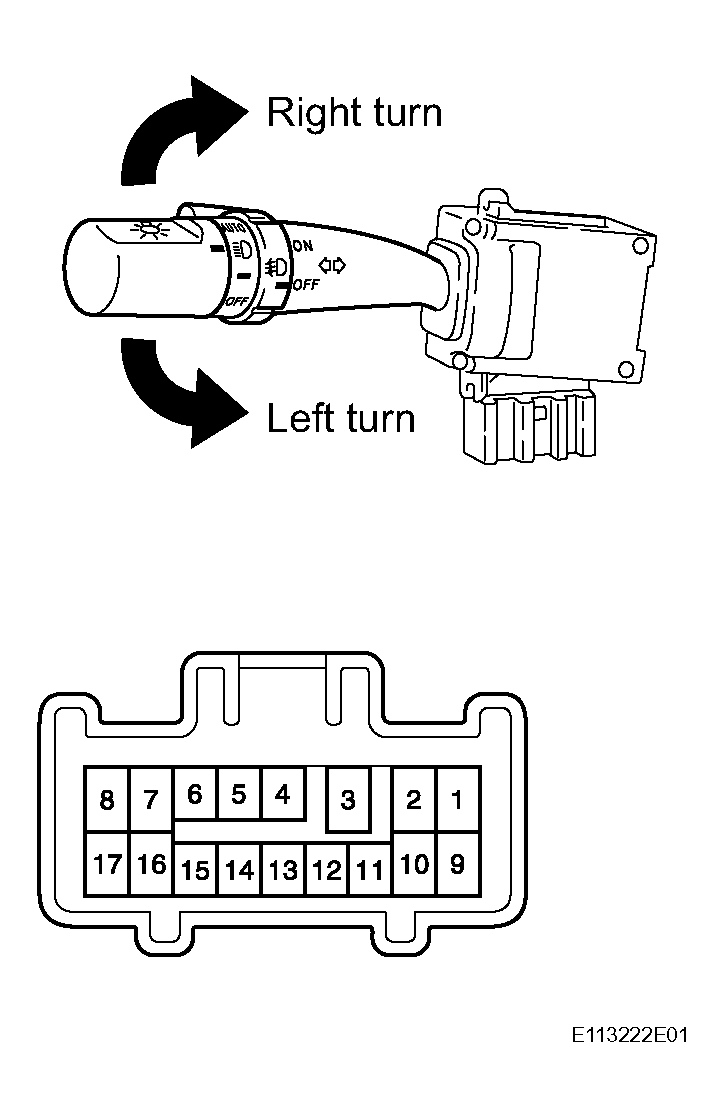

- INSPECT TURN SIGNAL SWITCH
- Measure the continuity of the switch.
OK
TESTER CONNECTION AND SPECIFIED CONDITION TABLE
| Tester Connection |
Condition |
Specified Condition |
| 7 - 8 |
Left turn |
Continuity |
| 6 - 7 |
Right turn |
| - |
Neutral |
No continuity |
If the result is not as specified, replace the headlight dimmer switch assembly.
