Inspection Procedure
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- READ VALUE OF INTELLIGENT TESTER (DOOR COURTESY LIGHT SWITCH)
- Connect the intelligent tester (with CAN VIM) to the DLC3.
- Turn the ignition switch to the ON position and press the intelligent tester main switch ON.
- Select the items below in the DATA LIST, and read the displays on the intelligent tester.
Main body ECU
MAIN BODY ECU DATA LIST REFERENCEItem Measurement Item/Display (Range) Normal Condition Diagnostic Note D DOR CTY SW Driver's door courtesy switch signal/ON or OFF ON: Driver side door is open
OFF: Driver side door is closed- P DOR CYT SW Passenger's door courtesy switch signal/ON or OFF ON: Front passenger side door is open
OFF: Front passenger door is closed- RR DOR CTY SW Rear door courtesy switch signal/ON or OFF ON: Rear right passenger side door is open
OFF: Rear right passenger side door is closed- RL DOR CTY SW Rear door courtesy switch signal/ON or OFF ON: Rear left passenger side door is open
OFF: Rear left passenger side door is closed- BK DOR CTY SW Back door courtesy switch signal/ON or OFF ON: Back door is open
OFF: Back door is closed- OK: Condition sign can be displayed.
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG: Go TO NEXT STEP.
- INSPECT COURTESY LIGHT SWITCH
- Remove the door courtesy light switch.
- Measure the resistance of the switch.
Standard resistance:
Front LH, Front RH, Rear LH, Rear RH, Back Door
RESISTANCE SPECIFIED CONDITIONTester Connection Condition Specified Condition 1 - Body ground OFF 10 kΩ or higher ON Below 1 Ω
NG: REPLACE DOOR COURTESY LIGHT SWITCH
OK: Go TO NEXT STEP.
- CHECK WIRE HARNESS (MAIN BODY ECU - COURTESY LIGHT SWITCH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Connect the courtesy light switch.
- Disconnect the IA, IC and ID instrument panel junction block connectors.
- Disconnect the E15 main body ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance:
Front door LH

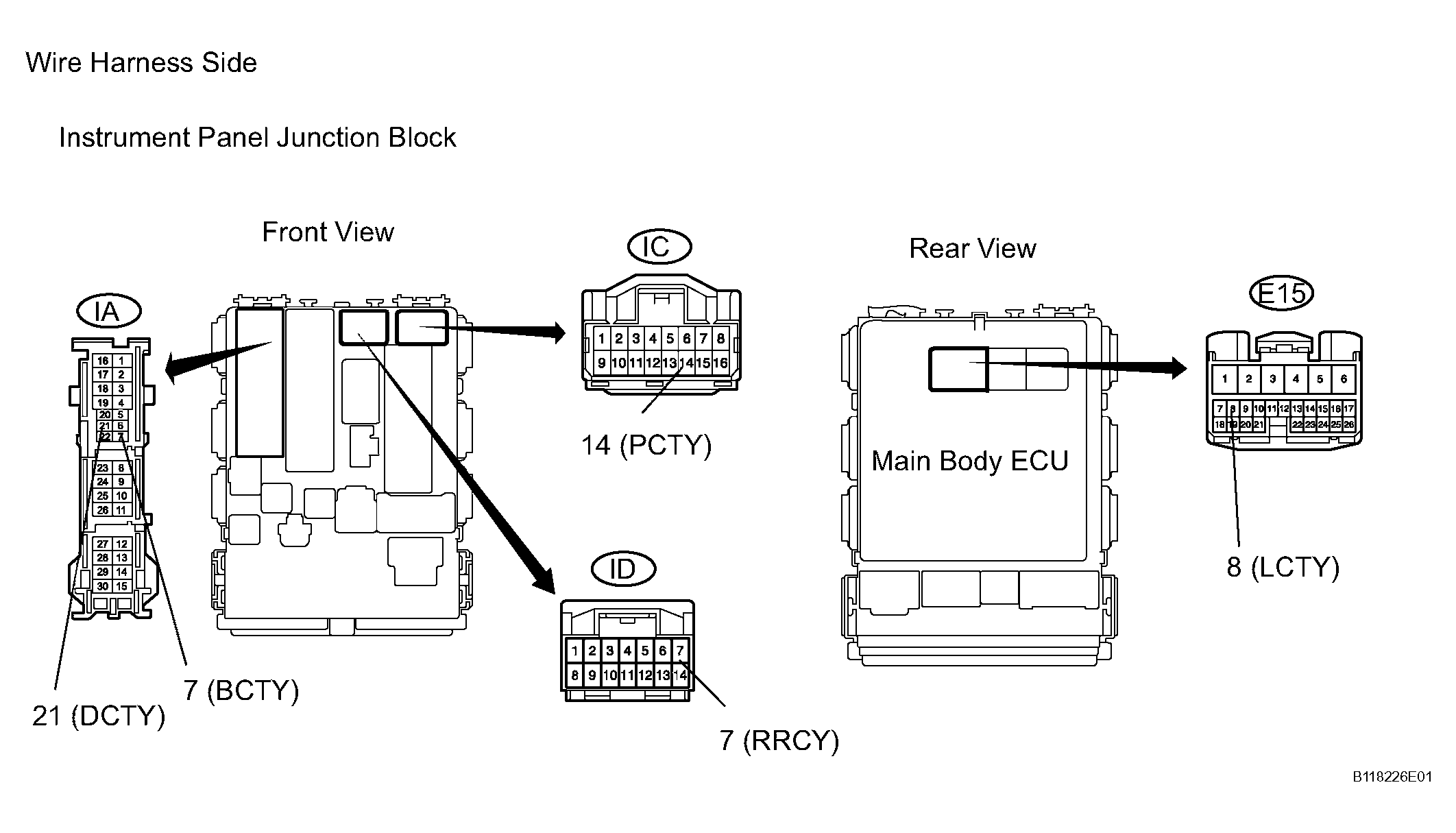

RESISTANCE SPECIFIED CONDITIONTester Connection Condition Specified Condition IA-21 (DCTY) - Body ground Front LH door is opened Below 1 Ω Front LH door is closed 10 kΩ or higher Front door RH
RESISTANCE SPECIFIED CONDITIONTester Connection Condition Specified Condition IC-14 (PCTY) - Body ground Front RH door is opened Below 1 Ω Front RH door is closed 10 kΩ or higher Rear door RH
RESISTANCE SPECIFIED CONDITIONTester Connection Condition Specified Condition ID-7 (RRCY) - Body ground Rear RH door is opened Below 1 Ω Rear RH door is closed 10 kΩ or higher Rear door LH
RESISTANCE SPECIFIED CONDITIONTester Connection Condition Specified Condition E15-8 (LCTY) - Body ground Rear LH door is opened Below 1 Ω Rear LH door is closed 10 kΩ or higher Back door
RESISTANCE SPECIFIED CONDITIONTester Connection Condition Specified Condition IA-7 (BCTY) - Body ground Back door is opened Below 1 Ω Back door is closed 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)
