Section 252 (Engine Cooling System): Radiator: Installation

1. Install the radiator drain cock onto the radiator assembly.
   Fig 1: Installing Radiator Drain Cock

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 radiator reserve tank hose grommets onto the radiator assembly.
   Fig 2: Locating Radiator Reserve Tank Hose Grommets

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 radiator support cushions onto the radiator assembly.
   Fig 3: Locating Radiator Support Cushions

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and install the fan shroud.
   Fig 4: Locating Fan Shroud Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the oil cooler inlet hose with the clip.
   Fig 5: Locating Cooler Inlet Hose Clip (For Automatic Transaxle)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the oil cooler outlet hose with the clip.
   Fig 6: Locating Cooler Outlet Hose Clip (For Automatic Transaxle)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install radiator hose No. 2 with the clip.
   Fig 7: Locating Radiator Hose No. 2 Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and install the radiator assembly into the vehicle.
   NOTE: Do not apply excessive force to the cooler condenser assembly or piping when installing the radiator assembly.
   Fig 8: Identifying Radiator Assembly Claws (W/Air Conditioning System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the cooling fan motor connector and wire harness clamps.
   Fig 9: Locating Cooling Fan Motor Connector & Wire Harness Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the radiator assembly into the vehicle.
2. Connect the cooling fan motor connector and wire harness clamps.
   Fig 10: Locating Cooling Fan Motor Connector & Wire Harness Clamps (W/O Air Conditioning System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the oil cooler inlet hose with the clip.
   Fig 11: Locating Oil Cooler Inlet Hose (For Automatic Transaxle)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the oil cooler outlet hose with the clip.
   Fig 12: Locating Oil Cooler Outlet Hose (For Automatic Transaxle)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect radiator hose No. 2 with the clip.
   Fig 13: Locating Radiator Hose From Water Inlet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install radiator hose No. 3 with the 2 clips.
   Fig 14: Locating Radiator Hose No. 3 Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the radiator reservoir tank hose to the water filler.
   Fig 15: Locating Radiator Reservoir Tank Hose From Water Filler

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

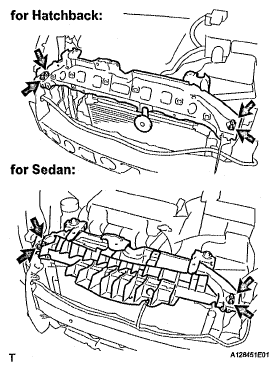

1. Install the radiator support sub-assembly upper with the 4 bolts.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

2. Connect the horn assembly connector.
   Fig 16: Locating Radiator Support Sub-Assembly Upper Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Temporarily install the hood lock assembly with the 3 bolts.
2. Connect the engine hood courtesy switch connector.
   Fig 17: Locating Hood Lock Assembly Bolts (W/Theft Deterrent System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the hood lock control cable assembly to the 2 clamps.
   Fig 18: Identifying Hood Lock Control Cable Assembly Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Temporarily install the hood lock assembly with the 3 bolts.
   Fig 19: Locating Hood Lock Assembly Bolts (W/O Theft Deterrent System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the hood lock control cable assembly to the 2 clamps.
   Fig 20: Identifying Hood Lock Control Cable Assembly Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Insert the 2 pins of No. 1 cooler cover into the radiator support LWR.
2. Install No. 1 cooler cover with the 2 clips.
   Fig 21: Locating No. 1 Cooler Cover Clips (W/No. 1 Cooler Cover)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 6 claws and install the radiator support absorber upper.
   Fig 22: Identifying Radiator Support Absorber Upper Claws (For Hatchback)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the air cleaner case with air cleaner inlet No. 1 with the 2 bolts.

   Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

2. Connect the wire harness to the air cleaner case.
3. Install the air cleaner element.
   Fig 23: Locating Air Cleaner Hose Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install and lock the air cleaner cap and air cleaner hose and then tighten the air cleaner hose clamp.

   Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

5. Connect the ventilation hose to the air cleaner hose.
6. Connect the vacuum switching valve connector and wire harness clamp.
7. Connect the fuel vapor feed hose and fuel vapor feed hose No. 1 to the vacuum switching valve assembly.
8. Connect the intake air flow meter connector and wire harness clamp.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

Fig 24: Locating Intake Air Flow Meter Connector & Wire Harness Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Loosen the 3 bolts.
2. Adjust the hood lock position so that the striker can enter it smoothly.
3. Tighten the 3 bolts after the adjustment.

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

   Fig 25: Locating Hood Lock Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
